High Strength 7075 T6 Forged Cone Aluminum Forging Parts

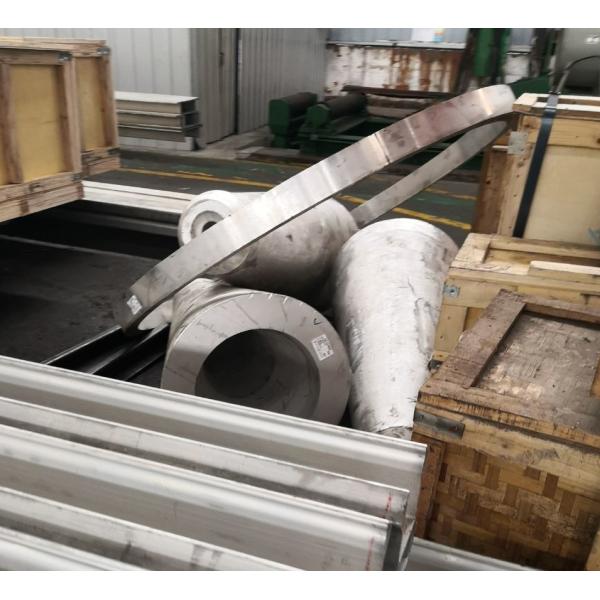

7075 aluminum forged cone parts

7075 aluminum alloy is a cold-treated forging alloy with high strength, far better than mild steel. 7075 is one of the most powerful alloys commercially available. Common corrosion resistance, good mechanical properties and anode reaction. The finer grains make the deep drilling performance better, the tool wear resistance is enhanced, and the thread rolling is more distinctive. Zinc is the main alloying element in 7075. Adding magnesium to alloys containing 3%-7.5% zinc can form MgZn2 with a significant strengthening effect, making the alloy's heat treatment effect far better than aluminum-zinc binary alloys. Increasing the zinc and magnesium content in the alloy will further improve the tensile strength, but its resistance to stress corrosion and spalling corrosion will decrease. After heat treatment, it can reach very high strength characteristics. 7075 materials are generally added with a small amount of copper, chromium and other alloys. Among the series, 7075-T651 aluminum alloy is particularly top-grade, and it is known as the best product among aluminum alloys, with high strength and far better than any mild steel. This alloy also has good mechanical properties and anodic reaction. Representative uses include aerospace, mold processing, mechanical equipment, tooling and fixtures, especially for the manufacture of aircraft structures and other high-stress structures that require high strength and strong corrosion resistance.

Physical properties
Tensile strength: 524Mpa
0.2% yield strength: 455Mpa
Elastic modulus E: 71GPa
Hardness: 150HB
Density: 2.81g/cm^3

Features
1. High-strength heat-treatable alloy.
2. Good mechanical properties.
3. Good usability.
4. Easy to process and good wear resistance.
5. Good corrosion resistance and oxidation resistance.

Specifications On 7075 T6 Aluminum Forged Cone

Diameter Range: 55mm Through 338mm

Wall Thickness Range: 35mm Through 89mm

Application: Missle Heads

Shape: Cone
