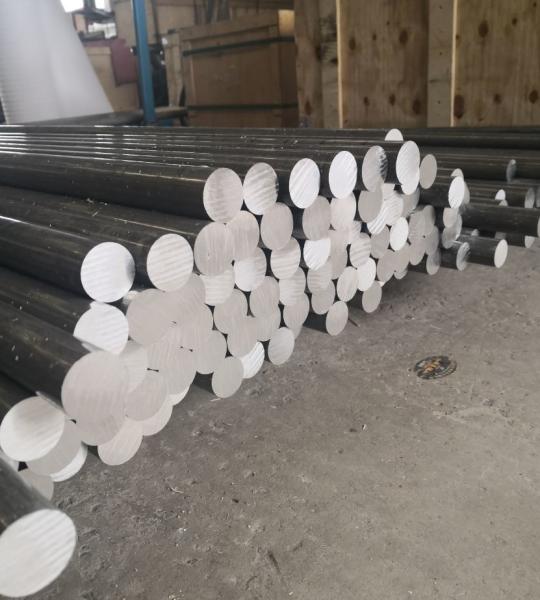

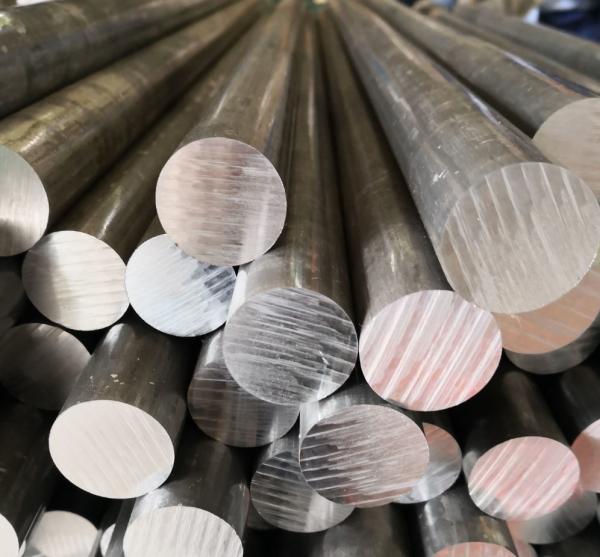

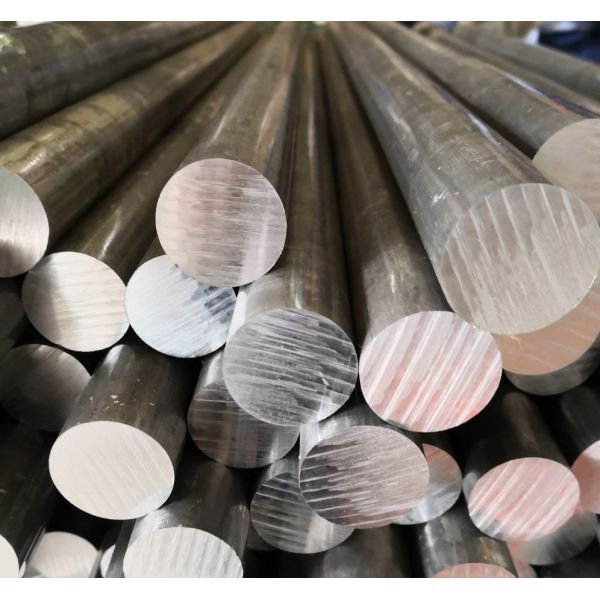

Marine Application Anti-Corrossion 5052 Aluminum Solid Round Bar

Introduction

5052 aluminum rod possesses high plasticity and corrosion resistance.

It can not be strengthened by heat treatment, but it has good plasticity during semi-cold work hardening, low plasticity during cold work hardening, good corrosion resistance, good weldability, poor machinability, polishing .

Good corrosion resistance, good forming process, and medium strength 5052 belongs to the Al-Mg series alloy and has a wide range of applications. Especially the construction industry cannot do without this alloy. It is a promising alloy. Good corrosion resistance, excellent performance, good cold workability, and medium strength. The main alloying element of 5052 is magnesium, which has good forming performance, corrosion resistance and medium strength. It is used to manufacture aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, meters, street lamp brackets and rivets, hardware products, Electric-device housing, etc. ② AL-Mn series alloy is a kind of rust-proof aluminum widely used.

This alloy has high strength, especially strength: plasticity and corrosion resistance are high, and cannot be strengthened by heat treatment. The plasticity is good when hardened by cold work. Low plasticity when hardened, good corrosion resistance, machinability, and polishing. Uses are mainly used for low-load parts that require high plasticity and work well in liquid or gaseous media, such as fuel tanks, gasoline or lubricating oil pipes, various liquid containers and other low-load parts made by deep drawing: wire is used for making rivet.

Chemical Composition
Silicon Si: 0.25;
Copper Cu: 0.10 ;
Magnesium Mg: 2.2～2.8;
Zinc Zn: 0.10;
Manganese Mn: 0.10;
Chromium Cr: 0.15～0.35;
Iron Fe: 0.4

Aluminum Al: the Balance

Mechanical properties
Tensile strength (σb): 170～305MPa
Conditional yield strength σ0.2 (MPa)≥65
Elastic modulus (E): 69.3～70.7Gpa
The annealing temperature is: 345°C.

Surface quality requirements
1. Cracks, corrosion spots and traces of nitrate are not allowed on the surface.
2. The surface is allowed to have peeling, bubbles, surface roughness and local mechanical damage whose depth does not exceed 8% of the nominal wall thickness of the part where the defect is located, but the maximum depth of the defect cannot exceed 0.5mm, and the total area of the defect does not exceed 5% of the total area of the plate.
3. Allow the supplier to polish the profile longitudinally to a smooth surface.
4. Other requirements: The demand side and the supplier shall draw up by themselves.

Welding electrode model
5052 aluminum rod can be welded with ER5356 electrode, which can meet the mechanical properties of 5052 aluminum rod after welding. Chemical composition of 5356: Si: 0.25; Fe: 0.40; Cu: 0.10; Mn: 0.05-0.20; Mg: 4.5-5.6; Cu: 0.02--0.20; Zn: 0.10-0.20; Ti: 0.06--0.20; Al : Margin; 5336 contains higher magnesium content.
