Mill Finish 2024 T4 Aluminum Forged Discs Fatigue Resistance
Mill Finish 2024 T4 Aluminum Forged Discs Fatigue Resistance
Mill Finish 2024 T4 Aluminum Forged Discs Fatigue Resistance
Mill Finish 2024 T4 Aluminum Forged Discs Fatigue Resistance
Mill Finish 2024 T4 Aluminum Forged Discs Fatigue Resistance
Mill Finish 2024 T4 Aluminum Forged Discs Fatigue Resistance
Specifications
Brand Name :
HUANYU
Model Number :
HYFD2024
Place of Origin :
CHINA
MOQ :
1 METRIC TON
Payment Terms :
T/T
Supply Ability :
38 METRIC TONS PER MONTH
Delivery Time :
4 WEEKS
Packaging Details :
PLYWOOD CASE
Lead time :
2024 t4 Forged Disc can be shipped off immediately from warehouse
Performance :
High Strength And Excellent Fatigue Resistance
Application :
Aircraft Structural Components, Truck Wheels, Medical Instruments, And Screw Machine Products
Surface treatment :
Mill Finish
Diameter :
2785MM
Thickness :
520MM
Description

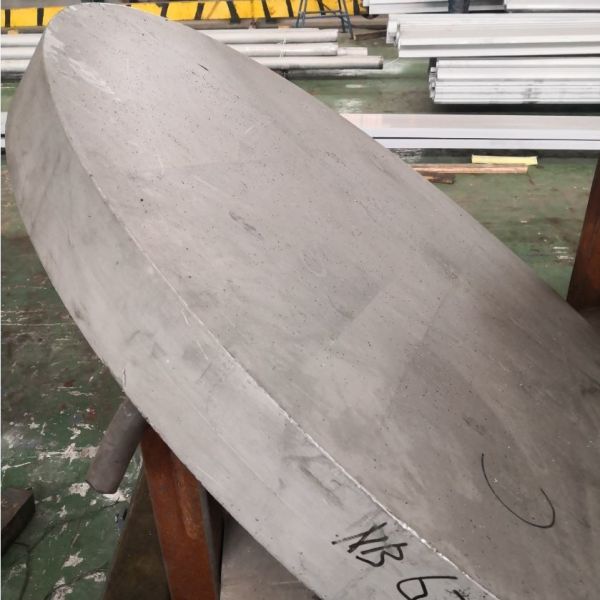

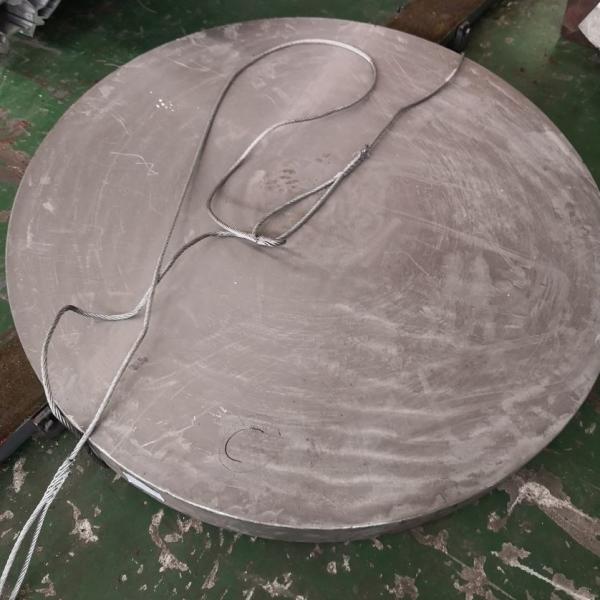

Diameter Span 2,850mm Mill Finish Aluminum Forging Parts 2024 T4 Aluminum Forged Discs
Specifications:
Diameter: 2,850mm
Thickness: 520mm
Material: ALUMINUM ALLOY 2024
Temper: T4
Features:
Aluminum 2024 is frequently used for aerospace structures where a high strength-to-weight ratio is necessary.
2024 aluminium alloy is non-magnetic and heat treatable. It is often found in bolts, gear shafts and wheels.

Chemical Components on 2024 T4 Aluminum Forged Discs:

2024 Aluminum Alloy Typical Chemical Composition %
Weight % Si Fe Cu Mn Mg Cr Zn Ti Each Total
Minimum 3.80 1.20 0.30
Maximum 0.50 0.50 4.90 1.80 0.90 0.10 0.25 0.15 0.05 0.15

Remainder Aluminum

2024 Aluminum Alloy Typical Mechanical Properties
Temper Tensile Hardness
Ultimate Yield Elongation Brinell
KSI MPA KSI MPA %
T4, T351 68 469 47 324 19 120
