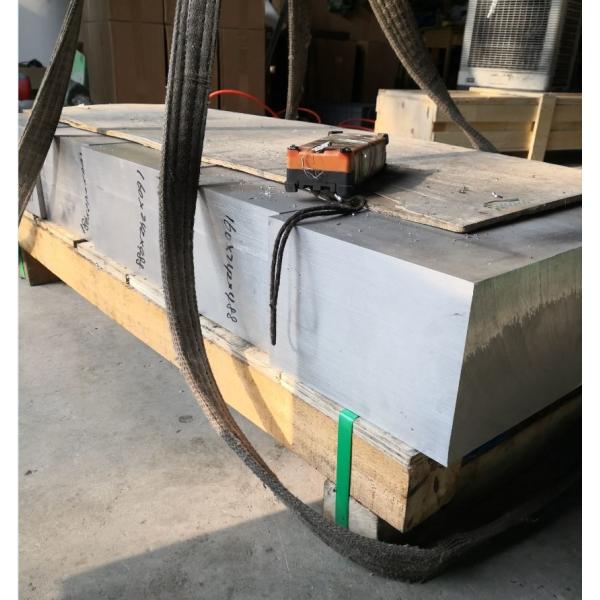

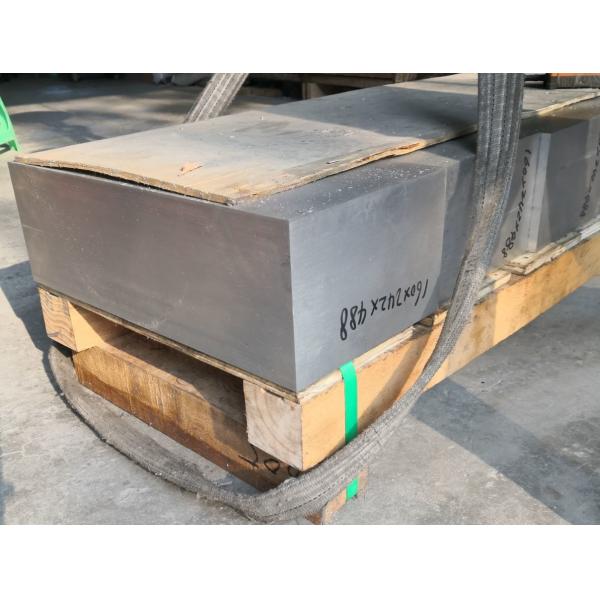

2A12 160MM Ultra Thick 2024 T4 Aluminum Sheet Plate
2A12 160MM Ultra Thick 2024 T4 Aluminum Sheet Plate
2A12 160MM Ultra Thick 2024 T4 Aluminum Sheet Plate
2A12 160MM Ultra Thick 2024 T4 Aluminum Sheet Plate
2A12 160MM Ultra Thick 2024 T4 Aluminum Sheet Plate
2A12 160MM Ultra Thick 2024 T4 Aluminum Sheet Plate
Specifications
Brand Name :
HUANYU
Model Number :
HYAP2A12
Place of Origin :
CHINA
MOQ :
1 Metric Ton
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
110 METRIC TONS PER MONTH
Delivery Time :
35 DAYS
Packaging Details :
PLYWOOD CASE
Enlongation :
15%
Tensile Strength :
66,000 PSI
Yield Strength :
58,000 PSI
Modulus of Elasticity :
10500 ksi
Coefficient of Thermal Expansion @ 20.0 - 100 °C Temp :
23.2 µm/m-°C | 12.9 µin/in-°F
Thermal Conductivity :
121 W/m-K | 840 BTU-in/hr-ft²-°F
Density :
2.77 grams per cubic centimeters
Material :
2A12
Temper :
T4
Dimension :
L*W*THICKNESS = 488MM*242MM*160MM
Description
160MM Ultra Thick 2024 T4 Aluminum Plate Aluminum Sheet Plate
L*W*THICKNESS = 488MM*242MM*160MM
2A12 is the grade of aluminum alloy, and the common T4 is its heat treatment supply method, which means air cooling and natural aging. 2A12 corresponds to the US 2124 alloy, which is a typical hard aluminum alloy in the aluminum-copper-magnesium series. Its composition is reasonable and the overall performance is better. Many countries produce this alloy, which is the largest in duralumin. The characteristics of the alloy are: high strength, a certain degree of heat resistance, and can be used as working parts below 150 °C .
2A12 is primarily alloyed with copper.
It also contains manganese and magnesium and can sometimes contain smaller amounts of silicon, iron, chromium, zinc and/or titanium.
2024 alloy is often chosen for applications that require high strength

Characteristics On 2A12-T4 Aluminum Sheets / Plates
Thermal Conductivity: 151 W/m-K | 1050 BTU-in/hr-ft²-°F
Coefficient of Thermal Expansion @ 20.0 - 100 °C Temp: 23.2 µm/m-°C | 12.9 µin/in-°F
Tensile Strength: 66000 psi
Yield Strength:58000 psi
Modulus of Elasticity: 10500 ksi

TYPICAL CHEMISTRY LIMITS:

Element Minimum % Maximum %
Silicon No Min 0.5
Iron No Min 0.5
Copper 3.8 4.9
Manganese 0.5 0.6
Magnesium 1.2 1.8
Chromium No Min 0.1
Zinc No Min 0.25
Titanium No Min 0.15
Other Elements No Min 0.05 each
0.15 in total

2A12 160MM Ultra Thick 2024 T4 Aluminum Sheet Plate2A12 160MM Ultra Thick 2024 T4 Aluminum Sheet Plate
