Mining Industry 7020 Aluminium Extruded Profiles 5753MM Length 28.7kgs / Meter
Mining Industry 7020 Aluminium Extruded Profiles 5753MM Length 28.7kgs / Meter
Mining Industry 7020 Aluminium Extruded Profiles 5753MM Length 28.7kgs / Meter
Mining Industry 7020 Aluminium Extruded Profiles 5753MM Length 28.7kgs / Meter
Mining Industry 7020 Aluminium Extruded Profiles 5753MM Length 28.7kgs / Meter
Mining Industry 7020 Aluminium Extruded Profiles 5753MM Length 28.7kgs / Meter
Specifications
Brand Name :
HUANYU
Model Number :
HYAFB7020E011
Place of Origin :
People's Republic of China
MOQ :
5 Units
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 400cm to 700cm
Length :
5753MM
Application :
Mining Industry, Tunnel Dring etc.
Materials :
7020 Aluminum Alloy
Weight Per Meter :
Approximately 31KGS
Distoration Tolearnce :
5mm For Whole Length
LEAD TIME :
IMMEDIATELY
AVAILABILITY :
20PIECES PER MONTH
Description

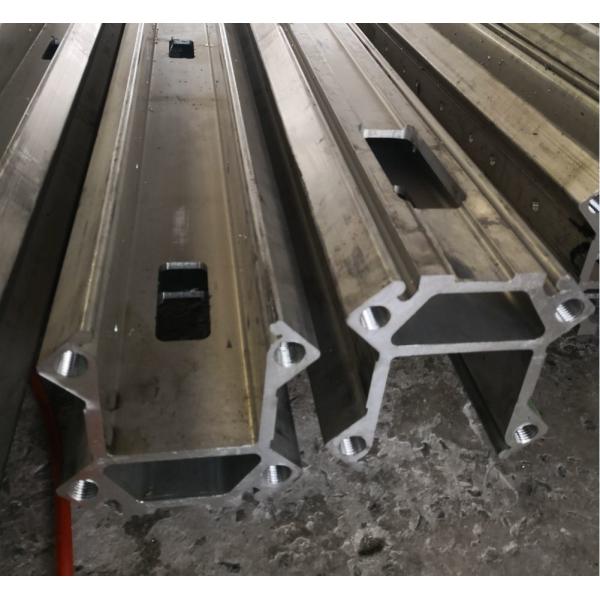

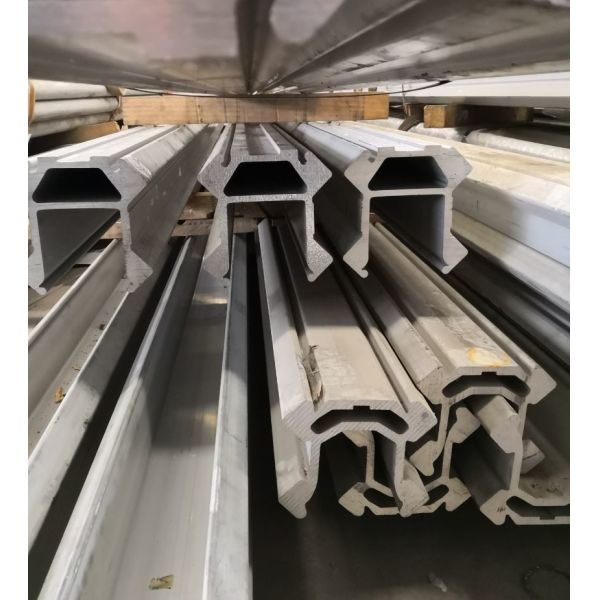

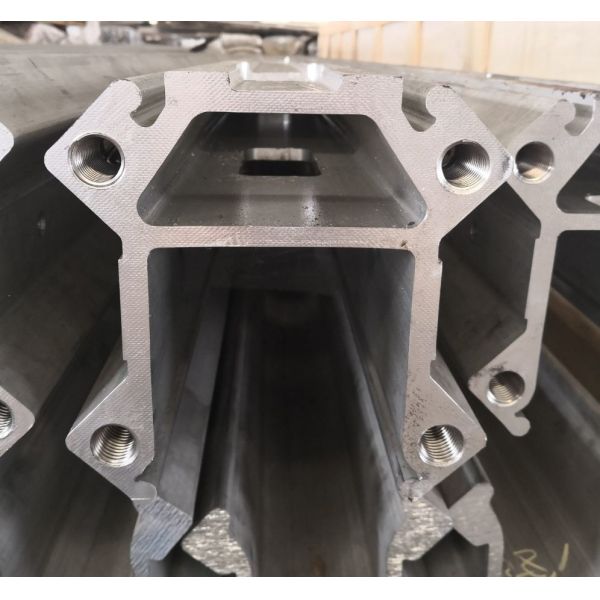

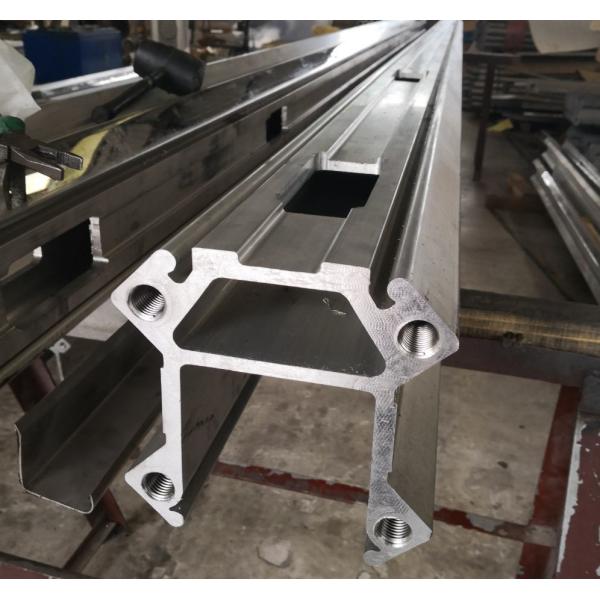

5756mm Long TF500 Feed Beam With Assurance of Immediately Delivery From Warehouse

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm (16 feet equal to 4876.80mm )

7. Feed Beam can be machined as per buyers' demand

8. Net Weight: 28.7kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 488cm X19.7cm X19.6 cm

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length
