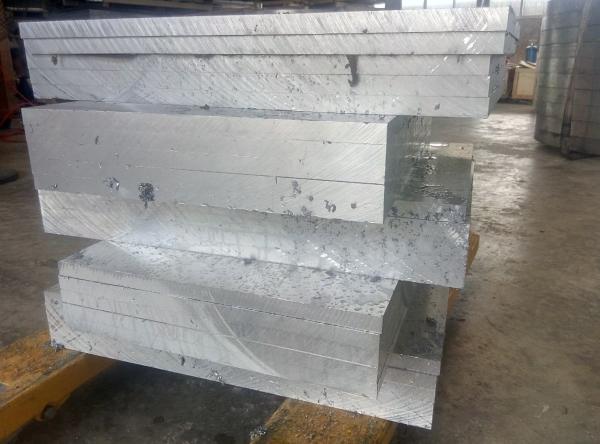

6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet
6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet
6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet
6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet
6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet
6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet
Specifications
Brand Name :
HUANYU
Model Number :
HYAP6063T6
Place of Origin :
CHINA
MOQ :
1 metric ton
Price :
US$3499-US$3899/ metric ton
Payment Terms :
T/T
Supply Ability :
478 metric tons per month
Delivery Time :
7 days
Packaging Details :
plywood case
Thickness :
28.5mm
Density :
2.7 g/cc
Ultimate Tensile Strength :
186 MPa
Yield Tensile Strength :
145 MPa
Melting Point :
616-654 Celsius Degree
Fatigue Strength :
68.9 MPa
Elongation at Break Percentage :
18%
Description

Architectural 28.5mm Thickness High Quality Surface 6063 T6 Aluminum Sheet Plate

6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.

6063 Typical Chemical Composition %
Weight % Si Fe Cu Mn Mg Cr Zn Ti Each Total
Minimum 0.20 0.45
Maximum 0.60 0.35 0.10 0.10 0.90 0.10 0.10 0.10 0.05 0.15

Remainder Aluminum

Chemistry Information
Element
Percentage
Al 98.9
Cr 0.1 max
Cu 0.1 max
Mg 0.45 - 0.9
Fe 0.35 max
Mn 0.1 max
Si 0.2 - 0.6
Zn 0.1 max
Ti 0.1 max
6063 Typical Mechanical Properties
Temper Tensile Hardness
Ultimate Yield Elongation Brinell
KSI MPA KSI MPA %
T5, T52 27 186 21 145 12 60
T6 35 241 31 214 12 73

6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet
