6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
Specifications
Brand Name :
HUANYU
Model Number :
HYAP6063T5
Place of Origin :
CHINA
MOQ :
5 metric tons
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
55 METRIC TONS PER MONTH
Delivery Time :
40 DAY
Packaging Details :
PLYWOOD CASE
Surface treatment :
Mill Finish
Diameter :
Ranging from 230mm to 568mm
Application :
Motor enclosure, motor casing, motor shell
Weight Per Meter :
19KGS Through 53KGS
Ultimate Tensile Strength :
30KSI
Yield Strength :
25KSI
Description

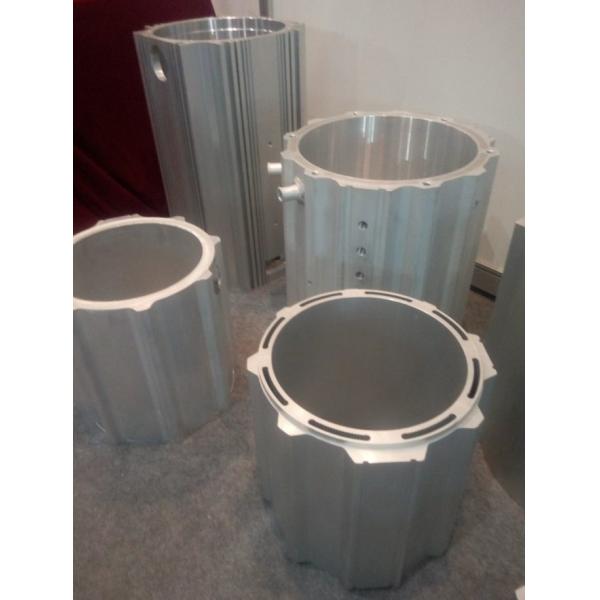

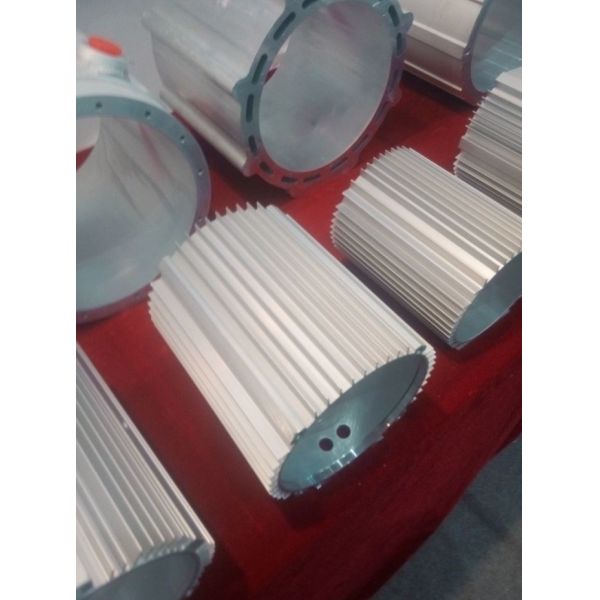

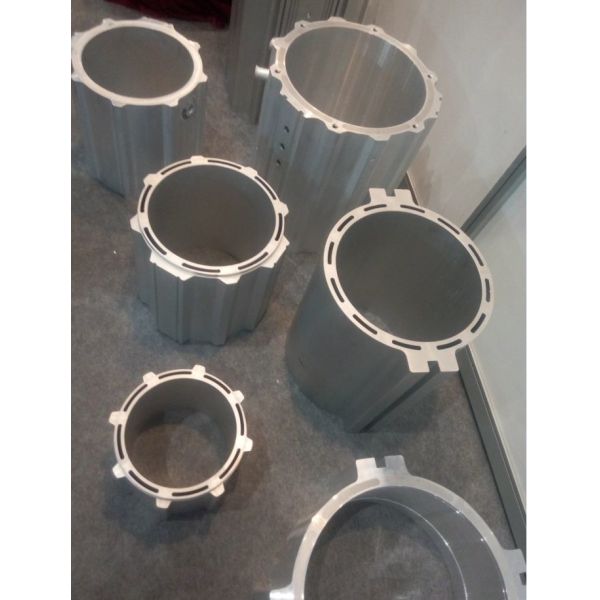

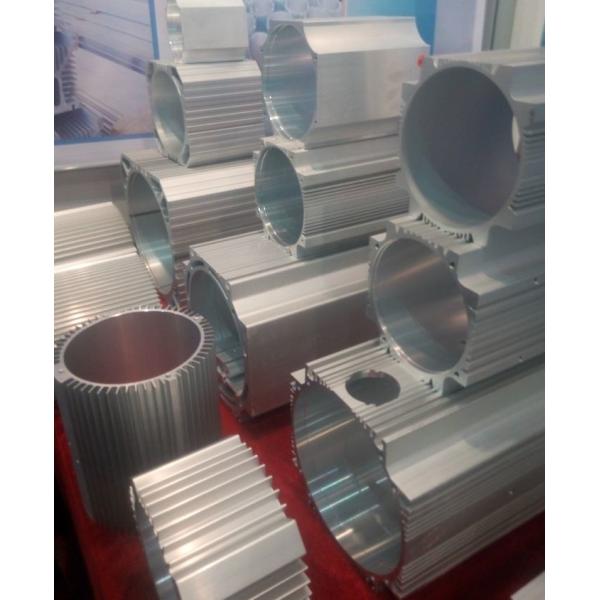

Mill Finish 6063 T5 Aluminum Extrusion Profiles Used As DC Motor Casing DC Motor Shell

Application : motor enclosure , motor casing , motor shell

Diameter: 230mm Through 568mm

Net Weight Per Meter: 19KGS Through 52KGS

Technical Data Sheet

6063 Aluminum Alloy Chemical Composition Limits
Weight% Al Si Fe Cu Mn Mg Cr Zn Ti Other Each Others Total
6063 Bal 0.2-0.6 0.35 max 0.10 max 0.10 max 0.45-0.9 0.1 max 0.10 max 0.10 max 0.05 max 0.15 max

6063 Aluminum Alloy Typical Mechanical Properties

Material Diameter or wall thickness (") Tensile Strength (ksi) min Yield Strength (ksi) min Elongation % in 2"
Alloy 6063 <0.125 30 25 8
Alloy 6063 0.125 - 1.00 30 25

10

6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
