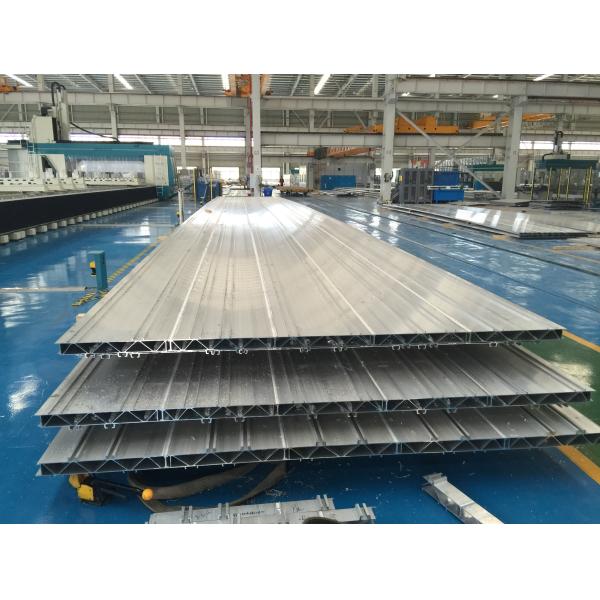

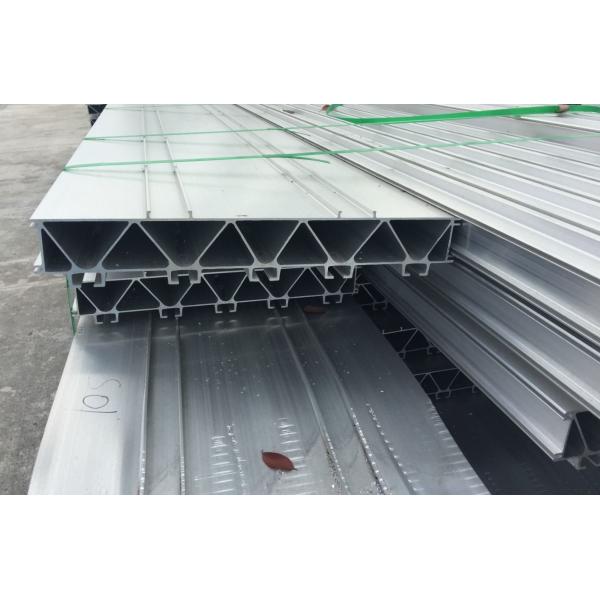

4.2M 6063 T6 Aluminium Extruded Profiles 16.8MM Wall Thickness Used As Subway Train'S Side Wall
4.2M 6063 T6 Aluminium Extruded Profiles 16.8MM Wall Thickness Used As Subway Train'S Side Wall
4.2M 6063 T6 Aluminium Extruded Profiles 16.8MM Wall Thickness Used As Subway Train'S Side Wall
4.2M 6063 T6 Aluminium Extruded Profiles 16.8MM Wall Thickness Used As Subway Train'S Side Wall
4.2M 6063 T6 Aluminium Extruded Profiles 16.8MM Wall Thickness Used As Subway Train'S Side Wall
4.2M 6063 T6 Aluminium Extruded Profiles 16.8MM Wall Thickness Used As Subway Train'S Side Wall
Specifications
Brand Name :
HUANYU
Model Number :
HYAP6063T6
Place of Origin :
CHINA
MOQ :
5 METRIC TONS
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
70 METRIC TONS PER MONTH
Delivery Time :
40 days
Packaging Details :
PALLET
Wall Thickness :
19.4mm
Density :
2.71 g/cc
Ultimate Tensile Strength :
186 MPa
Yield Tensile Strength :
145 MPa
Melting Point :
616-654 Celsius Degree
Elongation at Break Percentage :
18%
Application :
Metro Train , Public Transportation Vehicle
Description

16.8MM Wall Thickness 4.2M 6063 T6 Aluminum Extruded Profiles Used As Subway Train's Side Wall

6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.

Specifications on 16.8MM Wall Thickness 4.2M 6063 T6 Aluminum Extruded Profiles Used As Subway Train's Side Wall

Wall Thickness: 16.80mm

Shape: Hollow And Rectangular

Length: 4200mm

6063 Typical Chemical Composition %
Weight % Si Fe Cu Mn Mg Cr Zn Ti Each Total
Minimum 0.20 0.45
Maximum 0.60 0.35 0.10 0.10 0.90 0.10 0.10 0.10 0.05 0.15

Remainder Aluminum

6063 Typical Mechanical Properties
Temper Tensile Hardness
Ultimate Yield Elongation Brinell
KSI MPA KSI MPA %
T5, T52 27 186 21 145 12 60
T6 35 241 31 214 12 73

4.2M 6063 T6 Aluminium Extruded Profiles 16.8MM Wall Thickness Used As Subway Train'S Side Wall4.2M 6063 T6 Aluminium Extruded Profiles 16.8MM Wall Thickness Used As Subway Train'S Side Wall
