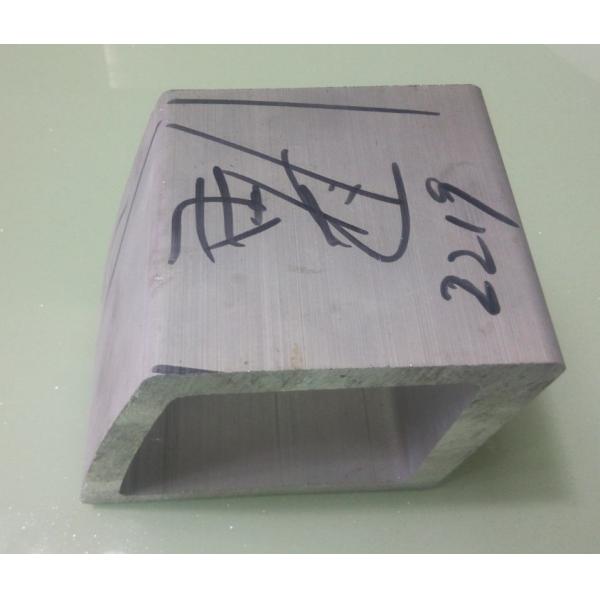

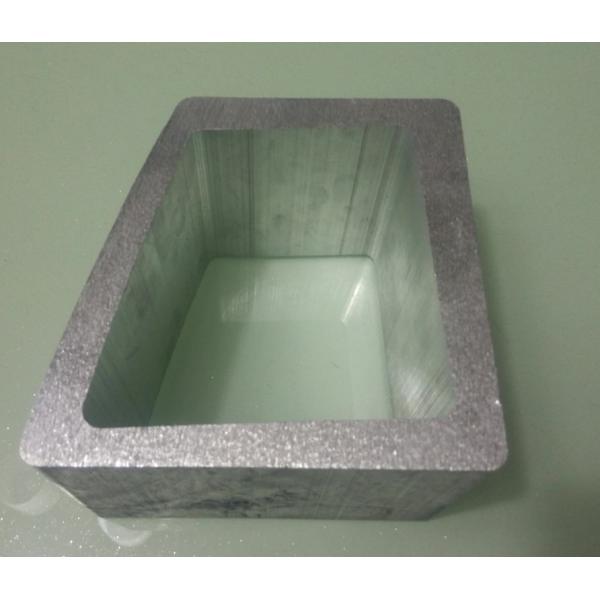

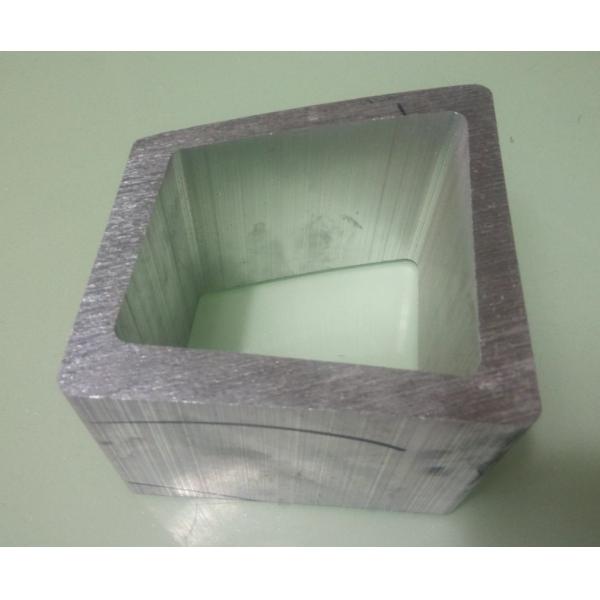

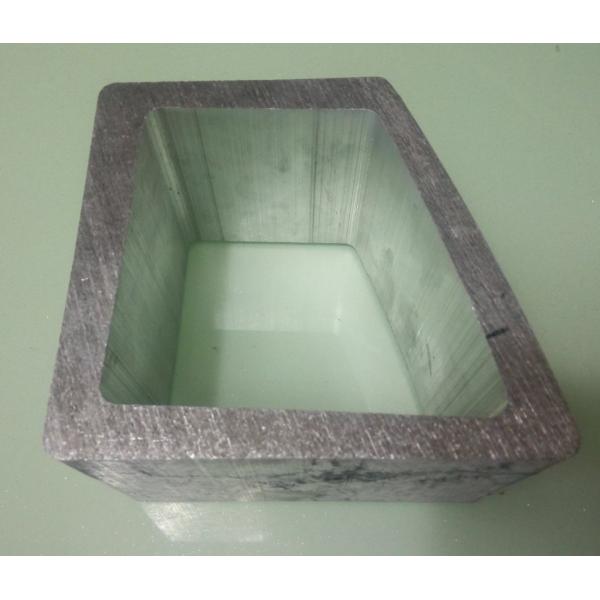

Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
Specifications
Brand Name :
HUANYU
Model Number :
HYAP2219
Place of Origin :
CHINA
MOQ :
1 METRIC TON
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 METRIC TONS PER MONTH
Delivery Time :
40 DAYS
Packaging Details :
PLYWOOD CASE
Machinability :
Good
Useful over a temperature range of :
-452°F to 600°F
Weldability :
Readily weldable
T8 condition :
In the T8 condition it is resistant to stress corrosion cracking
Tensile Strength ksi :
58 KSI
Yield Strength ksi Elongation :
42 KSI
Enlongation :
6%
Description

Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts On Nuclear Reactor

2219 Aluminium Extruded Profiles

which is an age-hardenable alloy is produced with a copper additive. It is well-known for its excellent structural strength and it's used for numerous high temperature applications. It is a suitable alloy for many metalworking processes including machining, forming, heat treatment, cold working, and more.

This alloy was not designed for hot working; it is best used for cold working and is machinable in the annealed condition. Hot working and welding adversely affect this alloy's ability to resist corrosion.

Application on 2219 Aluminum Extruded Profiles

can be used a range of aerospace applications such as high temperature structural applications including space booster and fuel tanks.

Specifications on 2219 Aluminum Extruded Profiles

Wall Thickness: 28.55mm

Crosscut Shape: Trapezoid Shaped

Length: 3.96 Meters

2219 Aluminum Alloy Chemical Composition Limits
Weight% Al Si Fe Cu Mn Mg Zn Ti Others V Zn
2219 Bal 0.20 max 0.30 max 5.80-6.80 0.20-0.40 0.02 max 0.10 max 0.02-0.10 0.050 each
0.15 total		 0.05-0.15 0.10-0.25

2219 Solid Round Bar Typical Mechanical Properties

Aluminium 2219 - Extrusions Profiles

Material Temper Direction Tensile Strength ksi Yield Strength ksi Elongation in 2" (%)
2219 (AMS 4162) T8511 L 58 42 6
2219 (AMS 4162) T8511 LT 56 39 4

Trapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional PartsTrapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional PartsTrapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional PartsTrapezoid Shaped 2219 Aluminium Extruded Profiles Used As Constructional Parts
