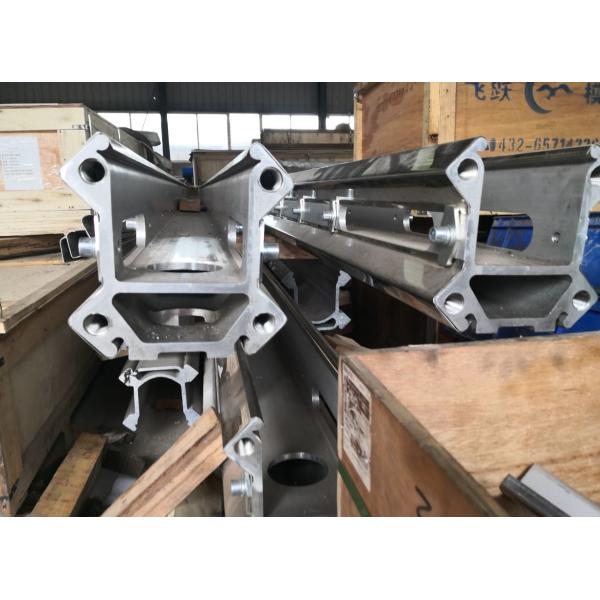

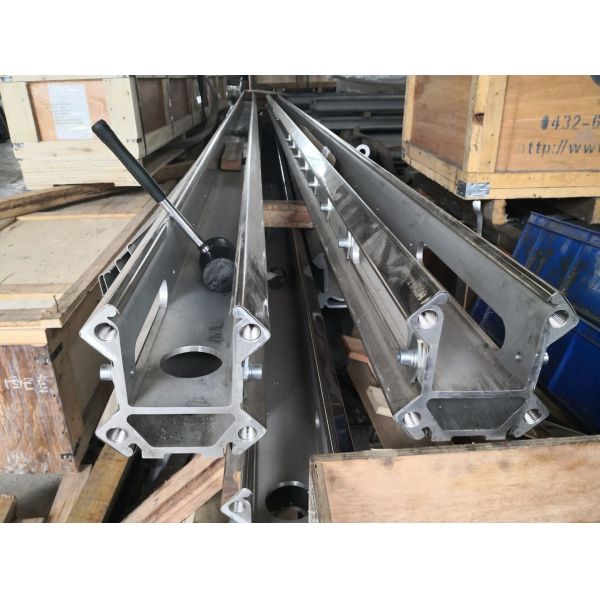

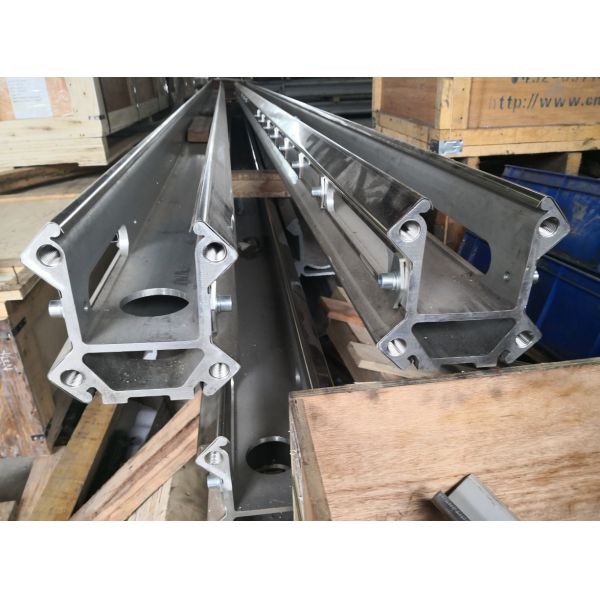

6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam
6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam
6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam
6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam
6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam
6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam
Specifications
Brand Name :
HUANYU
Model Number :
HYASVFB7020
Place of Origin :
People's Republic of China
MOQ :
5 Units
Price :
Negotiable
Payment Terms :
T/T, T/T
Supply Ability :
50Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 400cm to 700cm
Feed Beam Type :
TF500 TFX500
Length :
6500MM
Matchining :
Depend On Availability of Machining Drawings
Material :
7020 Aluminum Alloy
Application :
Jumbo Boomer
Net Weight Per Meter :
32 Kilograms Per Meter
Length Availability :
3000m through 7200mm
Lead Time :
Shipped Off Immediately
Description

TF500 TFX500 Feed Beam 6500MM Long Used On Jumbo Boomer In Mining Industry

1. Material: Aluminum Alloy 7020 With Heat Treatment T6
2. Compliant with Standard of GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 32kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 450cm X23cm X21 cm

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option 3000mm through 7200mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam6500MM Aluminium Extruded Profiles Long TF500 TFX500 Feed Beam
