Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Water Cooling Aluminium Extruded Profiles / 6063 T5 Aluminum Extrusion
Specifications
Brand Name :
HUANYU
Model Number :
HYAP6063T5
Place of Origin :
CHINA
MOQ :
5 METRIC TONS
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
240 METRIC TONS PER MONTH
Delivery Time :
40 DAY
Packaging Details :
PLYWOOD CASE
Surface treatment :
Mill Finish
Outer Diameter :
207mm
Application :
Motor enclosure, motor casing, motor shell
Profile Height :
354.6mm
Cooling Method :
Water Cooling
Material :
Aluminum Alloy 6063
Temper :
T5
Description

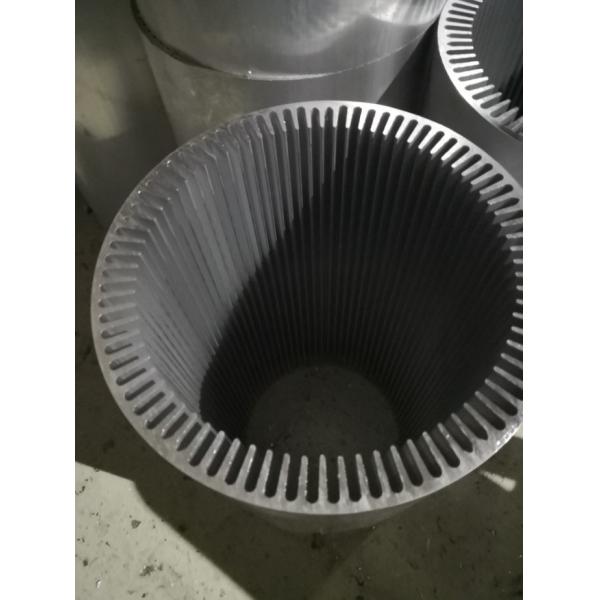

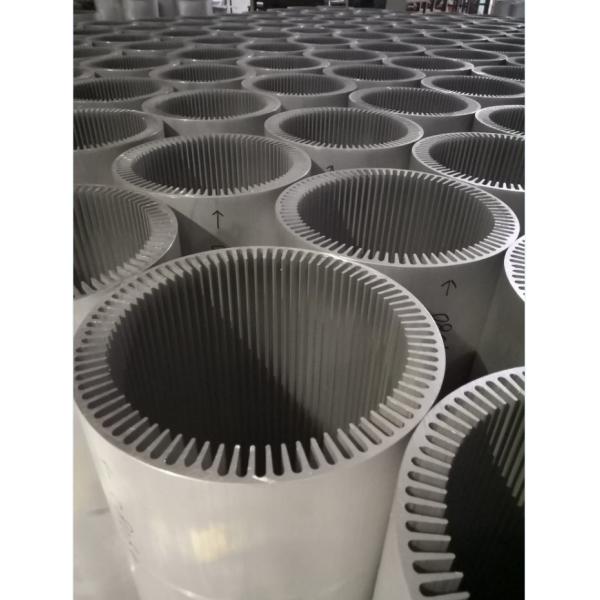

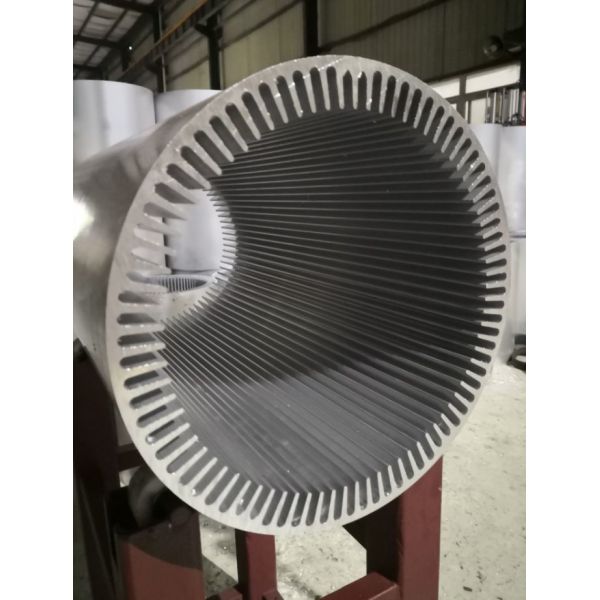

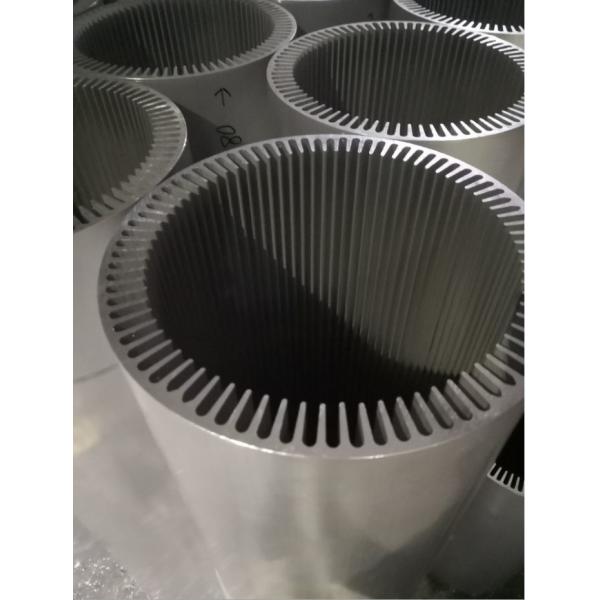

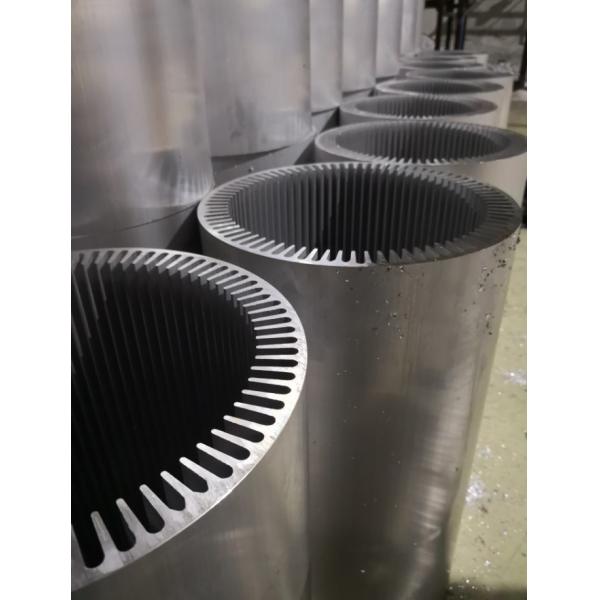

6063 T5 Aluminum Extruded Profiles aluminum case used on DC motor enclosure DC motor casing DC motor shell

6063 T5 Aluminum Extruded Profiles

Application : motor enclosure , motor casing , motor shell

Outer Diameter: 207mm

Profile Height: 354.6mm

Cooling Method: Water Cooling

Material: Aluminum Alloy 6063

Temper: T5

Technical Data Sheet

6063 Aluminum Alloy Chemical Composition Limits
Weight% Al Si Fe Cu Mn Mg Cr Zn Ti Other Each Others Total
6063 Bal 0.2-0.6 0.35 max 0.10 max 0.10 max 0.45-0.9 0.1 max 0.10 max 0.10 max 0.05 max 0.15 max

6063 Aluminum Alloy Typical Mechanical Properties

Material Diameter or wall thickness (") Tensile Strength (ksi) min Yield Strength (ksi) min Elongation % in 2"
Alloy 6063 <0.125 30 25 8
Alloy 6063 0.125 - 1.00 30 25

10
