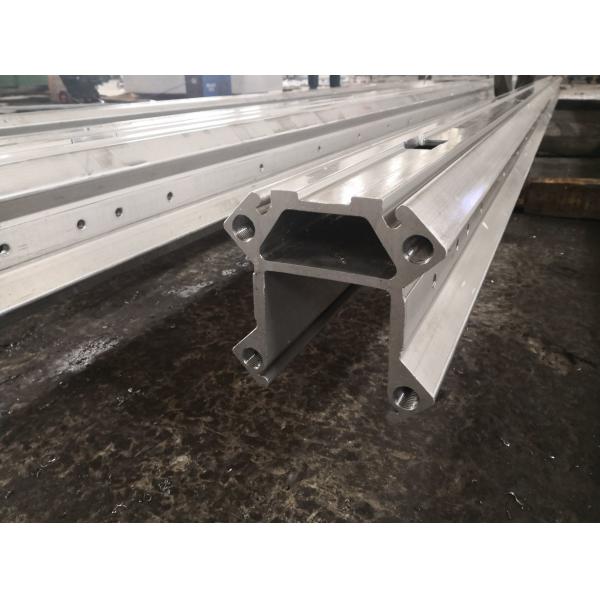

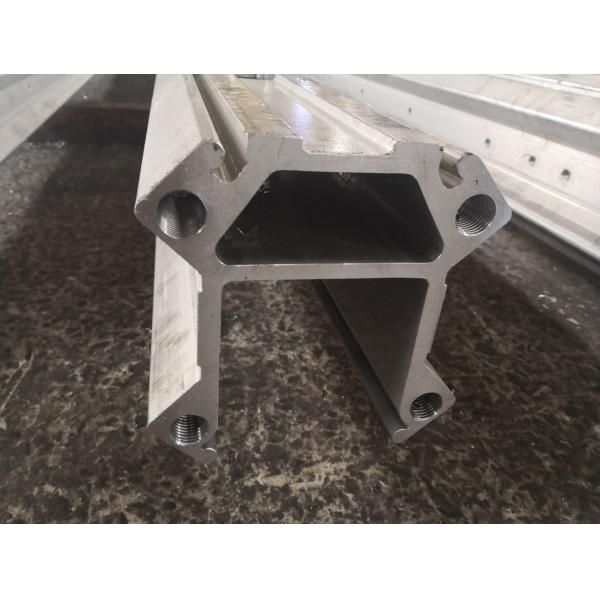

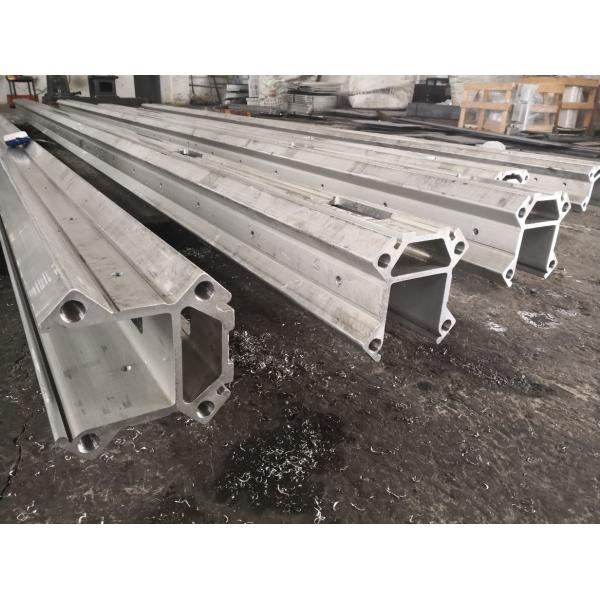

6.5M Feed Beam Aluminium Extruded Profiles for Tunnel Drilling
6.5M Feed Beam Aluminium Extruded Profiles for Tunnel Drilling
6.5M Feed Beam Aluminium Extruded Profiles for Tunnel Drilling
6.5M Feed Beam Aluminium Extruded Profiles for Tunnel Drilling
Specifications
Brand Name :
HUANYU
Model Number :
FB7020L
Place of Origin :
People's Republic of China
MOQ :
5 Units
Payment Terms :
T/T
Supply Ability :
67 Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length Max. 6.6Meters
Length :
6.5M Long Feed Beam for Mining Industry
Application :
Mining Industry, Tunnel Drilling etc.
Materials :
7000 Series Aluminum Alloy
Weight Per Meter :
Approximately 34KGS
Distoration Tolearnce :
5mm For Whole Length
Length Maximum :
6.5 Meters
Description

Tamrock Feed Beam Aluminium Extruded Profiles

SPECIFICATIONS:

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm (16 feet equal to 4876.80mm )

7. Feed Beam can be machined as per buyers' demand

8. Net Weight: 34kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 660cm X28cm X28 cm

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

6.5M Feed Beam Aluminium Extruded Profiles for Tunnel Drilling6.5M Feed Beam Aluminium Extruded Profiles for Tunnel Drilling

6.5M Feed Beam Aluminium Extruded Profiles for Tunnel Drilling
