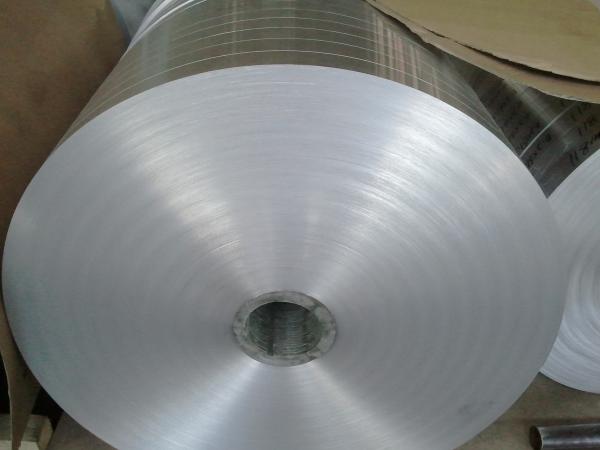

Aluminium Cladding Panels Aluminum Foil Strips 4% - 18% Cladding Rate
Aluminium Cladding Panels Aluminum Foil Strips 4% - 18% Cladding Rate
Aluminium Cladding Panels Aluminum Foil Strips 4% - 18% Cladding Rate
Aluminium Cladding Panels Aluminum Foil Strips 4% - 18% Cladding Rate
Specifications
Brand Name :
Tai Lian
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
5 tons
Price :
negotiation
Payment Terms :
T/T, L/C, DP
Supply Ability :
100tons/week
Delivery Time :
10-30 days
Packaging Details :
Strong sea-worthy export package
Alloy :
1060, 3003, 5052 etc
Temper :
HO, H14 etc
thickness :
0.2-3.0mm
Width :
12 - 1250mm (max)
Name :
Thin Aluminum Strips
I. D. :
150mm, 200mm, 300mm, 400mm, 500mm
Normal O. D. :
900-1450mm
Cladding rate :
4%-18%
Description

Aluminium Cladding Panels / Aluminium Foil Heavy Duty 4% - 18% Cladding Rate

7072 5%,/8%/10%/12% 1060, 3003, 5052/4343, 4045, Aluminum cladded material for heavy duty

1. Chemical compositions of cladded materials, core materials for welding heat exchangers

(1) Cladded Materials

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 － 0.2 － 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 － 0.5-1.5 － 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 － 0.2 － 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 － 0.5-1.5 － 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 － 0.2 5
7072 0.7 0.1 0.1 0.1 0.8-1.3 － － 6
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 － 0.03 7


(2) Core Materials

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 － 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 － 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 － 0.01 6


2. Mechanical properties

Alloy Code temper Tensile Strength
Rm(MPa)		 Yield Strength Rp0.2(Mpa) Extend Ratio
A50(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

Remark:“*”in the above table means tensile strength shall be 120-150Mpa,yield strength shall be ≥45Mpa,and

elongation shall be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper HO contain Cu..

Additional: We can manufacture special specifications according to customers' requests.

3. Production capability

Width(mm) Thickness(mm) Length(mm) Inside Diameters(mm)
Sheet 500-1070 0.5-5.0 500-2500 -
Strip 12-1070 0.2-3.0 - 150,200,300,400,500
Foil 12-1070 0.05-0.2 - 150,200,300,400,500

Composite ratio 4-18%(per side)

Percent Clad(per side) 4-8% ＞ 8-18%
Cladding tolerance ±1.5% ±2.0%


4. Our advantages



(1). Excellent reputation among Aluminum and Copper Areas;



(2). We have gained rich experience in this industry;



(3). We have our own development department committed to new material research;



(4). Our processing begins from aluminum ingot, then we can control the quality as well;



(5). Ample experience and win-win cooperation with giant clients throughout the world;



(6). Fast production;



(7). With Certificate OHSAS 18001, ISO14001, and TS16949;


(8). High performance cost ratio;


(9). Good understandings and service, and acknowledged communication skills for customers;.
