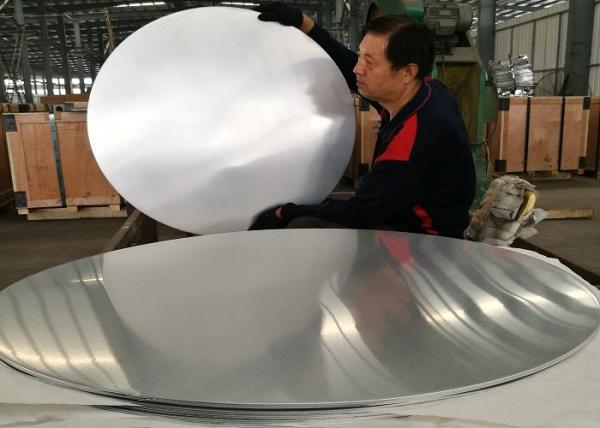

Durable Hard Round Metal Discs , Multifunction Aluminium Discs Circles For Cookware
Durable Hard Round Metal Discs , Multifunction Aluminium Discs Circles For Cookware
Durable Hard Round Metal Discs , Multifunction Aluminium Discs Circles For Cookware
Durable Hard Round Metal Discs , Multifunction Aluminium Discs Circles For Cookware
Specifications
Brand Name :
Tai Lian
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
5 tons
Price :
negotiation
Payment Terms :
T/T, L/C, DP
Supply Ability :
100 Tons/week
Delivery Time :
10-30 days
Packaging Details :
Strong sea-worthy export package
shape :
Circle/ Disc
Surface :
Mill finish
Temper :
O, H22 Etc
thickness :
1.2mm 2.0mm and Etc
Diameter :
4inch to 50inch
Alloy :
3000
Description

Multifunction 3000 Aluminum Round Circle Durable Hard Anodizing For Cookware


Quick Detal:

Alloy: 3000 seriers

Thickness: 0.5mm-6.0mm

Temper: O,H22,H14,H24,H16,H18,H32,H34 and Etc

Diameter: 4inch to 50inch

Quality control: We have the certificate of ISO and SGS and we have professional QC

The detail speciafication of the above products are all can customized by clients


Description:



Aluminum wafers are widely used in electronics, daily chemical,medicine,culture and education,auto parts,

electrical appliances, insulation, machinery manufacturing, automotive, aerospace, military industry, mold,

construction, printing and other industries. Kitchen goods such as titanium, pressure cooker, etc. and

hardware products such as lampshade, water heater shell, etc. These are the one of the largest aluminum

alloy plate and strip processing products.


Alloy: 1000 series 3000 series 5000 series 6000 series

Temper (condition): O H

Material designation: 1060 3003 5052 6061

Thickness: 0.4mm~5.0mm

Diameter: 50mm~1000mm

Specification Name: 3000 series aluminum sheet
Alloy: 3003, 3004, 3005, 3105 etc.
Temper: O, H12, H22, H32, H14, H24, H26, H18 etc.
Thickness: 0.25-200mm
Width: Up to 1800mm
Length: Up to 6000mm
Surface treatment: mill finished, anodized, embossed, PVC coated
Feature Machinability: It is readily machined and is considered as having good machinability for the aluminum alloys,.
Forming: It is readily formed by either conventional cold working or hot working.
Welding: It is readily accomplished by means of conventional welding methods.
Heat Treatment: It is a non-heat treatable alloy.
Forging: It may be hot forged in the range of 950 F to 500 F.
Hot Working: The hot working range (as for forging) is 950 F to 500 F. In that range the alloy is easily hot worked.
Cold Working: It is readily cold worked by all conventional methods.
Annealing: Annealing, during or following cold working, is done at 775 F, allowing adequate time for thorough heating, followed by air cooling.
Hardening: Hardens as a result of cold working only.
Application Chemical equipment, ductwork, and in general sheet metal work, cooking utensils, pressure vessels, builder's hardware, eyelet stock, ice cube trays, garage doors, awning slats, refrigerator panels, gas lines, gasoline tanks, heat exchangers, drawn and spun parts, and storage tanks etc.
Alloy Chemical Component %≤
Si Fe Cu Mn Mg Cr Ni Zn Ti others Al
single total
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.15 remainder
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 0.25 0.05 0.15 remainder
3005 0.6 0.7 0.3 1.0-1.5 0.2-0.6 0.1 0.25 0.1 0.05 0.15 remainder
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 0.4 0.1 0.05 0.15 remainder

Tolerance

Dimensions
Parameter Range Tolerance
Thickness for circles (mm) 0.71 _ 6.35 for 0.71 to 1.4 +/-0.08
for 1.41 to 2.5 +0.1, -0.13
for 2.51 to 4.0 +/-0.13
for 4.01 to 5.00 +/-0.15
for 5.01 to 6.35 +/-0.20
Thickness for ovals (mm) 1.75 _ 3.00 for 1.75 to 2.5 +0.1, -0.13
for 2.51 to 3.00 +/-0.13
Diameter (mm) 102 _ 1250 (a) sheared circles +2, -0
(b) punched circles +0.5, -0
Earing < 5% for ' O' temper
< 9% for H12, H14, H16, H18

Durable Hard Round Metal Discs , Multifunction Aluminium Discs Circles For Cookware
