AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083
AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083
AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083
AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083
AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083
AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083
AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083
AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083
Specifications
Brand Name :
Chinalco
Model Number :
1050 1060 2024 3003 5083
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1 TON
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Ton/Tons per Month
Delivery Time :
3-15 days
Packaging Details :
Exporting package/wooden box package etc
Product Name :
Aluminum plate
Thickness :
0.6-20mm or as required
Trade Terms :
FOB CIF CFR EXW
Port of Loading :
Shanghai Port or as required
Certificate :
ISO, SGS, CE, BV etc.
Description

5000 Series 5083 AISI Aluminium Plate Sheet Anodized Polished Surface Flat Aluminium Magnesium Alloy

Product Description

Alloy 5083 retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys with an Ultimate Tensile Strength of 317 MPa or 46000 psi and a Tensile Yield Strength of 228 MPa or 33000 psi. It is not recommended for use in temperatures in excess of 65 °C. Alloy 5083 is also commonly used in cryogenic applications due to it being able to be cooled to -195°C. At this temperature, the alloy has an increase in ultimate tensile strength of 40% and in yield strength of 10% as well as exhibiting excellent fracture toughness at such temperatures.

item
Aluminum sheet
Grade
5000 Series
Type
Plate
Application
Building
Width
0.3 - 300 mm or as required
Surface Treatment
Mill finish
Alloy Or Not
Is Alloy
Place of Origin
China
Jiangsu
Model Number
7075,6061,5083 etc.
Tolerance
±1%
Processing Service
Welding, Cutting
Application
Industry, aircraft structures
Surface
Mill, Bright,Polished,Hairline
Standard
ASTM/DIN/GB/SUS
Delivery Condition
Bulk Shipping or Container
Alloy Or Not
Is Alloy
Temper
O-H112

Product Detail

AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083

Chemical Composition

GB/T
3190
Chemical Composition(%)
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Al
1060
0.25
0.35
0.05
0.03
0.03
-
0.05
0.03
99.6
1100
0.95 Si+Fe
0.05-0.20
0.05
-
-
0.1
-
99
2024
0.5
0.5
3.8-4.9
0.3-0.9
1.2-1.8
0.1
0.25
0.15
Balance
3003
0.6
0.7
0.05-0.20
1.0-1.5
-
-
0.1
-
Balance
5052
0.25
0.4
0.1
0.1
2.2-2.8
0.15-0.35
0.1
-
Balance
5083
0.4
0.4
0.1
0.40-1.0
4.0-4.9
0.05-0.25
0.25
0.15
Balance
6061
0.40-0.8
0.7
0.15-0.40
0.15
0.8-1.2
0.04-0.35
0.25
0.15
Balance
7075
0.4
0.5
1.2-2.0
0.3
2.1-2.9
0.18-0.28
5.1-6.1
0.2
Balance

Mechanical Character

ALUMINUM
ALLOY
Grade
Normal
Temper
Temper
Tensile Strength
N/mm²
Yield Strength
N/mm²
Elongation%
Brinell Hardness
HB
Plate
Bar
1XXX
1050
O,H112,H
O
78
34
40
-
20
1060
O,H112,H
O
70
30
43
-
19
Al-Cu
(2XXX)
2019
O,T3,T4,T6,T8
T851
450
350
10
-
-
2024
O,T4
T4
470
325
20
17
120
Al-Mn
(3XXX)
3003
O
110
40
30
37
28
3004
O,H112,H
O
180
70
20
22
45
Al-Si (4XXX)
4032
O,T6,T62
T6
380
315
-
9
120
Al-Mg
(5XXX)
5052
O,H112,H
H34
260
215
10
12
68
5083
O,H112,H
O
290
145
-
20
-
Al-Mg-Si
(6XXX)
6061
O,T4,T6,T8
T6
310
275
12
15
95
6063
O,T1,T5,T6,T8
T5
185
145
12
-
60
Al-Zn-Mg
(7XXX)
7003
T5
T5
315
255
15
-
85
7075
O,T6
T6
570
505
11
9
150

Application

Aluminum sheet or plate is used in various applications, including aerospace, military, transportation, etc. Aluminum sheet or plate is also used for tanks in many food industries, because some aluminum alloys become tougher at low temperatures.

AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083

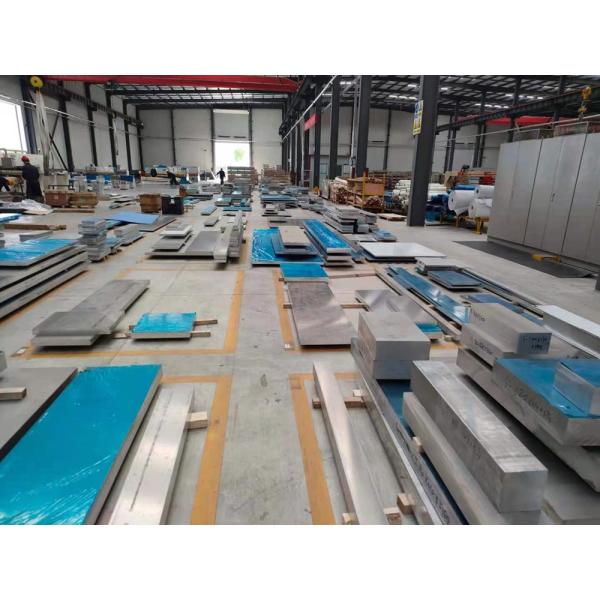

Factory

AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083

Recommend Products

AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083

Packing and Shippment

AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083

AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083

AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083

Certification

AISI Anodized Aluminium Plate Sheet Polished Surface Flat Magnesium 5000 Series 5083

FAQ

1. How can I get a quotation from you ?

You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager. And you can also find our contact information on contact page.

2.Can I get samples before order ?

Yes, of course. we can produce by your samples or technical drawings.

3. What is your delivery time ?

The time of delivery is usually around 7-10 days.We can send out in 7 days, if it has stock.

4.What is your payment terms?

Our usual payment term is 30% deposite, and rest against B/L. 100%L/C at sight is also acceptable.
