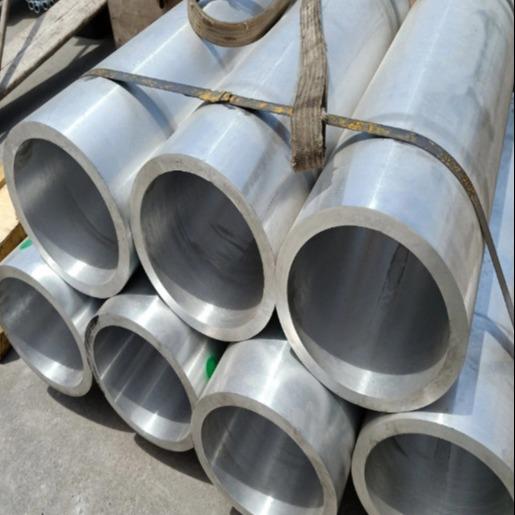

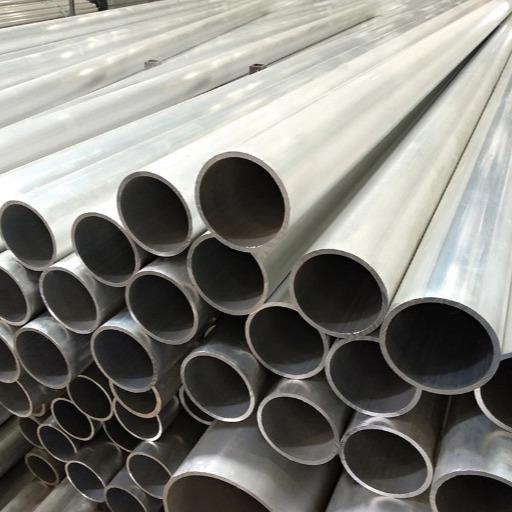

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator
Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator
Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator
Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator
Specifications
Brand Name :
CHINALCO
Model Number :
1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Certification :
ISO9001
Place of Origin :
Jiangsu China
MOQ :
1ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Ton/Tons per Month
Delivery Time :
About 7-10 days,depends on the specific order
Packaging Details :
Exporting package/wooden box package/Or per customers’requirement
Product Name :
Aluminum pipe
Type :
Industrial pure aluminum
Material :
1050,1060,1070,1100
Surface :
Mill Finish,Anodize or as required
Hot Sale Country :
Middle East, Southeast Asia, South America, Europe
Packing :
Standard seaworthy packing
Description

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator

Product Description

Aluminium tube is a kind of non-ferrous metal tube, which refers to a metal tubular material that is made of pure aluminum or aluminum alloy by extrusion processing to be hollow along its longitudinal length.There can be one or more closed through holes,with uniform wall thickness and cross section, and delivered in a straight line or in a roll. It is widely used in industries such as automobiles, ships, aerospace, aviation, electrical appliances, agriculture, electromechanical and household appliances.

Material Grade 1000 series: 1050,1060,1070,1080,1100,1435, etc
Standard ASTM, ASME,EN, JIS, DIN,GB/T etc
Size Round tube: OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S)
Square tube: 2*2-1016*1016mm(1/16"-40") WT:0.2-120mm
Rectangular tube: 2*4-1016*1219mm(1/16"-48") WT:0.2-120mm
Surface Mill finish,Anodized,Electrophoresis,Powder coating,Wooden grain,Sand blast
Trade Terms EXW,FOB,CIF CFR
Loading Port Shanghai port, Tianjin port, Qindao port or as required
Payment terms 1) 30% deposit by T/T, the balance against 70% T/T.
2) 30% deposit by T/T, the balance by L/C at sight.
3) 100% L/C at sight.
MOQ 500kgs
Packing Detail Standard export package or as required.
Delivery time 1.Usually,within10-20days after receiving deposit or LC.
2.According to the order quantity
Samples Free samples are provided but the freight is borne by the buyer


Product Detail

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator

Chemical Compositon

Alloy
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Zr
Impurity

Al
2014
0.5-1.2
0.7
3.9-5.0
0.4-1.2
0.2-0.8
0.1
0.25
0.15
-
0.15
Rest
2017
0.2-0.8
0.7
3.5-4.5
0.4-1.0
0.4-0.8
0.1
0.25
0.15
-
0.15
Rest
2024
0.5
0.5
3.8-4.9
0.3-0.9
1.2-1.8
0.1
0.25
0.15
-
0.15
Rest
5052
0.25
0.4
0.1
0.1
2.2-2.8
0.15-0.35
0.1
-
-
0.15
Rest
5056
0.3
0.4
0.1
0.05-0.20
4.5-5.6
0.05-0.20
0.1
-
-
0.15
Rest
5083
0.4
0.4
0.1
0.40-1.0
4.0-4.9
0.05-0.25
0.25
0.15
-
0.15
Rest
5754
0.4
0.4
0.1
0.5
2.6-3.6
0.3
0.2
0.15
-
0.15
Rest
6061
0.4-0.8
0.70
0.15-0.40
0.15
0.8-1.2
0.04-0.35
0.25
0.15
-
0.15
Rest
6063
0.2-0.6
0.35
0.1
0.1
0.45-0.9
0.1
0.1
0.1
-
0.15
Rest
6082
0.7-1.3
0.5
0.1
0.4-1.0
0.6-1.2
0.25
0.2
0.1
-

Physical Properties

Physical Properties Tensile Strength Yield Strength Elongation(%)
Grade Hardness (MPa) (MPa) 0.25-1.25mm 1.26-3.0mm
1100 O 89.6 34.5 30 6
H12 110.3 103.4 4 12
H14 124.1 117.2 3 10
2024 O 186.2 75.8 18 20
T3 482.6 344.7 16 18
T4 468.8 324.1 20 19
3003 O 110.3 41.4 30 33
H12 131 124.1 9 11
H14 151.7 144.8 3 7
5052 O 193.1 89.6 20 21
H32 227.5 193.1 7 10
H34 262 213.7 6 8
5083 O 275.8 144.8 21 25
H32 282.7 151.7 20 21
H34 330.9 255.1 11 14
6061 O 124.1 55.2 25 26
T4 241.3 144.8 22 24
T6 310.3 275.8 12 17
7075 O 227.5 103.4 16 18
T6 572.3 503.3 11 12


Test

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator

Provided Service

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator

Recommend Products

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator

Application

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator

Packing & Shipping

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator
Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator

Certificate

Industrial Pure Aluminium Pipe 1050 1060 SCH 40 Polished Silver Round For Refrigerator

FAQ


Q:Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.


Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.


Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
