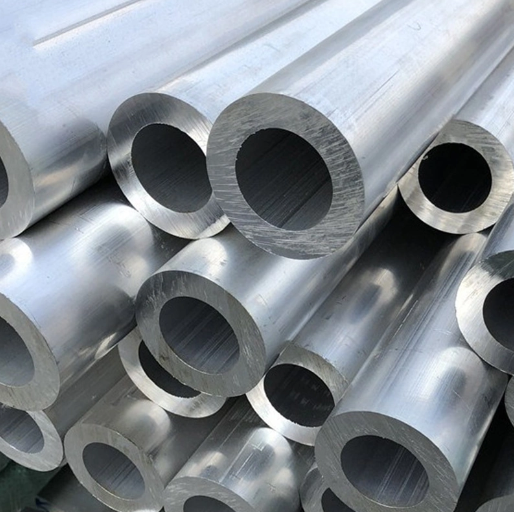

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized
Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized
Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized
Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized
Specifications
Brand Name :
CHINALCO
Model Number :
1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Certification :
ISO9001
Place of Origin :
Jiangsu China
MOQ :
1ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Ton/Tons per Month
Delivery Time :
About 7-10 days,depends on the specific order
Packaging Details :
Exporting package/wooden box package/Or per customers’requirement
Product Name :
Aluminum pipe
Material :
1050,1060,1070,1100
Type :
Seamless
Thickness :
0.6-20mm or as required
Diameter :
2-200mm or as required
Packing :
Standard seaworthy packing or as required
Description

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized

Product Description

A high-strength hard aluminum that can be strengthened by heat treatment. It has moderate plasticity in annealing, just quenching and hot state, good spot welding weldability, and the aluminum tube has a tendency to form intergranular cracks when using gas welding and argon arc welding; the aluminum tube has good machinability after quenching and cold work hardening, but poor in the annealed state. The corrosion resistance is not high, and anodizing and painting methods or an aluminum layer on the surface are often used to improve corrosion resistance. It can also be used as a mold material.

Alloy 6060 6063 6061 6005A 6082 7075
Temper T66 T5/T6 T6/T651 T6/T651 T6/T651 T6/T651
Standard EN755-9; DIN GB5237-2008
EN755-3/DIN
ASTMB221		 GB6892-2008
ASTMB221
AMS-QQA-4574		 GB6892-2008
ASTMB221
AMS-QQA-4574		 GB6892-2008
ASTMB221
AMS-QQA-4574		 GB6892-2008
ASTMB221
AMS-QQA-4574
Certification ISO9001-2008 ISO9001-2008 ISO9001-2008 ISO9001-2008 ISO9001-2008 ISO9001-2008
Surface Anodized, powder coated, wooden grain, polished, brushed, PVDF Coating.
Color Anodizing Silver, bronze, champagne, titanium, nickel, golden yellow, etc
The anodized film thickness is over 10um
Powder coating White, Black, Grey, Green, Blue, Yellow, Red and etc.
The powder coated thickness is over 80um.
Deep Processing Fabrication 90 degree, 45degree and any degree Cutting, punching, drilling, bending, weld, mill, CNC, etc.


Product Detail

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized

Chemical Compositon

Alloy
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Zr
Impurity

Al
2014
0.5-1.2
0.7
3.9-5.0
0.4-1.2
0.2-0.8
0.1
0.25
0.15
-
0.15
Rest
2017
0.2-0.8
0.7
3.5-4.5
0.4-1.0
0.4-0.8
0.1
0.25
0.15
-
0.15
Rest
2024
0.5
0.5
3.8-4.9
0.3-0.9
1.2-1.8
0.1
0.25
0.15
-
0.15
Rest
5052
0.25
0.4
0.1
0.1
2.2-2.8
0.15-0.35
0.1
-
-
0.15
Rest
5056
0.3
0.4
0.1
0.05-0.20
4.5-5.6
0.05-0.20
0.1
-
-
0.15
Rest
5083
0.4
0.4
0.1
0.40-1.0
4.0-4.9
0.05-0.25
0.25
0.15
-
0.15
Rest
5754
0.4
0.4
0.1
0.5
2.6-3.6
0.3
0.2
0.15
-
0.15
Rest
6061
0.4-0.8
0.70
0.15-0.40
0.15
0.8-1.2
0.04-0.35
0.25
0.15
-
0.15
Rest
6063
0.2-0.6
0.35
0.1
0.1
0.45-0.9
0.1
0.1
0.1
-
0.15
Rest
6082
0.7-1.3
0.5
0.1
0.4-1.0
0.6-1.2
0.25
0.2
0.1
-

Physical Properties

Physical Properties Tensile Strength Yield Strength Elongation(%)
Grade Hardness (MPa) (MPa) 0.25-1.25mm 1.26-3.0mm
1100 O 89.6 34.5 30 6
H12 110.3 103.4 4 12
H14 124.1 117.2 3 10
2024 O 186.2 75.8 18 20
T3 482.6 344.7 16 18
T4 468.8 324.1 20 19
3003 O 110.3 41.4 30 33
H12 131 124.1 9 11
H14 151.7 144.8 3 7
5052 O 193.1 89.6 20 21
H32 227.5 193.1 7 10
H34 262 213.7 6 8
5083 O 275.8 144.8 21 25
H32 282.7 151.7 20 21
H34 330.9 255.1 11 14
6061 O 124.1 55.2 25 26
T4 241.3 144.8 22 24
T6 310.3 275.8 12 17
7075 O 227.5 103.4 16 18
T6 572.3 503.3 11 12


Test

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized

Provided Service

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized

Recommend Products

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized

Application

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized

Packing & Shipping

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized
Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized

Certificate

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm Mill Finish Anodized

FAQ


Q:Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.


Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.


Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
