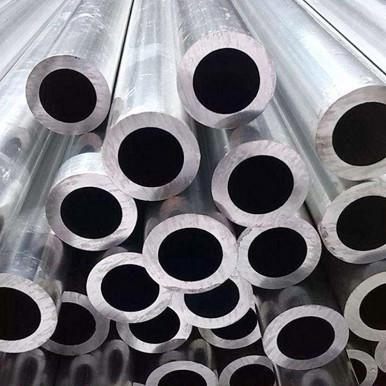

ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube
ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube
ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube
ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube
Specifications
Brand Name :
Lianzhong
Model Number :
2024
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Ton/Tons per Month
Delivery Time :
About 7-10 days,depends on the specific order
Packaging Details :
Exporting package/wooden box package/Or per customers’requirement
Key Word :
Aluminum pipe
Material :
2024
Thickness :
0.6-20mm or as required
Diameter :
20-168mm or as required
Shape :
Round,Square,Rectangle,Triangle,Hexagon,Octagon,Oval,or as per the drawings and samples
Surface :
Mill Finish,Anodize or as required
Inspection :
Third part Inspection is acceptable.
Description

ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube

Product Description

2024T4 round tubing has high strength and excellent fatigue resistance which is used to advantage on structures and parts where a good strength-to-weight ratio is desired. Arc or gas welding in generally NOT recommended; although this alloy may be spot, seam or flash welded. Tubing is wrought – meaning neither annodized nor alclad. Maximum length 12 ft. Can be cut to length.
Item
Aluminum Pipe
Standard
GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Material 2024
Temper T4
Size
Thickness
0.6-20mm or as required
Diameter
20-168mm or as required
Length
2000mm,2440mm,6000mm,or as required.
Quality control
Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Surface
Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc


Product Detail

ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round TubeASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube

Chemical Compositon

Alloy
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Zr
Impurity

Al
2014
0.5-1.2
0.7
3.9-5.0
0.4-1.2
0.2-0.8
0.1
0.25
0.15
-
0.15
Rest
2017
0.2-0.8
0.7
3.5-4.5
0.4-1.0
0.4-0.8
0.1
0.25
0.15
-
0.15
Rest
2024
0.5
0.5
3.8-4.9
0.3-0.9
1.2-1.8
0.1
0.25
0.15
-
0.15
Rest
5052
0.25
0.4
0.1
0.1
2.2-2.8
0.15-0.35
0.1
-
-
0.15
Rest
5056
0.3
0.4
0.1
0.05-0.20
4.5-5.6
0.05-0.20
0.1
-
-
0.15
Rest
5083
0.4
0.4
0.1
0.40-1.0
4.0-4.9
0.05-0.25
0.25
0.15
-
0.15
Rest
5754
0.4
0.4
0.1
0.5
2.6-3.6
0.3
0.2
0.15
-
0.15
Rest
6061
0.4-0.8
0.70
0.15-0.40
0.15
0.8-1.2
0.04-0.35
0.25
0.15
-
0.15
Rest
6063
0.2-0.6
0.35
0.1
0.1
0.45-0.9
0.1
0.1
0.1
-
0.15
Rest
6082
0.7-1.3
0.5
0.1
0.4-1.0
0.6-1.2
0.25
0.2
0.1
-

Physical Properties

Physical Properties Tensile Strength Yield Strength Elongation(%)
Grade Hardness (MPa) (MPa) 0.25-1.25mm 1.26-3.0mm
1100 O 89.6 34.5 30 6
H12 110.3 103.4 4 12
H14 124.1 117.2 3 10
2024 O 186.2 75.8 18 20
T3 482.6 344.7 16 18
T4 468.8 324.1 20 19
3003 O 110.3 41.4 30 33
H12 131 124.1 9 11
H14 151.7 144.8 3 7
5052 O 193.1 89.6 20 21
H32 227.5 193.1 7 10
H34 262 213.7 6 8
5083 O 275.8 144.8 21 25
H32 282.7 151.7 20 21
H34 330.9 255.1 11 14
6061 O 124.1 55.2 25 26
T4 241.3 144.8 22 24
T6 310.3 275.8 12 17
7075 O 227.5 103.4 16 18
T6 572.3 503.3 11 12


Provided Service

ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube

Recommended Products

ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube

Application

ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube

Packing & Shipping

ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube
ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube

Certificate

ASTM 2024 T4 Aluminium Alloy Pipe OD 20- 168mm Anodized Round Seamless Round Tube

FAQ


Q:Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.


Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.


Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
