Corrosion Resistant Road Sign 5052 H32 Round Aluminum Plate
Corrosion Resistant Road Sign 5052 H32 Round Aluminum Plate
Specifications
Brand Name :
Dongchong
Model Number :
5052
Certification :
ISO9001
Place of Origin :
Chongqing,Dongchong
MOQ :
500-5000KG for different product
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000tons per month
Delivery Time :
5-20 Days
Packaging Details :
Wooden pallet , Wooden Box
Alloy :
5052
Temper :
H32,O,H22,H12,H14,H16,H18 ,H24
Color :
Gold, silver, rose gold, champagne or customized
Usage :
Road Sign
Sample :
free
Package :
Wooden box/Pallets
Description

Cheaper Professional 5052 H32 0.5~10 mm Aluminium Circle Sheet Used for for Road Sign

Product Description

The 5052 aluminum alloy belongs to the Al-Mg series alloy and has a wide range of applications, especially the construction industry is inseparable from this alloy and is the most promising alloy. Good corrosion resistance, excellent weldability, good cold workability, and moderate strength. The main alloy element of 5052 aluminum alloy is magnesium, which has good forming performance, corrosion resistance, weldability, and medium strength.

It is used to manufacture aircraft fuel tanks, fuel pipes, and sheet metal parts for transportation vehicles and ships, instruments, street lamp brackets and Rivets, hardware products, electric appliance shells, etc.

Chemical Composition

ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 0.15 rest
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 __ __ 0.25 __ __ 0.05 0.15 rest
3104 0.6 0.8 0.05-0.25 0.8-1.4 0.8-1.3 __ __ 0.25 0.1 __ 0.05 0.15 rest
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 __ 0.4 0.1 __ 0.05 0.15 rest
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 __ 0.1 __ __ 0.05 0.15 rest
5A06 ≤0.40 0.000～0.400 ≤0.10　 0.50～0.8　 5.8～6.8　 __ 0.0001～0.005　 ≤0.20 0.02～0.10　 __ 0.05 0.1 rest
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 __ 0.25 __ __ 0.05 0.15 rest
5050 0.4 0.7 0.2 0.1 1.1-1.8 0.1 __ 0.25 __ __ 0.05 0.15 rest
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-0.35 0.25 0.2 0.05 0.15 rest
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 __ 0.2 0.15 __ 0.05 0.15 rest
5454 0.25 0.4 0.1 0.5-1.0 2.4-3.0 0.05-0.2 0.25 0.2 0.05 0.15 rest
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1 0.05 0.15 rest
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 _ 0.25 0.15 __ 0.05 0.15 rest
5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 0.05 0.15 rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 0.05 0.15 0.1 0.05 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 __ 0.25 0.15 __ 0.05 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 __ 0.1 0.1 __ 0.05 0.15 rest

Mechanical properties:

Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
5052 H111 O >0. 20 — 0. 50 170 — 215 65 12
>0. 50 — 1. 50 14
>1.55 — 3.00 16
>3. 00 — 6. 00 18
>6.00 — 12. 50 165-215 19
>12. 50 — 50.00 —
H12 >0. 20 — 0. 50 210 — 260 160 4
>0.5-1.5 5
>1.50 —3.00 6
>3, 00 — 6. 00 8
H14 >0. 20 — 0. 50 230-280 180 3
>0.50-1.50 3
>1. 50 -3. 00 4
>3.00 — 6.00 4
H16 >0. 20 — 0, 50 250—300 210 2
>0. 50 — 1. 50 3
>1. 5- 3.0 3
>3.00 — 4. 00 3
H18 >0. 20-0.50 270 240 1
>0. 50 — 1. 50 2
> 1.50 — 3.00 2
H22 H32 >0. 20—0. 50 210 — 260 130 5
>0. 50-1.50 6
>1.50 — 3.00 7
>3. 00 — 6. 00 10
H24 H34 >0. 20 — 0. 50 230 — 280 150 4
>0.50 — 1. 50 5
>1,50 — 3.00 6
>3.00 — 6.00 7
H26 H36 >0. 20 — 0.50 250 — 300 180 3
>0. 50 — 1, 50 4
>1.50—3.00 5
>3. 00—4. 00 6
H38 H28 >0. 20 — 0, 50 270 210 3
>0. 50~1. 5 3
>1. 50 — 3. 00 4
H112 >6.00—12. 50 190 80 7
>12. 50 — 40,00 170 70
>40, 00 — 80, 00 170 70

Product Aluminum Circle
Alloy 1050, 1060, 1100, 1200, 3003, 5052
Temper HO, H12, H14, H18, H22
Thickness 0.40-4.0mm
Diameter 150-1200mm
Color Silver, or as per customer’s requirement
Application The product is widely used in Traffic sign. Deep drawing for making cookware, cooking-utensil, non-stick pans/pots, and kitchens.
Quality Control ISO 9001:2008,SGS,QC
Notice Specific requirement of alloy temper or specification can be produced as your request.

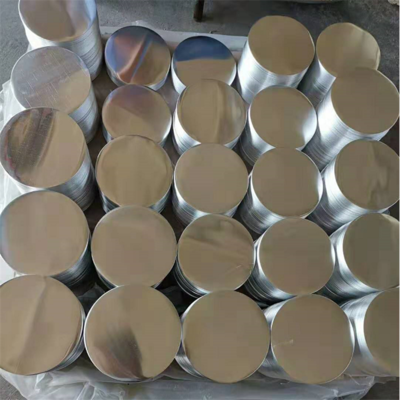

Product Photo

Corrosion Resistant Road Sign 5052 H32 Round Aluminum Plate

Corrosion Resistant Road Sign 5052 H32 Round Aluminum Plate

Company Introduction

Chongqing Dongchong Aluminum Co,.Ltd.established in 2002 and have been in aluminium indurstry for more than 17 years.After more than ten years of rapid development, it now has more than 100 employees, more than 15,000 square meters of standard factory buildings and more than 2,000 square meters of office area.

The evelopment concept of corporate Innovation and Practicality Beyond Self-Pursuing Excellence. Dongchong's Mission is While creating value for the society, we should take effective measures to increase employees'income, make them have more time and wealth to control, and constantly improve employees' happiness index. Our business philosophy is Honesty, Cooperation and Win-win .Service Concept is "It is our duty to satisfy all our customers.It's our task for all our customers to praise Dongchong".

We mainly provide Aluminum Alloy Sheet ,Aluminum Circle Sheet ,Diamond Aluminum Sheet ,Aluminum Flat Strips ,Aluminum Alloy Plate,Aluminum Foil ,Aluminum Checker Plate,Aluminum Coil Strip ,Aluminum Hollow Pipe ,Aluminum Extrusion Profiles ,Custom Aluminum Panels ,Aluminum Solid Bar ,Aluminum Cabin Luggage.

We are manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also Hot-continous Rolling Mill, Saw Cutting ,Extrusion Machine ,High Speed Slitting Machine Unit ,Small Precision Slitting Machine Unit ,2750mm Width Crosscutting Machine ,1400mm Width Crosscutting Machine, Small Crosscutting Machine ,Embossing Machine ,Aluminum Foil Slitting Machine,Annealing Furnace, and so on.

Corrosion Resistant Road Sign 5052 H32 Round Aluminum Plate

Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machine Uncoil(MM) Finished size(MM) Slitting Width(MM)
ID OD Width Thickness ID OD Above 0.5mm≥ 20mm
Φ 400 ≤ 1800 ≤ 1600 0.5-4.5 Φ 400 ≤ 1700(normal)
Φ 500 Φ500(normal)
Φ 600
Aluminum foil Slitting machine Uncoil(mm) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 76 ≤ 550 ≤ 1200 0.08-0.12 Φ76Φ76 ≤ 550(normal)
1450mm Crosscutting machine Uncoil(MM) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 505 ≤ 1780 ≤ 600 0.1-1.5

Φ150
Φ300
Φ400

Φ500

 ≤ 1700(normal) 6-600
Φ 605
