1220 X 2440mm Anodized Brushed 7075 Aluminum Plate
1220 X 2440mm Anodized Brushed 7075 Aluminum Plate
1220 X 2440mm Anodized Brushed 7075 Aluminum Plate
1220 X 2440mm Anodized Brushed 7075 Aluminum Plate
Specifications
Brand Name :
Dongchong
Model Number :
7075
Certification :
ISO9001
Place of Origin :
Chongqing,Dongchong
MOQ :
500-5000KG for different product
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000tons per month
Delivery Time :
5-20 Days
Packaging Details :
Wooden pallet , Wooden Box
Alloy :
7075
Temper :
T 3,T 4,T 5,T 651
Color :
Gold, silver, rose gold, champagne or customized
Usage :
Mechanical equipment
Sample :
free
Package :
Wooden box/ pallets
Description

7075 1220 x 2440 mm Sandblasted Hard Anodized Brushed Aluminium Alloy Sheet For Mechanical Equipment

Product Description

7075 aluminum alloy is a cold-treated forged alloy with high strength, far superior to mild steel. General corrosion resistance, good mechanical properties and anode reaction. Withstand heat treatment, can reach very high strength characteristics. High strength, far better than any mild steel. This alloy has good mechanical properties and anode reaction. Representative uses are aerospace, mold processing, mechanical equipment, tooling fixtures, especially for the manufacture of aircraft structures and other high-stress structures that require high strength and strong corrosion resistance.

After anodizing, the surface of the aluminum can produce a few microns-hundreds of microns of oxide film. Compared with the natural oxide film of aluminum alloy, its corrosion resistance, wear resistance and decorative properties have been significantly improved and improved. In fact, the direct current sulfuric acid anodic oxidation method is the most common application, because it is suitable for aluminum and most Anodizing of aluminum alloy; thicker film, hard and wear-resistant, better corrosion resistance after sealing; film colorless and transparent, strong adsorption capacity, easy to color; lower processing voltage, less power consumption ; The treatment process does not need to change the voltage cycle, which is conducive to continuous production and practical operation automation

Chemical Composition

ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
1050 0.25 0.4 0.05 0.05 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.5
1060 0.25 0.35 0.05 0.03 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.6
1070 0.2 0.25 0.04 0.03 0.03 __ __ 0.04 0.03 __ 0.03 __ 99.7
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 0.15 rest
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 __ 0.1 __ __ 0.05 0.15 rest
5A06 ≤0.40 0.000～0.400 ≤0.10　 0.50～0.8　 5.8～6.8　 __ 0.0001～0.005　 ≤0.20 0.02～0.10　 __ 0.05 0.1 rest
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 __ 0.25 __ __ 0.05 0.15 rest
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 __ 0.2 0.15 __ 0.05 0.15 rest
5454 0.25 0.4 0.1 0.5-1.0 2.4-3.0 0.05-0.2 0.25 0.2 0.05 0.15 rest
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 _ 0.25 0.15 __ 0.05 0.15 rest
5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 0.05 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 __ 0.25 0.15 __ 0.05 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 __ 0.1 0.1 __ 0.05 0.15 rest
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 __ 5.1-6.1 0.2 __ 0.05 0.15 rest


Mechanical properties:

Tensile strength: 524Mpa

0.2% yield strength: 455Mpa

Modulus of elasticity E: 71GPa

Hardness: 150HB

Density: 2.81g / cm ^ 3

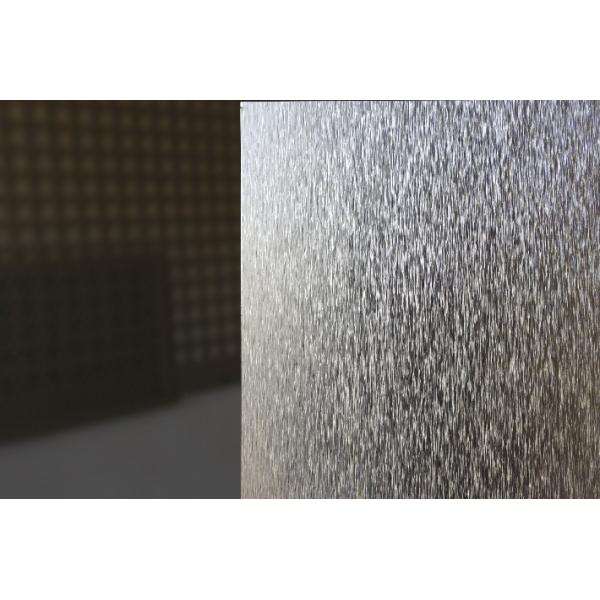

Product Photo

1220 X 2440mm Anodized Brushed 7075 Aluminum Plate

1220 X 2440mm Anodized Brushed 7075 Aluminum Plate

Company Introduction

Chongqing Dongchong Aluminum Co,.Ltd.established in 2002 and have been in aluminium indurstry for more than 17 years.After more than ten years of rapid development, it now has more than 100 employees, more than 15,000 square meters of standard factory buildings and more than 2,000 square meters of office area.

The evelopment concept of corporate Innovation and Practicality Beyond Self-Pursuing Excellence. Dongchong's Mission is While creating value for the society, we should take effective measures to increase employees'income, make them have more time and wealth to control, and constantly improve employees' happiness index. Our business philosophy is Honesty, Cooperation and Win-win .Service Concept is "It is our duty to satisfy all our customers.It's our task for all our customers to praise Dongchong".

We mainly provide Aluminum Alloy Sheet ,Aluminum Circle Sheet ,Diamond Aluminum Sheet ,Aluminum Flat Strips ,Aluminum Alloy Plate,Aluminum Foil ,Aluminum Checker Plate,Aluminum Coil Strip ,Aluminum Hollow Pipe ,Aluminum Extrusion Profiles ,Custom Aluminum Panels ,Aluminum Solid Bar ,Aluminum Cabin Luggage.

1220 X 2440mm Anodized Brushed 7075 Aluminum Plate

Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machine Uncoil(MM) Finished size(MM) Slitting Width(MM)
ID OD Width Thickness ID OD Above 0.5mm≥ 20mm
Φ 400 ≤ 1800 ≤ 1600 0.5-4.5 Φ 400 ≤ 1700(normal)
Φ 500 Φ500(normal)
Φ 600
Aluminum foil Slitting machine Uncoil(mm) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 76 ≤ 550 ≤ 1200 0.08-0.12 Φ76Φ76 ≤ 550(normal)
1450mm Crosscutting machine Uncoil(MM) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 505 ≤ 1780 ≤ 600 0.1-1.5

Φ150
Φ300
Φ400

Φ500

 ≤ 1700(normal) 6-600
Φ 605
Annealling Furnace Furnace Temperature Furnace Size
≤440°C 3200*2000*2100
Saw Cutting Thickness(mm) Width (mm) Length (mm)
Size Size Tolerance Size
≤200 ≤2000 ±0.3 ≤3000
Embossing Machine Type Thickness(MM) Width(MM) Embossing height(MM) Tolerance(MM) Type Thickness(MM)
Single side ball 0.3-1.0 ≤700 ≤3 ±0.1 two-side ball 0.3-1.0
