Garbage Box Thickness 10mm H112 5083 Flat Aluminum Sheets
Garbage Box Thickness 10mm H112 5083 Flat Aluminum Sheets
Garbage Box Thickness 10mm H112 5083 Flat Aluminum Sheets
Garbage Box Thickness 10mm H112 5083 Flat Aluminum Sheets
Specifications
Brand Name :
Dongchong
Model Number :
5083
Certification :
ISO9001
Place of Origin :
Chongqing,Dongchong
MOQ :
500-5000KG for different product
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000tons per month
Delivery Time :
5-20 Days
Packaging Details :
Wooden pallet , Wooden Box
Alloy :
5083
Temper :
H112,H18,H16,H111, H116, H14, H24, H32
Color :
Gold, silver, rose gold, champagne or customized
Usage :
Garbage box
Package :
Wooden box/ pallets
Sample :
free
Description

5083 H112 3~10 mm Thickness Aluminium Alloy Sheet for Garbage Box

Product Description

The 5083 aluminum alloy is a high-magnesium alloy with good strength, good corrosion resistance, and machinability among non-heat treatable alloys. The surface is beautiful after anodizing. The arc welding performance is good. The main alloying element in 5083 alloy is magnesium, which has good corrosion resistance and weldability, as well as medium strength. The excellent corrosion resistance makes the 5083 alloy widely used in maritime applications such as ships, as well as automotive, aircraft welding parts, subway light rail, pressure vessels (such as liquid tank trucks, refrigerated trucks, refrigerated containers), refrigeration devices, TV towers, which require strict fire protection. Drilling equipment, transportation equipment, missile parts, armor, etc.

Chemical Composition

ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 0.15 rest
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 __ __ 0.25 __ __ 0.05 0.15 rest
3104 0.6 0.8 0.05-0.25 0.8-1.4 0.8-1.3 __ __ 0.25 0.1 __ 0.05 0.15 rest
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 __ 0.4 0.1 __ 0.05 0.15 rest
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 __ 0.1 __ __ 0.05 0.15 rest
5A06 ≤0.40 0.000～0.400 ≤0.10　 0.50～0.8　 5.8～6.8　 __ 0.0001～0.005　 ≤0.20 0.02～0.10　 __ 0.05 0.1 rest
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 __ 0.25 __ __ 0.05 0.15 rest
5050 0.4 0.7 0.2 0.1 1.1-1.8 0.1 __ 0.25 __ __ 0.05 0.15 rest
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-0.35 0.25 0.2 0.05 0.15 rest
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 __ 0.2 0.15 __ 0.05 0.15 rest
5454 0.25 0.4 0.1 0.5-1.0 2.4-3.0 0.05-0.2 0.25 0.2 0.05 0.15 rest
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1 0.05 0.15 rest
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 _ 0.25 0.15 __ 0.05 0.15 rest
5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 0.05 0.15 rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 0.05 0.15 0.1 0.05 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 __ 0.25 0.15 __ 0.05 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 __ 0.1 0.1 __ 0.05 0.15 rest

Aluminium Material Grade
1)1000series aluminium /Pure Aluminum/Pure Aluminium:1050,1060,1070,1080,1100,1350,etc
2)2000series aluminium alloy/Hard Aluminum/Hard Aluminium/Aluminum-Copper Alloy/ Aluminium-Copper Alloy:2011,2014,2017,2024,etc
3)3000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium/ Aluminum-Manganese Alloy:3002,3003,3104,3204,3030,etc
4)5000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium /Aluminum-Magnesium Alloy:5005,5025,5052,5040,5054,5056,5083,5152,etc
5)6000series aluminium alloy / Aluminum-Magnesium-Silicon Alloy /Aluminium-Magnesium-Silicon Alloy /:6101,6003,6061,6063,6020,6201,6262,6082,etc
6)7000series aluminium alloy/ Aluminum-Zinc Alloy/ Aluminium-Zinc Alloy:7003,7005,7050,7075,etc
7)8000series aluminium alloy:8011,etc

Mechanical properties:

Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
5083 H111 O >0.20 — 0. 50 275-350 125 11
>0. 50—1.50 12
>1.50 — 3.00 13
>3.00 — 6.3 15
6.3 — 12. 50 270-345 115 16
>12. 50 — 50.00 —
>50. 00 — 80. 00 —
H12 >0. 20 — 0. 50 315 — 375 250 3
>0. 50 — 1. 50 4
>1,50 — 3.00 5
>3. 00 — 6. 00 6
I-I14 >0. 20 — 0. 50 340 — 400 280 2
>0, 50—1.50 3
>1.50 — 3,00 3
>3.00 — 6.00 3
H16 >0.20 — 0. 50 360—420 300 1
>0. 50 — 1.50 2
>1.50 — 3.00 2
>3.00—4.00 2
H22 H32 >0. 20 — 0. 50 305 — 380 215 5
>0. 50—1.50 6
>1.50—3.00 7
>3.00 — 6.00 8
H34 H24 >0. 20 — 0. 50 340—400 250 4
>0. 50—1.50 5
>1.50—3.00 6
>3.00 — 6.00 7
H116 H321 >1.50—3.00 305 215 8
>3.00 — 6.00 10
>12. 50 — 40, 00 12
>40. 00 — 80. 00 —
>0. 20 — 0. 50 —
H36 H26 >0. 50—1.50 360 — 420 280 3
>1.50—3.00 3
>3.00 — 4.0 3
H112 >6.00 — 12.50 275 125 12
>12. 50 — 40, 00 275 125 —
>40. 00 — 80. 00 270 115 —
>40-120 260 110 —

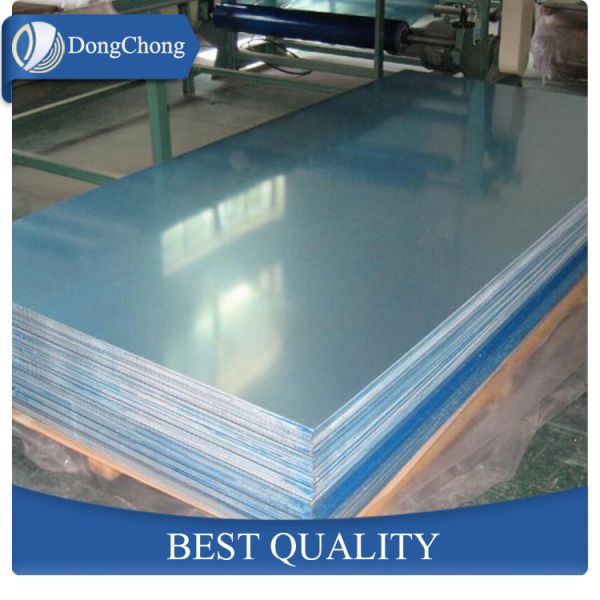

Product Photo

Garbage Box Thickness 10mm H112 5083 Flat Aluminum Sheets

Garbage Box Thickness 10mm H112 5083 Flat Aluminum Sheets

Company Introduction

Chongqing Dongchong Aluminum Co,.Ltd.established in 2002 and have been in aluminium indurstry for more than 17 years.After more than ten years of rapid development, it now has more than 100 employees, more than 15,000 square meters of standard factory buildings and more than 2,000 square meters of office area.

The evelopment concept of corporate Innovation and Practicality Beyond Self-Pursuing Excellence. Dongchong's Mission is While creating value for the society, we should take effective measures to increase employees'income, make them have more time and wealth to control, and constantly improve employees' happiness index. Our business philosophy is Honesty, Cooperation and Win-win .Service Concept is "It is our duty to satisfy all our customers.It's our task for all our customers to praise Dongchong".

Garbage Box Thickness 10mm H112 5083 Flat Aluminum Sheets

Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machine Uncoil(MM) Finished size(MM) Slitting Width(MM)
ID OD Width Thickness ID OD Above 0.5mm≥ 20mm
Φ 400 ≤ 1800 ≤ 1600 0.5-4.5 Φ 400 ≤ 1700(normal)
Φ 500 Φ500(normal)
Φ 600
Aluminum foil Slitting machine Uncoil(mm) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 76 ≤ 550 ≤ 1200 0.08-0.12 Φ76Φ76 ≤ 550(normal)
1450mm Crosscutting machine Uncoil(MM) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 505 ≤ 1780 ≤ 600 0.1-1.5

Φ150
Φ300
Φ400

Φ500

 ≤ 1700(normal) 6-600
Φ 605
Annealling Furnace Furnace Temperature Furnace Size
≤440°C 3200*2000*2100
Saw Cutting Thickness(mm) Width (mm) Length (mm)
Size Size Tolerance Size
≤200 ≤2000 ±0.3
