High Plasticity 1070 H22 Color Coated Aluminium Coil
High Plasticity 1070 H22 Color Coated Aluminium Coil
High Plasticity 1070 H22 Color Coated Aluminium Coil
High Plasticity 1070 H22 Color Coated Aluminium Coil
High Plasticity 1070 H22 Color Coated Aluminium Coil
High Plasticity 1070 H22 Color Coated Aluminium Coil
Specifications
Brand Name :
Dongchong
Model Number :
1070
Certification :
MSDS,MTC,REACH,ROHS.FDA,SGS,ect
Place of Origin :
Chongqing,Dongchong
MOQ :
500-5000KG for different product
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000tons per month
Delivery Time :
5-20 Days
Packaging Details :
Wooden pallet , Wooden Box
Alloy :
1070
Temper :
O,H18,H24,H34,H38,H111,H112,F,H16.H28
Color :
Gold, silver, rose gold, champagne or customized
Usage :
Architectural Decoration
Sample :
Freely
Size :
Customization
Protection :
Film on one side or both side , paper interleave
Description

1070 H22 6mm-2500mm Color Coated Aluminium Coil Strip For Architectural Decoration

Product Description

1070 Industrial pure aluminum has high plasticity, corrosion resistance, good conductivity and thermal conductivity, but low strength, can accept contact welding, gas welding. Many use its advantages to make some structures with specific performance, such as aluminum foil made of Shim and capacitor, tube isolation net, wire, cable protective cover, net, wire core and aircraft ventilation system parts and decorative parts.

According to different treatment methods, aluminum alloy coil can be divided into Mirror surface aluminum plate, Brushed aluminum plate, Anodized aluminum plate, PE coated aluminum plate, PVDF coated aluminum plate etc.

Aluminium Material Grade
1) 1000series aluminium /Pure Aluminum/Pure Aluminium:1050,1060,1070,1080,1100,1350,etc
2) 2000series aluminium alloy/Hard Aluminum/Hard Aluminium/Aluminum-Copper Alloy/ Aluminium-Copper Alloy:2011,2014,2017,2024,etc
3) 3000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium/ Aluminum-Manganese Alloy:3002,3003,3104,3204,3030,etc
4) 5000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium /Aluminum-Magnesium Alloy:5005,5025,5052,5040,5054,5056,5083,5152,etc
5) 6000series aluminium alloy / Aluminum-Magnesium-Silicon Alloy /Aluminium-Magnesium-Silicon Alloy /:6101,6003,6061,6063,6020,6201,6262,6082,etc
6) 7000series aluminium alloy/ Aluminum-Zinc Alloy/ Aluminium-Zinc Alloy:7003,7005,7050,7075,etc
7) 8000series aluminium alloy:8011,etc

Chemical Composition

ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
1035 0.35 0.6 0.1 0.05 0.05 __ __ 0.1 0.03 __ 0.03 __ 99.35
1100 0.95 0.05-0.2 0.05 __ __ __ 0.1 __ __ 0.05 0.15 99
1050 0.25 0.4 0.05 0.05 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.5
1060 0.25 0.35 0.05 0.03 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.6
1070 0.2 0.25 0.04 0.03 0.03 __ __ 0.04 0.03 __ 0.03 __ 99.7
1080 0.15 0.15 0.03 0.02 0.02 __ __ 0.03 0.03 __ 0.02 __ 99.8
1045 0.3 0.45 0.1 0.05 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.45
1145 0.15 0.3-0.5 0.02 0.05 0.05 __ __ 0.1 0.03 __ 0.03 __ 99.35
1200 1 0.05 0.05 __ __ __ 0.1 0.05 __ 0.05 0.15 99
1235 0.65 0.05 0.05 0.05 __ 　 0.1 0.06 __ 0.03 __ 99.35

Mechanical properties:

Tensile strength σb (MPa): 85~150

Conditional yield strength σ0.2 (MPa): 20~85

Elongation 50mm: 1~30

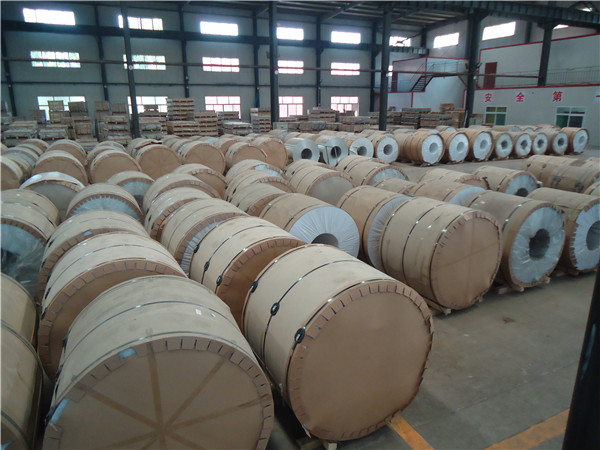

Product Photo

High Plasticity 1070 H22 Color Coated Aluminium Coil

High Plasticity 1070 H22 Color Coated Aluminium Coil

Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.

High Plasticity 1070 H22 Color Coated Aluminium Coil

Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machine Uncoil(MM) Finished size(MM) Slitting Width(MM)
ID OD Width Thickness ID OD Above 0.5mm≥ 20mm
Φ 400 ≤ 1800 ≤ 1600 0.5-4.5 Φ 400 ≤ 1700(normal)
Φ 500 Φ500(normal)
Φ 600
Aluminum foil Slitting machine Uncoil(mm) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 76 ≤ 550 ≤ 1200 0.08-0.12 Φ76Φ76 ≤ 550(normal)
1450mm Crosscutting machine Uncoil(MM) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 505 ≤ 1780 ≤ 600 0.1-1.5

Φ150
Φ300
Φ400

Φ500

 ≤ 1700(normal) 6-600
Φ 605
Annealling Furnace Furnace Temperature Furnace Size
≤440°C 3200*2000*2100
Saw Cutting Thickness(mm) Width (mm) Length (mm)
Size Size Tolerance Size
≤200 ≤2000 ±0.3 ≤3000
Embossing Machine Type Thickness(MM) Width(MM) Embossing height(MM) Tolerance(MM) Type Thickness(MM)
Single side ball 0.3-1.0 ≤700 ≤3 ±0.1 two-side ball 0.3-1.0

1. How long will it take to execute my order?
This depends on the the order quantity and models. our normal lead time is 7-15 working days.,but we have many models in stock,We will let you know the estimated lead time after payment ASAP.
2. How much will the shipping cost be?
This will depend on the size and weight of your order and the method of shipping,
When inquired about shipping charges, we will need the detailed infos such as models and qty, and the shipping method you prefer.
3. Do you provide samples?
Yes, we can provide samples of all the items listed, usually ask for a small MOQ,
We can send the samples by DHL, FEDEX, EMS, UPS or to your warehouse,
4. Do you have products in stock?
we have stock, we provide fast shipping for most products
5. Can I visit you?
Sure, Pls let us know if you have a plan to visit our company, we will arrange it for you.
6. How to contact you guys?
Welcome to contact us online in Trademanager and Skype,
Or Send us email, your email will be guaranteed reply within 24 hours.
