Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm
Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm
Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm
Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm
Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm
Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm
Specifications
Brand Name :
Dongchong
Model Number :
1000-8000series
Certification :
ISO,MTC,MSDS,ROHS,REACH,SGS
Place of Origin :
Chongqing ,Dongchong
MOQ :
500-5000kg for different product
Price :
negotiable
Payment Terms :
TT/LC
Supply Ability :
10000 Tons per month
Delivery Time :
2-3days for stock , 7-10days for normal size .25-30days for customized size
Packaging Details :
Wooden pallet , Wooden Box
Application :
construction
Hardness :
H12/22 H14/24 H16/26 H18 H19
Material :
DC,CC
Surface :
polish, mirror ,mill finish
color :
Silver,bronze,black,gold,blue,grey,champagne,bright,etc
sample :
provided
delivery date :
3-5days for stock , 7-10 days for normal use, 25-30days for customized
packing :
eye to eye , eye to sky , wooden pallet , wooden box ,paper box
Description

Professional Aluminium Alloy flat Strip with narrow Width 6mm -1400mm 3003 3104 3105

Product Description

Technical Property and chemical component table

Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
3003 O H111 >0. 20—0. 50 95-135 35 15
>0. 50 — 1. 50 17
>1. 50 — 3. 00 20
>3.00 — 6. 00 23
>6.0-12.5 24
>12.5-50
H12 >0. 20—0. 50 120-160 90 3
>0. 50 — 1. 50 4
>1.50 — 3.00 5
>3. 00 — 6. 00 6
H14 >0. 20 — 0. 50 145-195 125 2
>0. 5- 50 2
>1. 50 — 3. 00 3
>3. 00—6.0 4
H16 >0. 20 — 0. 50 170-210 140 2
>0.50 — 1.50 3
>1. 50—4. 00 3
H18 >0. 20 — 0. 50 190 170 1
>0. 50—1. 50 2
>1. 50 — 3. 00 2
H22 >0. 20—0. 50 120-160 80 6
>0. 50 — 1.50 7
>1.50 — 3.00 8
>3. 0—6.0 9
H24 >0. 20—0. 50 145-195 115 4
>0. 50 — 1.50 4
>1.50 —3. 00 5
H26 >0. 20 — 0. 50 170-210 140 2
>0.50—1.50 3
>1.50 — 3. 00 3
H28 >0,20 — 0,50 190 160 2
>0. 50〜L 50 2
>1. 50—3. 00 3
ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 0.15 rest
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 __ __ 0.25 __ __ 0.05 0.15 rest
3104 0.6 0.8 0.05-0.25 0.8-1.4 0.8-1.3 __ __ 0.25 0.1 __ 0.05 0.15 rest
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 __ 0.4 0.1 __ 0.05 0.15 rest

Specification

Type

 Aluminium strip

Material

 3000 Series:3002,3003,3004,3104,3005,3105,3204,3030,3A21,etc.
Temper H12, H14, H16, H18, H22, H24, H26 ,H111,H112
Specifications Thickness 0.006-6mm or as your required Width :6mm-1200mm or as your required.
Surface Bright, polished, hair line, brush, sand blast, checkered, embossed, etching
Standard ATSTM B209, JIS H4000-2006,GB/T3190-2008,GB/T3880-2006
Application

1) Kitchenware, food and chemical products processing and storage devices;

2) Aircraft fuel tanks, oil pipe, rivets, wire;

3) Cans cover, car body panels, steering plates, stiffeners, brackets and

other components;

4) Manufacturing trucks, tower building, ship, train, furniture, machinery parts,

precision machining with the tubes, rods, shaped, sheet metal.
Trade Information Packaging Details:Wooden pallet,Wooden box
Delivery Detail:3-5days for stock, 10-15days for normal size,25-30days for customized size
MOQ :500kg-5000kg according to different products
Supply Ability:10000tons per month
Payment terms: TT,LC

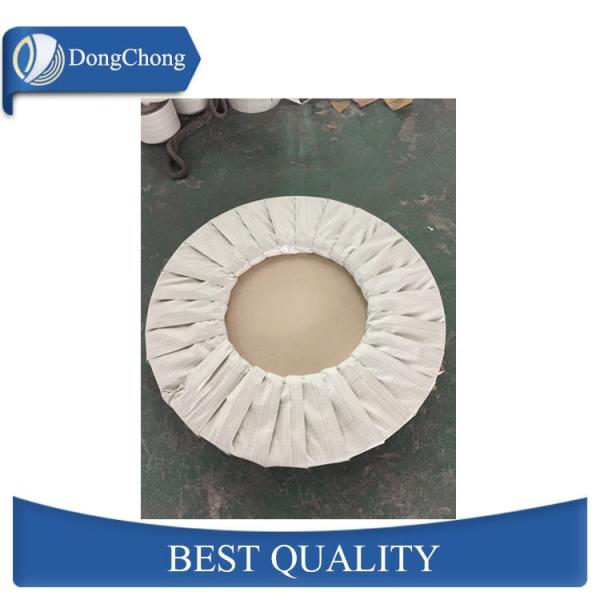

Packing photos:

Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm

Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm

Professional 3104 3105 Flat Aluminum Strips With Narrow Width 6-1400mm
