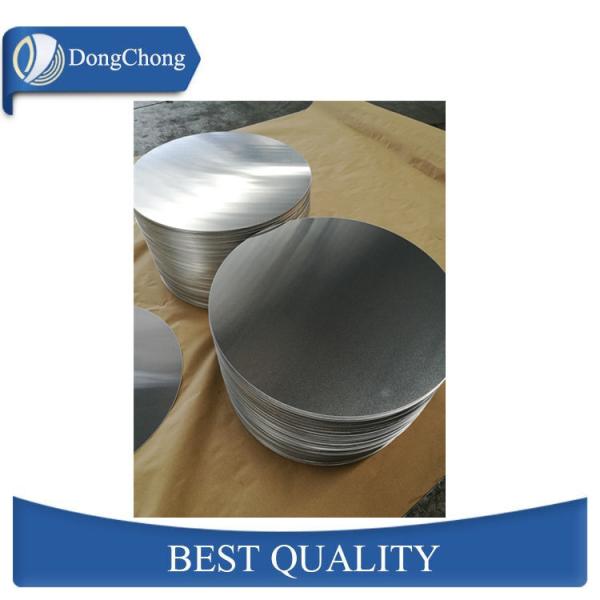

DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs
DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs
DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs
DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs
DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs
DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs
Specifications
Brand Name :
Dongchong
Model Number :
5052
Certification :
MTC,MSDS,REACH,ISO,ROHS,FDA
Place of Origin :
Chongqing ,China
MOQ :
500-5000kg for different product
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000Tons per month
Delivery Time :
15-25days
Packaging Details :
Wooden Pallet
Alloy :
5052
Surface :
Mill Finish
Standard :
GB/T3880 ASTM B209
Packing :
Wooden Pallet
HS CODE :
7606910000
Color :
Silver
Description

5052 DC Material Aluminum Circle Sheet Sign Blank Circle for Traffic Signs

Product Description

DC Quality Applications:
Deep drawing quality, Less Scrap.
Suitable for making cookware and following products:
• Stock pots • Fry pans • Tea kettles
• Pressure cookers • Pizza pans • Rice cookers
• Restaurant cookware • Coffee urns • Electric skillets
• Bakeware, Bread Makers • Stainless cookware bottom plates.
Widely UsedIn Cookware, Cooking Utensil, Holloware, Pressure Cookware, Kitchen Disc,
Cooking Pan, Fryer, Reflector of the light etc .
CC Quality Applications:
Good surface, suitable for lighting industry.
Applications of our products:
• Recessed lighting • High bay industrial lighting
• Stress lighting • Traffic light reflectors
• Sports lighting.

1, Aluminum circle Tolerance: thickness tolerance +/-3%, diameter tolerance +/-1%mm

2, Aluminum circle Surfact Quality :Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use.

3, Aluminum circle Mechanical Property:

Chemical Composite and Mechanical Property could meet the requirements of GB/T, ASTM, ENAW, JIS Standard

Technical Property

Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
5052 H111 O >0. 20 — 0. 50 170 — 215 65 12
>0. 50 — 1. 50 14
>1.55 — 3.00 16
>3. 00 — 6. 00 18
>6.00 — 12. 50 165-215 19
>12. 50 — 50.00 —
H12 >0. 20 — 0. 50 210 — 260 160 4
>0.5-1.5 5
>1.50 —3.00 6
>3, 00 — 6. 00 8
H14 >0. 20 — 0. 50 230-280 180 3
>0.50-1.50 3
>1. 50 -3. 00 4
>3.00 — 6.00 4
H16 >0. 20 — 0, 50 250—300 210 2
>0. 50 — 1. 50 3
>1. 5- 3.0 3
>3.00 — 4. 00 3
H18 >0. 20-0.50 270 240 1
>0. 50 — 1. 50 2
> 1.50 — 3.00 2
H22 H32 >0. 20—0. 50 210 — 260 130 5
>0. 50-1.50 6
>1.50 — 3.00 7
>3. 00 — 6. 00 10
H24 H34 >0. 20 — 0. 50 230 — 280 150 4
>0.50 — 1. 50 5
>1,50 — 3.00 6
>3.00 — 6.00 7
H26 H36 >0. 20 — 0.50 250 — 300 180 3
>0. 50 — 1, 50 4
>1.50—3.00 5
>3. 00—4. 00 6
H38 H28 >0. 20 — 0, 50 270 210 3
>0. 50~1. 5 3
>1. 50 — 3. 00 4
H112 >6.00—12. 50 190 80 7
>12. 50 — 40,00 170 70
>40, 00 — 80, 00 170 70


DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs

DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs

DC Material 5052 Aluminum Circle Sheet Blank for Traffic Signs

Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.
