3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use
3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use
3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use
3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use
3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use
3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use
Specifications
Brand Name :
Dongchong
Model Number :
3105 5182
Certification :
ISO,MTC,MSDS,ROHS,REACH,SGS
Place of Origin :
Chongqing ,Dongchong
MOQ :
500-5000kg for different product
Price :
negotiable
Payment Terms :
TT/LC
Supply Ability :
10000 Tons per month
Delivery Time :
2-3days for stock , 7-10days for normal size .25-30days for customized size
Packaging Details :
Wooden pallet , Wooden Box
Application :
Drinking Cans
Hardness :
H12/22 H14/24 H16/26 /H18 /O
Material :
CC,DC
Surface :
Polish, Mirror ,Mill finish
color :
Silver,bronze,black,gold,blue,grey,champagne,bright,etc
sample :
provided
delivery date :
3-5days for stock , 7-10 days for normal use, 25-30days for customized
packing :
eye to eye , eye to sky , wooden pallet , wooden box ,paper box
Description

Precised Punched Aluminum Coil for Drinking Cans (3105, 5182)

Product specification :

The 5000 series of aluminium alloys represent 5052, 5005, 5083 5182 and 5A05 series. The 5000 series aluminium bar belongs to the more commonly used alloy aluminium plate series, the main element is magnesium, the content of magnesium is between 3-5%. It can also be called Al-Mg alloy. Its main characteristics are low density, high tensile strength, high elongation and good fatigue strength, but it can not be strengthened by heat treatment. In the same area, the weight of Al-Mg alloy is lower than that of other series. It is also widely used in conventional industry. In our country, 5000 series aluminium sheet belongs to one of the more mature aluminium sheet series.

5000 series usage
5005 and 3003 alloys are similar, with medium strength and good corrosion resistance. Used as conductors, cookers, dashboards, shells and building decorations. The anodic oxide film is brighter than the oxide film on 3003 alloy and is in harmony with the hue of 6063 alloy.
5050 thin plate can be used as lining board of refrigerator and refrigerator, automobile gas pipe, oil pipe and agricultural irrigation pipe, and can also process thick plate, pipe, bar, profile and wire.
5052 This alloy has good formability, corrosion resistance, candleability, fatigue strength and medium static strength. It is used to manufacture aircraft fuel tanks, fuel pipes, sheet metal parts of vehicles and ships, meters, street lamp brackets and rivets, hardware products, etc.
5056 magnesium alloy and cable sheath rivets, zippers, nails, etc. Aluminum-coated wire is widely used in processing agricultural insect trap cover, as well as other occasions requiring high corrosion resistance.
5083 is used for occasions requiring high corrosion resistance, good weldability and medium strength, such as welding parts of naval vessels, automobiles and aircraft plates; pressure vessels requiring strict fire protection, refrigeration devices, TV towers, drilling equipment, transportation equipment, missile components, armor, etc.
5086 is used for occasions requiring high corrosion resistance, good weldability and medium strength, such as warships, automobiles, aircraft, cryogenic equipment, television towers, drilling rigs, transportation equipment, missile parts and decks, etc.
5154 Welded structure, storage tank, pressure vessel, ship structure and offshore facilities, transport tank.
5182 sheet is used for processing parts such as cans, car body panels, control panels, reinforcements, brackets and so on.
5252 is used to manufacture decorative parts with high strength, such as automobiles. It has a bright and transparent oxide film after anodic oxidation.
5254 Containers for Hydrogen Peroxide and Other Chemical Products.
5454 welded structure, pressure vessel, pipeline of marine facilities.
5456 armor deck, high strength welded structure, tank, pressure vessel, ship material.
5A06 welding structure, cold forging parts, stress parts of welding and pulling vessels, aircraft skin and bone parts.
5A12 welded structural parts, bullet-proof deck.

ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
1035 0.35 0.6 0.1 0.05 0.05 __ __ 0.1 0.03 __ 0.03 __ 99.35
1100 0.95 0.05-0.2 0.05 __ __ __ 0.1 __ __ 0.05 0.15 99
1050 0.25 0.4 0.05 0.05 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.5
1060 0.25 0.35 0.05 0.03 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.6
1070 0.2 0.25 0.04 0.03 0.03 __ __ 0.04 0.03 __ 0.03 __ 99.7
1080 0.15 0.15 0.03 0.02 0.02 __ __ 0.03 0.03 __ 0.02 __ 99.8
1045 0.3 0.45 0.1 0.05 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.45
1145 0.15 0.3-0.5 0.02 0.05 0.05 __ __ 0.1 0.03 __ 0.03 __ 99.35
1200 1 0.05 0.05 __ __ __ 0.1 0.05 __ 0.05 0.15 99
1235 0.65 0.05 0.05 0.05 __ 0.1 0.06 __ 0.03 __ 99.35
2014 0.5-1.2 0.7 3.9-5.0 0.4-1.2 0.2-0.8 0.1 0.25 0.15 0.05 0.15 rest
2A12 0.5 0.5 3.8～4.9 0.3-0.9 1.2-1.8 0.1 0.3 0.15 __ 0.05 0.15 rest
2017 0.2-0.8 0.7 3.5-4.5 0.4-1.0 0.4-0.8 0.1 0.25 0.15 0.05 0.15 rest
2024 0.5 0.5 3.8-4.9 0.3-0.9 1.2-1.8 0.1 0.25 0.15 0.05 0.15 rest
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 0.15 rest
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 __ __ 0.25 __ __ 0.05 0.15 rest
3104 0.6 0.8 0.05-0.25 0.8-1.4 0.8-1.3 __ __ 0.25 0.1 __ 0.05 0.15 rest
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 __ 0.4 0.1 __ 0.05 0.15 rest
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 __ 0.1 __ __ 0.05 0.15 rest
5A06 ≤0.40 0.000～0.400 ≤0.10　 0.50～0.8　 5.8～6.8　 __ 0.0001～0.005　 ≤0.20 0.02～0.10　 __ 0.05 0.1 rest
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 __ 0.25 __ __ 0.05 0.15 rest
5050 0.4 0.7 0.2 0.1 1.1-1.8 0.1 __ 0.25 __ __ 0.05 0.15 rest
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-0.35 0.25 0.2 0.05 0.15 rest
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 __ 0.2 0.15 __ 0.05 0.15 rest
5454 0.25 0.4 0.1 0.5-1.0 2.4-3.0 0.05-0.2 0.25 0.2 0.05 0.15 rest
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1 0.05 0.15 rest
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 _ 0.25 0.15 __ 0.05 0.15 rest
5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 0.05 0.15 rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 0.05 0.15 0.1 0.05 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 __ 0.25 0.15 __ 0.05 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 __ 0.1 0.1 __ 0.05 0.15 rest
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 __ 5.1-6.1 0.2 __ 0.05 0.15 rest
8011 0.5-0.9 0.6-1.0 0.15-0.4 0.2 0.05 0.05 __ 0.01 0.08 __ 0.05 0.15 rest
8079 0.05~0.3 0.7~1.3 0.05 __ __ __ __ 0.1 __ 0.05 0.15 rest

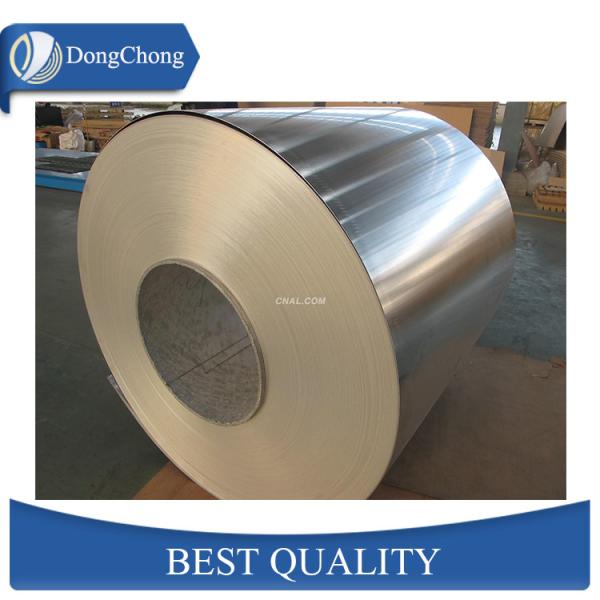

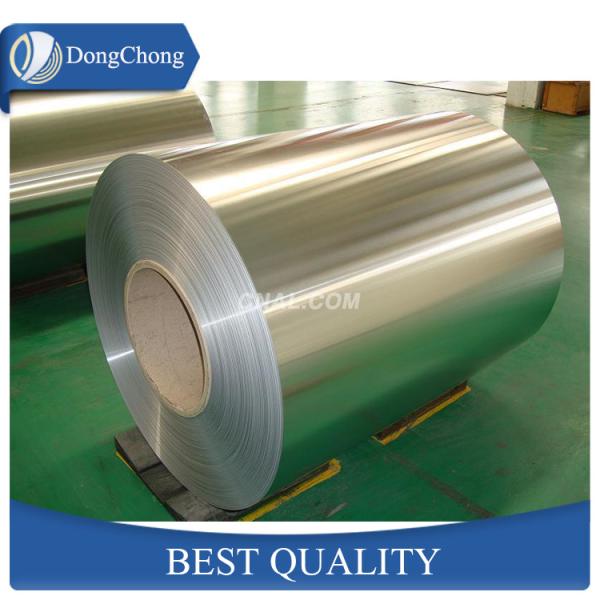

Photos:

3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use

3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use

3105 5182 Precised Punched Aluminum Sheet Coil Low Density Drinking Cans Use

Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.
