Specifications
Brand Name :
Dongchong
Model Number :
8011
Certification :
MTC, MSDS,REACH,ISO,ROHS,FDA
Place of Origin :
Chongqing,China
MOQ :
300KG
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000tons per month
Delivery Time :
25-30days
Packaging Details :
Wooden box
Model NO. :
8011
Rolling Characteristics :
Finish Rolling
Thickness Tolerance :
+/- 5%
Width Tolerance :
+/-1mm
HS Code :
760711
Inner Diameter :
76mm/152mm
Description

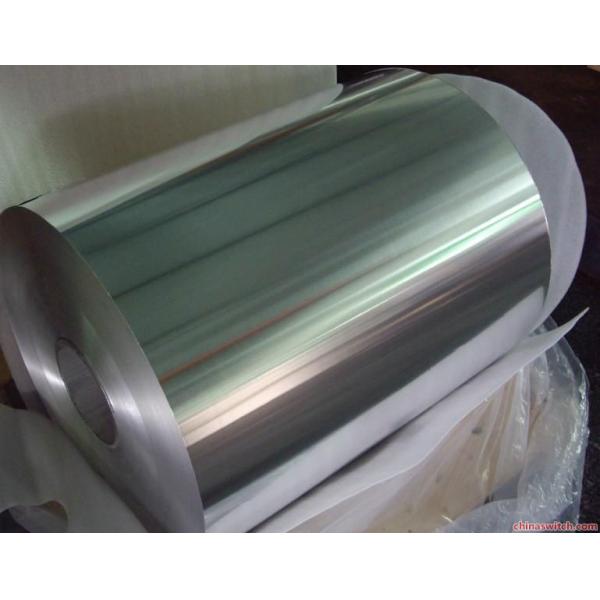

Factory Price 8011 Industrial Aluminium Foil for Adhesive Tape/Cable Foil

Product Description

Specification

Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
8011A 0 H111 >0. 20 ~ 0. 50 85 〜130 30 19
>0. 50 ~1. 50 21
>1. 50 ~ 3.00 24
H22 >0. 20 ~ 0. 50 105-145 90 4
>0. 50 ~ 1. 50 5
>1. 50 ~ 3.00 6
H14 >0. 20 ~ 0.50 125 — 165 110 1
>0, 50 ~3. 00 3
H24 >0. 20 ~0. 50 125 — 165 100 3
>0. 50~1.5 4
>1. 50~3.00 5
H16 >0. 20~0. 50 140-190 130 1
>0. 50~1.5 145-185 2
>1. 50~3.00 3
H18 >0, 20 ~ 0. 50 E 145 1
>0. 50 ~ 3.00 165 1 2


Surface Condition

One side matt and the other bright. Surface free from defects that are detrimental to the application such as corrosion, broken matt, indent, loose edge, dent mark, stains, line marks, scratches, holes, etc.

Edge: No telescopic, oscillation, slanting and collapse marks.

Joints: For roll OD200-450mm, allowing 0 -1 joint of each roll with ultrasonic welding;

For roll OD450-650mm, allowing 0-2joints of each roll with ultrasonic welding;

The length between joints is more than 1000 meters.

Unwind: Coil is free from stickiness and can be unwind freely to the core.

8011 Industrial Aluminum Foil Adhesive Tape Use No Collapse Marks

Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.
