5005 5754 Copper Colored Aluminum Coil Sheet With PE Film Building Construction
5005 5754 Copper Colored Aluminum Coil Sheet With PE Film Building Construction
5005 5754 Copper Colored Aluminum Coil Sheet With PE Film Building Construction
5005 5754 Copper Colored Aluminum Coil Sheet With PE Film Building Construction
5005 5754 Copper Colored Aluminum Coil Sheet With PE Film Building Construction
5005 5754 Copper Colored Aluminum Coil Sheet With PE Film Building Construction
Specifications
Brand Name :
Dongchong
Model Number :
A5052, A5005, A5083, A5754
Certification :
ISO,MTC,MSDS,ROHS,REACH,SGS
Place of Origin :
Chongqing ,Dongchong
MOQ :
500-5000kg for different product
Price :
negotiable
Payment Terms :
TT/LC
Supply Ability :
10000 Tons per month
Delivery Time :
2-3days for stock , 7-10days for normal size .25-30days for customized size
Packaging Details :
Wooden pallet , Wooden Box
Material :
CC,DC
packing :
eye to eye , eye to sky , wooden pallet , wooden box ,paper box
Surface :
polish, mirror ,mill finish
Application :
Building Construction Used
color :
Silver,bronze,black,gold,blue,grey,champagne,bright,etc
sample :
provided
delivery date :
3-5days for stock , 7-10 days for normal use, 25-30days for customized
Hardness :
H12/22 H14/24 H16/26 /H18 /O
Description

Aluminum Coil with Width up to 2620mm (A1050 1060 1100 3003 3105)

Product specification :

Aluminum alloy coil can be divided into non-painted products and painted products according to their surface treatment methods.
1,Non-painted products
(1) It can be divided into hammer-pattern aluminium plate (irregular pattern), embossing plate (regular pattern) and pre-passivation, anodic alumina surface treatment plate.
(2) Such products do not need to be painted on the surface of sheet metal, and they do not require high surface appearance and low price.
2, Painting products
(1) Classification:
According to the coating process can be divided into: spray plate products and pre-roll coating plate;
According to the type of paint, it can be divided into: polyester, polyurethane, polyamide, modified silicon, epoxy resin, fluorocarbon and so on.
(2) Among various coatings, the main performance difference is the resistance to sunlight ultraviolet rays. The most commonly used coating on the front is fluorocarbon paint (PVDF), which has strong resistance to ultraviolet rays. Polyester or epoxy resin coatings can be selected as protective coatings on the back. In addition, a tearable protective film can be attached to the front.

ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
1035 0.35 0.6 0.1 0.05 0.05 __ __ 0.1 0.03 __ 0.03 __ 99.35
1100 0.95 0.05-0.2 0.05 __ __ __ 0.1 __ __ 0.05 0.15 99
1050 0.25 0.4 0.05 0.05 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.5
1060 0.25 0.35 0.05 0.03 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.6
1070 0.2 0.25 0.04 0.03 0.03 __ __ 0.04 0.03 __ 0.03 __ 99.7
1080 0.15 0.15 0.03 0.02 0.02 __ __ 0.03 0.03 __ 0.02 __ 99.8
1045 0.3 0.45 0.1 0.05 0.05 __ __ 0.05 0.03 __ 0.03 __ 99.45
1145 0.15 0.3-0.5 0.02 0.05 0.05 __ __ 0.1 0.03 __ 0.03 __ 99.35
1200 1 0.05 0.05 __ __ __ 0.1 0.05 __ 0.05 0.15 99
1235 0.65 0.05 0.05 0.05 __ 0.1 0.06 __ 0.03 __ 99.35
2014 0.5-1.2 0.7 3.9-5.0 0.4-1.2 0.2-0.8 0.1 0.25 0.15 0.05 0.15 rest
2A12 0.5 0.5 3.8～4.9 0.3-0.9 1.2-1.8 0.1 0.3 0.15 __ 0.05 0.15 rest
2017 0.2-0.8 0.7 3.5-4.5 0.4-1.0 0.4-0.8 0.1 0.25 0.15 0.05 0.15 rest
2024 0.5 0.5 3.8-4.9 0.3-0.9 1.2-1.8 0.1 0.25 0.15 0.05 0.15 rest
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 0.15 rest
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 __ __ 0.25 __ __ 0.05 0.15 rest
3104 0.6 0.8 0.05-0.25 0.8-1.4 0.8-1.3 __ __ 0.25 0.1 __ 0.05 0.15 rest
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 __ 0.4 0.1 __ 0.05 0.15 rest
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 __ 0.1 __ __ 0.05 0.15 rest
5A06 ≤0.40 0.000～0.400 ≤0.10　 0.50～0.8　 5.8～6.8　 __ 0.0001～0.005　 ≤0.20 0.02～0.10　 __ 0.05 0.1 rest
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 __ 0.25 __ __ 0.05 0.15 rest
5050 0.4 0.7 0.2 0.1 1.1-1.8 0.1 __ 0.25 __ __ 0.05 0.15 rest
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-0.35 0.25 0.2 0.05 0.15 rest
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 __ 0.2 0.15 __ 0.05 0.15 rest
5454 0.25 0.4 0.1 0.5-1.0 2.4-3.0 0.05-0.2 0.25 0.2 0.05 0.15 rest
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1 0.05 0.15 rest
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 _ 0.25 0.15 __ 0.05 0.15 rest
5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 0.05 0.15 rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 0.05 0.15 0.1 0.05 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 __ 0.25 0.15 __ 0.05 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 __ 0.1 0.1 __ 0.05 0.15 rest
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 __ 5.1-6.1 0.2 __ 0.05 0.15 rest
8011 0.5-0.9 0.6-1.0 0.15-0.4 0.2 0.05 0.05 __ 0.01 0.08 __ 0.05 0.15 rest
8079 0.05~0.3 0.7~1.3 0.05 __ __ __ __ 0.1 __ 0.05 0.15 rest

Photos:

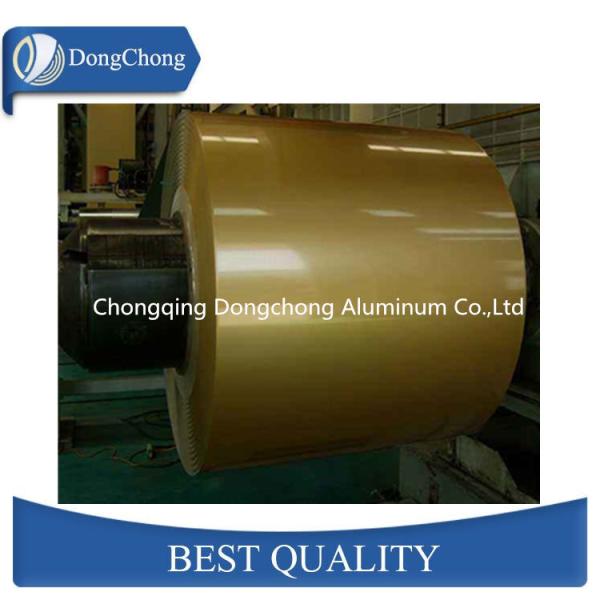

5005 5754 Copper Colored Aluminum Coil Sheet With PE Film Building Construction

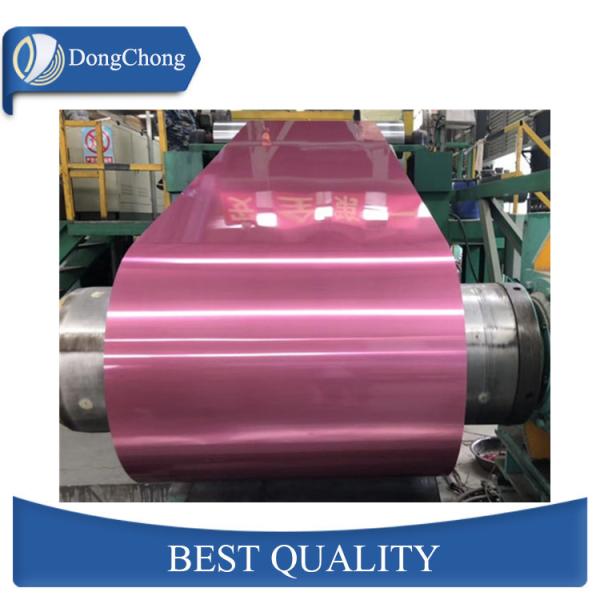

5005 5754 Copper Colored Aluminum Coil Sheet With PE Film Building Construction

Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.
