High Tensile Strength Transmission Line Clamps Efficient For Jumper Conductors
High Tensile Strength Transmission Line Clamps Efficient For Jumper Conductors
Specifications
Brand Name :
GZXYHY
Model Number :
XTJ
Certification :
ISO9001 Certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, L/C, T/T, Western Union
Supply Ability :
10 Piece/Pieces per Month
Delivery Time :
30days after order confirmed
Packaging Details :
1/ Wooden case 2/ Packaging according to the costomer's request
Materail :
Aluminium alloy
Standard :
ISO9001-2008, IEC 61284
Characteristic :
High tensile strength
Elongation :
Long
Usage :
Be used in high voltage pole line
Description

High Tensile Strength Aluminium Alloy Suspension Clamp for Jumper Conductors

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: XYHY
  • Model Number: XTJ
  • Material: Aluminium alloy
  • Standard: ISO9001-2008, IEC 61284

Packaging & Delivery

Packaging Details :1/ Wooden case
2/ Packaging according to the costomer's request
Delivery Time: 30days after order confirmed

Description

Pole transmission line hardware suspension clamp is used in high voltage pole line to connect power fitting string or insulators. The clamp body and keepers are aluminium alloy, cotter-pins are stainless steel, the other parts are hot-dip galvanized steel.

If the bandle space of condactor reaches 450, all the suspension clamps for Jumper Conductors can match with the coanter weight ZC-20, but not ZC-18. If the bundle space of condactor reaches 500, all the suspension clamps for Jumper Conductors can match with both ZC-20 and ZC-18.
Characteristic: High tensile strength long elongation hot dip galvanized
Quality indemnity:
1. ISO9001 Certification
2. Test checking prior to shipment
3. GB/T national standard
4. Type test report provided

Specification

Suspension clamps for Jumper Conductors

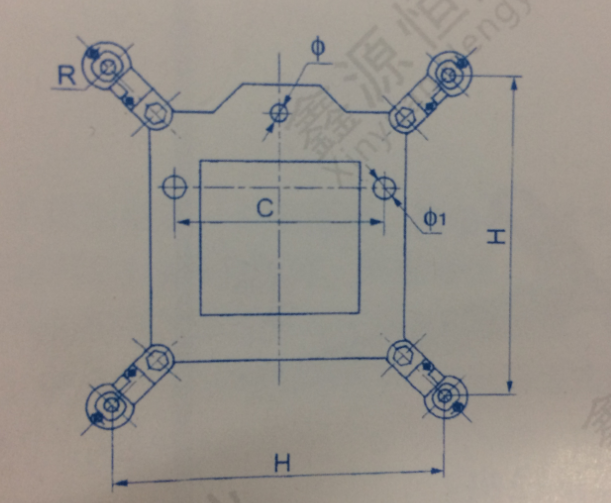

Catalog No. Suitable Conductor Dimensions(mm)

Weight

(kg)
H C Ø Ø1
XTJ4-300 LGJ-300/20~50 450 240 18 24 11.9
XTJ4-400A LGJ-400/20~35 450 240 18 24 11.9
XTJ4-400 LGJ-400/50~65 450 240 18 24 12.2
XTJ4-400B LGJ-400/95 450 240 18 24 11.9
XTJ4-500 LGJ-500/45 450 240 18 24 12.5
XTJ4-630 LGJ-630/45 500 240 26 24 15.4
XTJ-720 LGJ-720/50 500 240 26 24 15.4
