Long Durability Yoke Plate For Assembling Suspension Insulator To String
Long Durability Yoke Plate For Assembling Suspension Insulator To String
Long Durability Yoke Plate For Assembling Suspension Insulator To String
Long Durability Yoke Plate For Assembling Suspension Insulator To String
Specifications
Brand Name :
XYHY
Model Number :
LX
Certification :
ISO9001:2000
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,000 Piece/Pieces per Month
Delivery Time :
Within 2 months
Packaging Details :
In wooden box
Model number :
LX
Material :
Hot dip galvanized steel
Stability :
High
Antivibration :
High
Operation :
Convenient
Durability :
Long
Usage :
Overhead Transmission Line
Description

Hot Dip Galvanized Steel Yoke Plate Type LX For Overhead Lransmission Line

Quick Details

Place of Origin: Guangdong, China (Mainland)
Model Number: LX
Material: Hot dip galvanized steel
Usage: Overhead Transmission Line
Stability: High
Antivibration: High
Durability: Long
Operation: Convenient


Packaging & Delivery

Packaging Details: In wooden box
Delivery Time: Within 2 months

Description

Link fitting to connect insulator and fittings on ultra voltage transmission line.

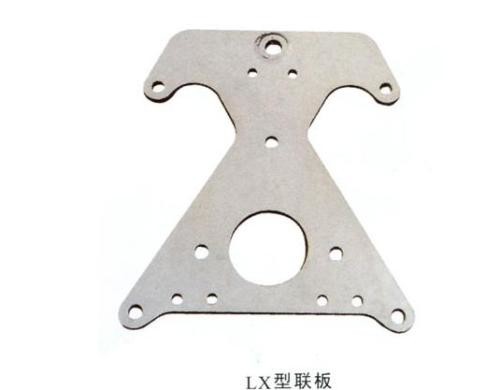

LX Type Yoke Plate is suitable for assembling the suspension insulator to string, and it is also used for connection of one or several strings insulator and then suspending on the pole arm of perch as well as connecting of suspension clamp and dead end clamp & connection between stay wire and perch.

Technical Parameters

Catalog No. Dimensions(mm)

Rated Failure Load

(kN)

 Weight(kg)
L h d1 d2 d3 b1 b S
LX-1645 450 95 20 26 18 18 18 80 160 26.0
LX-2145 450 95 18 30 - 26 18 210 25.1
LX-2145S 450 95 18 26 18 20 16 80 210 21.3
LX-2150S 500 95 18 26 18 20 16 80 210 25.5
LX-2545 450 95 20 33 18 30 18 80 250 25.5
LX-2145A 450 95 20 33 18 26 18 80 250 25.5
LX-3045 450 95 24 39 14 32 18 80 300 27.1
LX-3245 450 95 20 39 - 32 18 320 27.4
LX-3250S 500 95 18 33 18 28 18 80 320 28.5
LX-4245 450 100 22 39 18 22 22 60 420 35.4
LX-4245S 450 100 20 39 18 32 18 80 420 23.9
LX-2150S 450 95 20 39 18 32 18 80 420 29.0
LX-6450S 500 95 20 45 18 36 18 80 640 30.5
LX-8045S 500 1520 26 51 - 36 20 - 840 37.8

Long Durability Yoke Plate For Assembling Suspension Insulator To String
