Bolt Type Dead End Clamp Aluminum Alloy Materials ISO9001-2008 Standard
Bolt Type Dead End Clamp Aluminum Alloy Materials ISO9001-2008 Standard
Specifications
Brand Name :
GZXYHY
Model Number :
NLL
Certification :
ISO9001-2008
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union
Supply Ability :
500000 Set/Sets per Month
Delivery Time :
Within 1 week
Packaging Details :
Stardard exporting package
Material :
Aluminum alloy
Standard :
ISO9001-2008, IEC 61284
Operation :
Convenient
Voltage level :
110-1000kV
Conductor dia. :
21.0-53.0mm
Failure load :
70-160kN
Description

Aluminium Alloy Bolt Type Dead End Clamp for Overhead Line Hardware

Quick Details

Model Number NLL
Material Aluminum alloy
Voltage level 110-1000kV
Conductor dia. 21.0-53.0mm
Failure load 70-160kN
Standard ISO9001-2008, IEC 61284
Durability Long

Packaging & Delivery

Packaging Details: 1/ Wooden case
2/ Packaging according to the costomer's request

Delivery Time: Within 1 week

Descriptions

Bolt type pole transmission line hardware strain clamp is used in high voltage pole line to connect power fitting string or insulators|. It also can fix the guy wire terminals on poles. Moreover, it bears all the tension of conductors, ground wires and lighting conductors.

The clamp body and jumper clamp are aluminium, the other part are hot-dip galvanized steel.

Specification

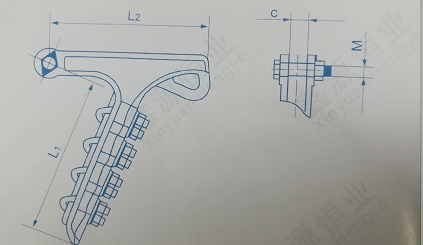

Type conductor Dia.(mm) Dimensions(mm) BOLT QTY Failure Load(kN

Weight

(kg)
M C L1 L2
NLL-1 5.1-11.4 400 500 300 13.5 2 70 10.2
NLL-2 8.9-18.5 400 500 300 16 2 100 11.0
NLL-3 5.0-15.0 400 585 330 22 3 120 12.9
NLL-4 12.1-12.8 500 646 330 19.5 4 70 10.3
NLL-5 18.0-30.0 500 651 300 19.5 5 100 11.5
