Hot Dip Galvanized Dead End Clamp Silver White Malleable Iron 1.3 - 7.1kg Weight
Hot Dip Galvanized Dead End Clamp Silver White Malleable Iron 1.3 - 7.1kg Weight
Hot Dip Galvanized Dead End Clamp Silver White Malleable Iron 1.3 - 7.1kg Weight
Hot Dip Galvanized Dead End Clamp Silver White Malleable Iron 1.3 - 7.1kg Weight
Specifications
Brand Name :
GZXYHY
Model Number :
NLD
Certification :
ISO9001:2000
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A, Western Union
Supply Ability :
10.000 Piece/Pieces per Month
Delivery Time :
Within three months
Packaging Details :
International export package
Material :
Aluminium alloy
Color :
Silver white
Type :
Bolt Type
Finish :
Hot-dip Galavanized Steel
Description

Bolt Type Silver White Hot-dip Galvanized Strain Clamp Dead End Clamp

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: GZXYHY
  • Model Number: NLD
  • Malleable iron: Silver white
  • Type:Bolt Type
  • Certification:ISO9001:2000

Packaging & Delivery


Packaging Details: International export package
Delivery Time:Within three months

Descriptions

Bolt type pole transmission line hardware strain clamp is used in high voltage pole line to connect power fitting string or insulators. It also can fix the guy wire terminals on poles. Moreover, it bears all the tension of conductors, ground wires and lighting conductors.

The clamp body and keepers are aluminium alloy, the cotter-pin is stainless steel, the other parts are hot-dip galvanized steel.
Characteristic: High tensile strength long elongation hot dip galvanized

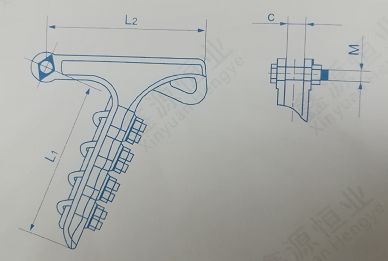

Specifications

Catalog No.

Conductor Dia.

(mm)

 Dimensions(mm) U Bolt

Failure Load

(kN)

Weight

(kg)
M C L1 L2 R Qty(pc) Dia(mm)
NLD-1 5.1-10.0 16 18 150 120 6.5 2 12 20 1.3
NLD-2 10.1-14.0 16 18 207 135 8.0 3 12 40 2.4
NLD-3 14.1-18.0 18 22 310 160 11..0 4 16 70 4.6
NLD-4 18.1-23.0 18 27 375 200 12.5 4 16 100 7.1
