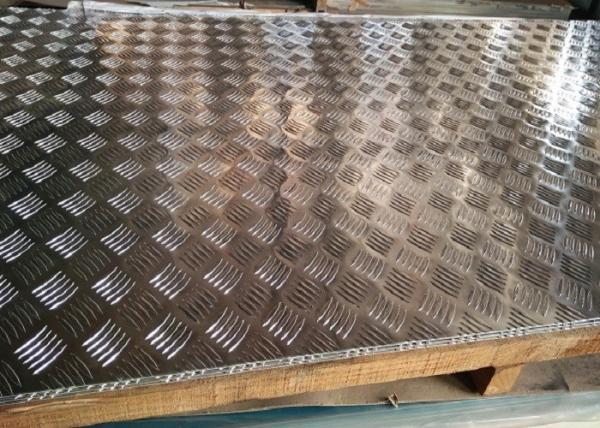

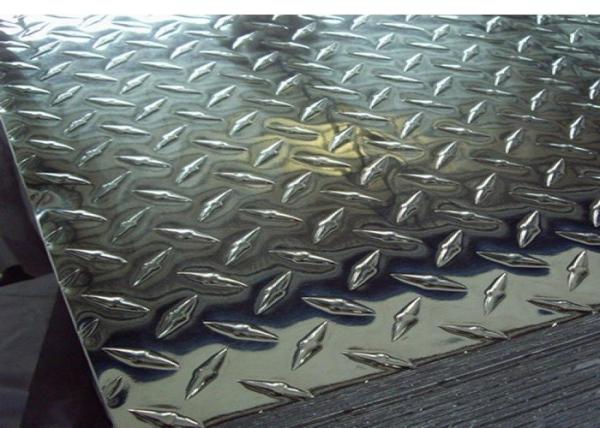

5052 H32 Aluminium Chequered Plate Coils Slip Resistance For Bus Body
5052 H32 Aluminium Chequered Plate Coils Slip Resistance For Bus Body
5052 H32 Aluminium Chequered Plate Coils Slip Resistance For Bus Body
5052 H32 Aluminium Chequered Plate Coils Slip Resistance For Bus Body
Specifications
Brand Name :
RUIYI
Model Number :
5052
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 Ton
Price :
US$2100- US$3500 per ton
Supply Ability :
1000 Ton Per Month
Delivery Time :
25 working days
Packaging Details :
wooden pallets
Product name :
5052 aluminum plate
Alloy Grade :
5052
Temper :
H116, H32
Features :
Anti-skid
Thickness :
1.2 mm -7.0mm or custom
Width :
100 MM - 1650MM
Finish :
Mill or Brite
Pattern :
Checkered or Chequered
Description

5052 H32 aluminium chequered Plate coils for bus body

5052-H32 Aluminum Sheet is commonly used for the bodies of boats, buses, trucks, and trailers, as well as for chemical drums. It is nonmagnetic and not heat treatable

5052 aluminum plate offers high corrosion resistance and salt water resistance, making it popular for marine applications

5052 - H32 Sheet and Treadplate. Aluminium alloy 5052 in H32 temper has very good corrosion resistance to seawater and marine and industrial atmosphere.

5052 Aluminum Sheet. 5052 is alloyed with 2.5% magnesium. Tensile strength range is 31 to 44 KSI. 5052 has excellent workability, weldability and corrosion resisitance.

Features of 5052 include higher fatigue strength than most aluminum alloys, excellent resistance to salt water atmosphere, excellent weldability and workability, and excellent finishing characteristics. Anodic coatings are bright and clear. RUIYI stocks 5052-H32 sheets in a mill finish (also known as “bare”) sheets.

We can supply
Alloy: 1050 1060 1100 3003, 3105, 5052, 5005, 5754 5083 5182, 5086, 6061 6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Surface:Mill/Emboss/Diamond/2bar/3bars/Bright
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm.

aluminum stair tread sheet, Aluminum tread Brite plate,Aluminum checker plate manufacturers, Perforated aluminum sheet china,Diamond sheet manufacturers, Aluminum tread plate manufacturers, Aluminium sheet factory, aluminium plate metal

5052 H32 Aluminium Chequered Plate Coils Slip Resistance For Bus Body

Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
