Military Grade Aluminium Chequered Plate 3003 5 Bars Aluminum Tread Plate 4x8
Military Grade Aluminium Chequered Plate 3003 5 Bars Aluminum Tread Plate 4x8
Military Grade Aluminium Chequered Plate 3003 5 Bars Aluminum Tread Plate 4x8
Military Grade Aluminium Chequered Plate 3003 5 Bars Aluminum Tread Plate 4x8
Specifications
Brand Name :
RUIYI
Model Number :
3003
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 Ton
Price :
US$2100- US$3500 per ton
Supply Ability :
1000 Ton Per Month
Delivery Time :
25 working days
Packaging Details :
wooden pallets
Product name :
aluminium 5 bar tread plate
Alloy Grade :
3003
Temper :
H32, H22, H14
Thickness :
1.2 mm -7.0mm or custom
Width :
100 MM - 1650MM
Finish :
Mill or Brite
Pattern :
5 bars, Diamond, 3 BARS
ASTM Standard :
ASTM B209-10
Description

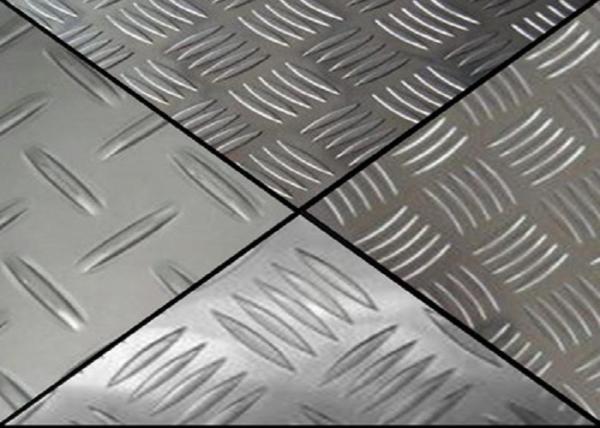

Military grade 3003 5 bars 4x8 diamond chequered sheet Plate aluminium anti-skid

Aluminum alloy 3003 plate sheet is a medium strength alloy with very good resistance to atmospheric corrosion and very good weldability as well as good cold formability. It has better mechanical properties, especially at elevated temperatures than the 1000 series alloys.

Aluminum alloy 3003 plate sheet is also produced as a bright finish tread plate (also known as checkered plate) with industrial and decorative applications. Aluminum tread plate in alloy 3003 is typically used in decorative architectural applications, due to its bright reflective finish. It is usually produced in a “1-bar” or “ 5 bars” tread pattern

Aluminum Checkered Plates offered by us have high ductility and can be easily molded to transform the sheet metal into different shapes to be used for a large variety of finished parts. The sheets available with us find its wide application in various industry segments such as food processing for making cans, automobiles for making different products. We deliver Aluminum Plate grade 53000 / 5086 and also in many different grades like 6082 , 6061, 6063, 2014 , 5052 etc.

We can supply
Alloy: 1050 1060 1100 3003, 3105, 5052, 5005, 5754 5083 5182, 5086, 6061 6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Surface:Mill/Emboss/Diamond/2bar/3bars/Bright
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm.

aluminum stair tread sheet, Aluminum tread Brite plate,Aluminum checker plate manufacturers, Perforated aluminum sheet china,Diamond sheet manufacturers, Aluminum tread plate manufacturers, Aluminium sheet factory, aluminium plate metal

Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
