Marine Grade Aluminum Sheet 5083 H111 Aluminium Sheet Coil DNV BV ABS Certified
Marine Grade Aluminum Sheet 5083 H111 Aluminium Sheet Coil DNV BV ABS Certified
Marine Grade Aluminum Sheet 5083 H111 Aluminium Sheet Coil DNV BV ABS Certified
Marine Grade Aluminum Sheet 5083 H111 Aluminium Sheet Coil DNV BV ABS Certified
Specifications
Brand Name :
RUIYI
Model Number :
5083
Certification :
CE, ISO, BV, SGS, DNV
Place of Origin :
China
MOQ :
5 Ton
Price :
US$2100- US$3500 per ton
Supply Ability :
1000 Ton Per Month
Delivery Time :
25 working days
Packaging Details :
wooden pallets
Product name :
custom size aluminum sheet
Alloy Grade :
5083
Temper :
O,H112, H22, H14, H24, H32, H111
Thickness :
0.8-400mm
Finish :
Mill finish, Bright
Pattern :
5 bars, Diamond, 3 BARS, 1 BARS
Dimension :
6000mm x2000mm x 8 mm
Description

DNV BV ABS certified Marine grade 5083 H111 aluminium sheet coil chequered plate 6000mm x2000mm x 8 mm

Aluminium 5083 is known for exceptional performance in extreme environments. 5083 is highly resistant to attack by both seawater and industrial chemical environments.
Alloy 5083 also retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys but is not recommended for use in temperatures in excess of 65°C.

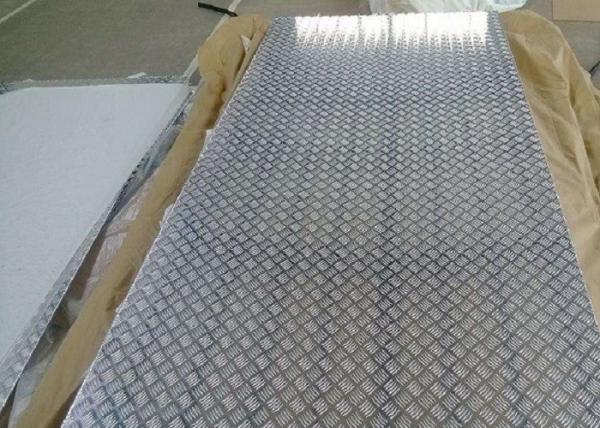

A lightweight metal sheet with a regular pattern of raised diamonds, with added texture to reduce the risk of slipping. For internal and external use.

Applications:

  • Can be used in industrial settings for door and wall protection, corner guards, flooring and stair treads.
  • Can be utilized as a decorative material in architecture and interior design e.g. diamond plate decor.
  • Stairs, catwalks and ladders.
  • Access ramps.
  • Anti-slippery flooring.
  • Door kick plates and cladding.
  • Anti-rust applications.

We can supply
Alloy: 1050 1060 1100 3003, 3105, 5052, 5005, 5754 5083 5182, 5086, 6061 6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Surface:Mill/Emboss/Diamond/2bar/3bars/Bright
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm.

aluminum stair tread sheet, Aluminum tread Brite plate,Aluminum checker plate manufacturers, Perforated aluminum sheet china,Diamond sheet manufacturers, Aluminum tread plate manufacturers, Aluminium sheet factory, aluminium plate metal

Marine Grade Aluminum Sheet 5083 H111 Aluminium Sheet Coil DNV BV ABS Certified

Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
