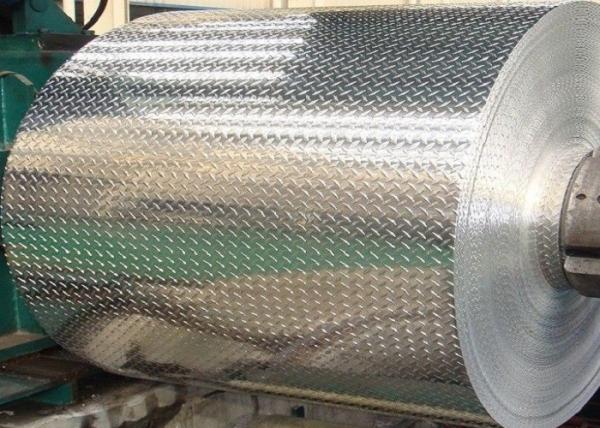

Non Slip Metal Tread Plate 5052 3003 5 Bars Embossed Aluminum Sheet Coil
Non Slip Metal Tread Plate 5052 3003 5 Bars Embossed Aluminum Sheet Coil
Non Slip Metal Tread Plate 5052 3003 5 Bars Embossed Aluminum Sheet Coil
Non Slip Metal Tread Plate 5052 3003 5 Bars Embossed Aluminum Sheet Coil
Specifications
Brand Name :
RUIYI
Model Number :
3003 5052
Certification :
ISO9001, ASTM, GB, EN
Place of Origin :
China
MOQ :
5 Ton
Price :
US$1900-US$2500 per ton
Supply Ability :
1000 Ton per Month
Delivery Time :
25 days
Packaging Details :
standard package
Product name :
3003 5052 step tread plates
Temper :
H32, H22, H112
Thickness :
0.2mm-10mm
Width :
100mm-2500mm
Patterns :
Diamond, three bars, five bars, embossed
Application :
Flooring, Trailer, Decking, Building, tool box,car body
Finish :
Brite, Bright, Polish, Embossed, coating
Description

5052 3003 non slip stair step tread plates aluminum sheet coil manufacturer diamond 5 bars embossed

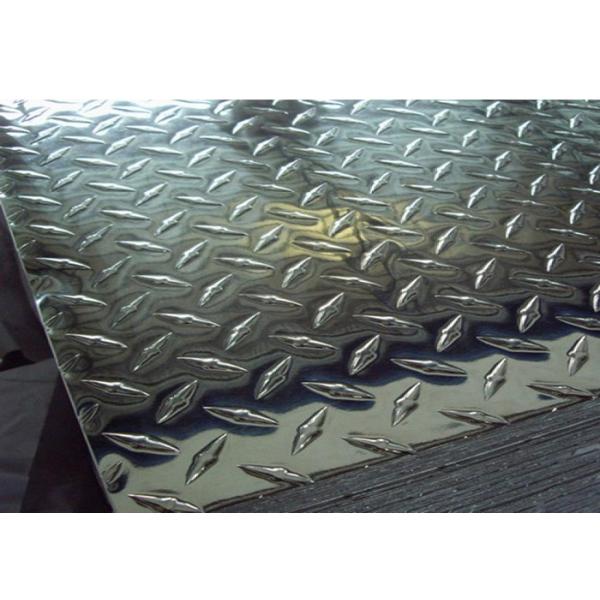

Non slip aluminum stair tread has high rigidity and skid resistance, such materials are widely used as vehicle flooring and anti-skid. The stair tread has a male/female interlocking design and can be installed over structural members to provide a solid, skid resistant flooring.
Aluminum tread plates can be used to cover surfaces with holes to allow for wheelchair and high heel traffic. Optional edge bands or wedges along the length of the panels, make it easier for wheelchairs and other wheel cart traffic to roll up onto the floor surface. The two styles of edge bands are “A” and “B.”
Aluminum Alloy: 1100, 3003, 5052
Temper: H14, H16, H18 H24, H32, H112;
Pattern: Two bars, three bars, five bars, diamond bars.
Thickness: 1.0 - 5.0mm; Width: 500 ~ 2000mm


RuiYI Aluminum are the leading aluminum supplier in China, our main proudcts are aluminum sheet, aluminum coil, aluminum circle sheet, aluminum chequered plates, aluminum checker plate sheet, aluminum tread plate, aluminum stucco sheet.

PRODUCT ALLOY TEMPER THICKNESS(mm) WIDTH(mm) LENGTH(mm) PATTERN APPLICATION

ALUMINUM
CHECKERED
PLATE		 3003 1050 5052 H18 H24 H32 H112 O
T6		 0.2~6.0 500-1500 ≤12000 FIVE BAR
THREE BAR
TWO BAR
ONE BAR
DIAMOND
COMPASS
GRAIN		 ANTI-SLIPPERY IN BUILDING, VECHILE,SHIP,PLANE,ROOFING FOR INNER,DECORATION,ETC.



Non Slip Metal Tread Plate 5052 3003 5 Bars Embossed Aluminum Sheet Coil


Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
