PE PVDF Feve Epoxy Color Coated Aluminum Sheet / Coil ASTM-B209 Standard
PE PVDF Feve Epoxy Color Coated Aluminum Sheet / Coil ASTM-B209 Standard
PE PVDF Feve Epoxy Color Coated Aluminum Sheet / Coil ASTM-B209 Standard
PE PVDF Feve Epoxy Color Coated Aluminum Sheet / Coil ASTM-B209 Standard
PE PVDF Feve Epoxy Color Coated Aluminum Sheet / Coil ASTM-B209 Standard
PE PVDF Feve Epoxy Color Coated Aluminum Sheet / Coil ASTM-B209 Standard
Specifications
Brand Name :
RuiYi
Model Number :
AA1060,1060, 3003, 1100
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
8 TON
Price :
US$1800-US$3600 / Ton
Supply Ability :
1000 Ton per month
Delivery Time :
35 days
Packaging Details :
pallets
Alloy grade :
AA1060, 1050, 3003, 1100
Temper :
H26,H32, H111,H112,H116
Application :
Freezer, Refrigerator, Roofing
Thickness :
color coated aluminum coil
Width :
300mm-2800mm or custom
Standard :
ASTM-B209. EN573-1, GB/T3880.1-2006
Surface treatment :
color coated, PE PVDF Epoxy
Description

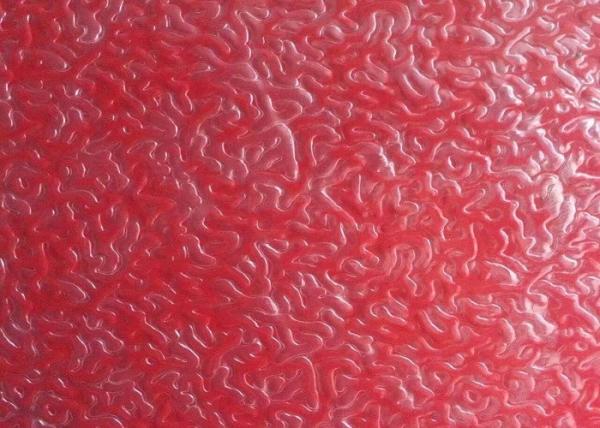

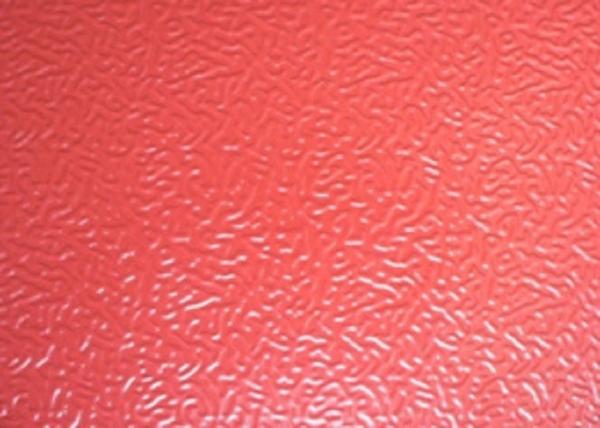

PE PVDF Feve Epoxy Color Coated Stucco Embossed Aluminum Sheet

General Description of pvdf coated aluminium coil

Color coated aluminum coil is a material with excellent acid-resistance and alkali-resistance. The coating layer is even with bright color to last for a very long time. It is a green decoration material with the characters of environment protection, flame-resistance, and groovy colors. In nowadays, the color coated aluminum coil has become the popular material for top grade decoration.

COATING

Coating PE,PVDF
Color AS to all RAL color
Gloss 10-90%(EN ISO-2813:1994)
Coating Thickness PE: more than 18 micron
PVDF: more than 25 micron
Coating Hardness (pencil resistance) More than 2h
Coating adhesion 5J(EN ISO-2409:1994)
Impact Resistance No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
Flexibility (T-bend) 2T
MEK resistance More than 100

manufacturer color coated stucco embossed aluminum sheet / plate / coil

(1) Features of color coated aluminium coil

1) Super peeling strength

2) Excellent surface flatness and smoothness

3) Superior weather, corrosion, pollutant resistance

4) Even coating, various colors

5) Fireproof, excellent heat and sound insulation

6) Superior impact resistance

7) Lightweight and easy to process

(2) Application of color coated aluminium coil

1) Building exterior curtain walls

2) Decoration and renovation additions for old buildings

3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

4) Shop door decorations

5) Advertisement board display platforms and signboards

6) Wallboards and ceilings for tunnels

7) Industrial materials, materials for vehicles and boats

Aluminium plate | aluminum alloy sheet | Aluminum tread plates | Aluminum coils | Aluminum Foils| Aluminium diamond plate sheet | Aluminum checker plates | Aluminium chequer plate sheet

Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
