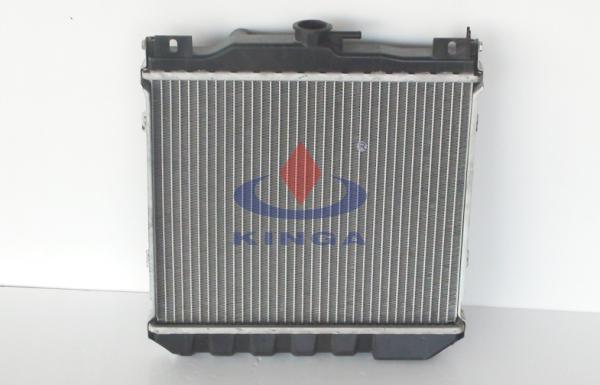

AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20
AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20
AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20
AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20
AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20
AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20
AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20
AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20
Specifications
Place of Origin :
MADE IN CHINA
Brand Name :
KINGA
Certification :
ISO / TS 16949
Model Number :
KJ-18003A-PA16 / 26
MOQ :
30PCS
Price :
Negotiation
Packaging Details :
Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time :
45 Days
Payment Terms :
T/T L/C
Supply Ability :
600,000 PCS / Year
Price Terms :
FOB ShenZhen / GuangZhou
Description

AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20

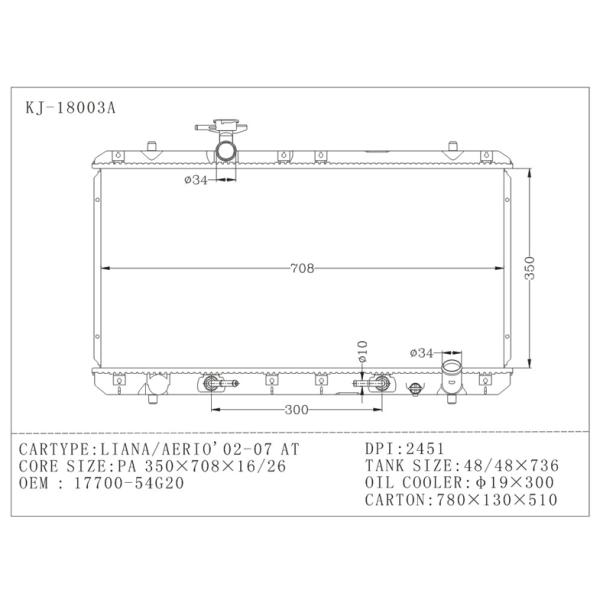

Item Specifications

Manufacturer Part Number KJ-18003A
OEM 17700-54G20
Car Type LIANA / AERIO ' 2002 , 2003 , 2004 , 2005 , 2006 , 2007
Carton Size 780 * 130 * 510 mm
Oil cooler Φ 19 * 300
Transmission AT
Thickness 16 / 26 mm
Core Size 350 * 708 * 16 / 26 mm
Tank Size 48 / 48 * 736 mm
DPI 2451
Core Material Aluminum
Tank Material Plastic

More Information

KJ-18001-PA16 LIANA/AERIO'01-04 PA16/AT
KJ-18001-PA26 LIANA/AERIO'01-04 PA26/AT
KJ-18002-PA16 LIANA/AERIO'01-04 PA16/MT
KJ-18002-PA26 LIANA/AERIO'01-04 PA26/MT
KJ-18003A-PA16 LIANA/AERIO'02-07 PA16/AT
KJ-18003A-PA26 LIANA/AERIO'02-07 PA26/AT
KJ-18004A-PA16 LIANA/AERIO'02-07 PA16/MT
KJ-18004A-PA26 LIANA/AERIO'02-07 PA26/MT

Question & Answer

20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck 8. Side Plate 15. KINGA Logo
2. Top Header Plate 9. Core Height 16. Bottom Header Plate
3. Inlet Pipe 10. Fin 17. Water switch
4. Top Tank 11. Tube 18. Bottom Tank
5. Top Mounting Pins 12. Core Width 19. Oil Cooler
6. Fan Mount 13. Core Thickness 20. Outlet Pipe
7. Overflow Pipe 14. Clip


AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20

Packing

AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20

Packaging design according to customer requirements.

NOTICE

1. Compare your radiator to the picture below

AERIO ' 2002 , 2005 , 2006 , 2007 suzuki liana radiator 17700-54G20

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
