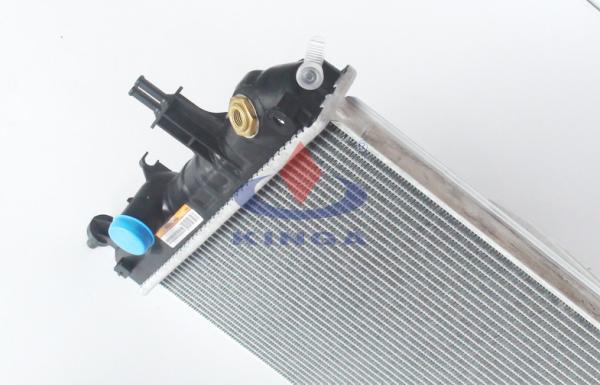

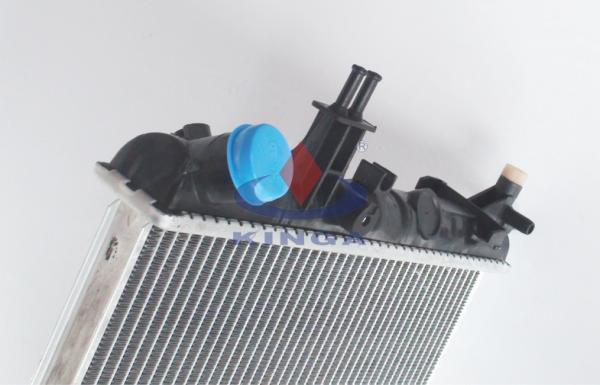

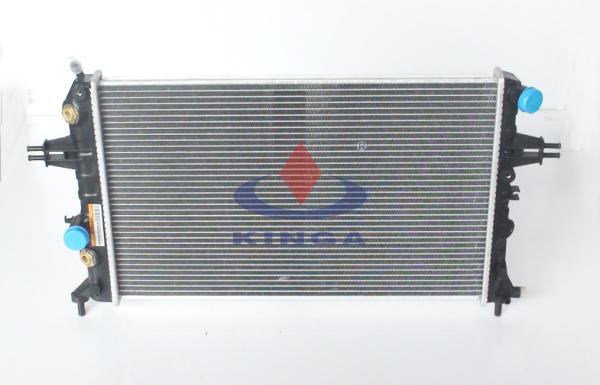

Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
Specifications
Place of Origin :
MADE IN CHINA
Brand Name :
KINGA
Certification :
ISO / TS 16949
Model Number :
KJ-42017-PA16 / 26 / 32 / 36
MOQ :
30PCS
Price :
Negotiation
Packaging Details :
Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time :
45 Days
Payment Terms :
T/T L/C
Supply Ability :
600,000 PCS / Year
Price Terms :
FOB ShenZhen / GuangZhou
Description

Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness

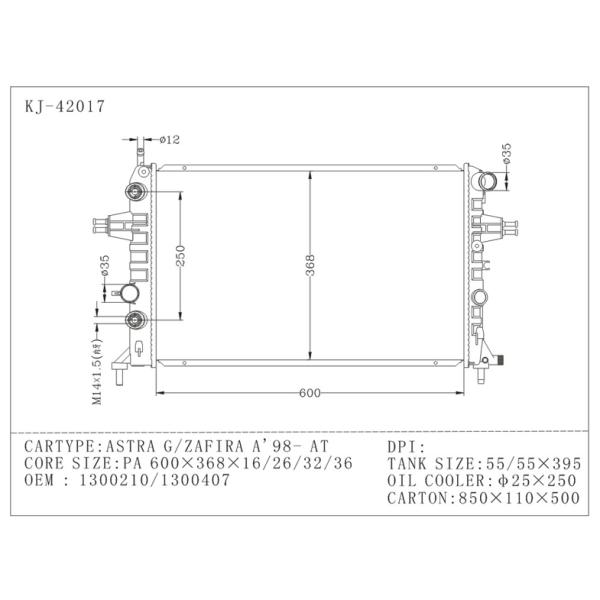

Item Specifications

Manufacturer Part Number KJ-42017
OEM 1300210 / 1300407
Car Type Astra G / Zafira A 1998 AT
Carton Size 85 * 11 * 500 mm
Oil cooler Φ 25 * 250
Transmission AT
Thickness 16 / 26 / 32 / 36 mm
Core Size 600 * 368 * 16 / 26 / 32 / 36 mm
Tank Size 55 / 55 * 395 mm
Core Material Aluminum
Tank Material Plastic



More Information

KJ-42017-PA16 ASTRA G/ZAFIRA A'98 PA16/AT
KJ-42017-PA26 ASTRA G/ZAFIRA A'98 PA26/AT
KJ-42017-PA32 ASTRA G/ZAFIRA A'98 PA32/AT
KJ-42017-PA36 ASTRA G/ZAFIRA A'98 PA36/AT
KJ-42018-PA16 ASTRA G/ZAFIRA A'98 PA16/MT
KJ-42018-PA22 ASTRA G/ZAFIRA A'98 PA22/MT
KJ-42018-PA26 ASTRA G/ZAFIRA A'98 PA26/MT
KJ-42018-PA32 ASTRA G/ZAFIRA A'98 PA32/MT
KJ-42018-PA36 ASTRA G/ZAFIRA A'98 PA36/MT
KJ-42019-PA16 ASTRA G/ZAFIRA A'98 PA16/AT
KJ-42019-PA26 ASTRA G/ZAFIRA A'98 PA26/AT
KJ-42019-PA32 ASTRA G/ZAFIRA A'98 PA32/AT
KJ-42019-PA36 ASTRA G/ZAFIRA A'98 PA36/AT
KJ-42020-PA16 ASTRA G/ZAFIRA A'98 PA16/MT
KJ-42020-PA26 ASTRA G/ZAFIRA A'98 PA26/MT
KJ-42020-PA32 ASTRA G/ZAFIRA A'98 PA32/MT
KJ-42020-PA36 ASTRA G/ZAFIRA A'98 PA36/MT



Question & Answer

20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months


Structure Chart

Brazed Radiator Structure
1. Filler Neck 8. Side Plate 15. KINGA Logo
2. Top Header Plate 9. Core Height 16. Bottom Header Plate
3. Inlet Pipe 10. Fin 17. Water switch
4. Top Tank 11. Tube 18. Bottom Tank
5. Top Mounting Pins 12. Core Width 19. Oil Cooler
6. Fan Mount 13. Core Thickness 20. Outlet Pipe
7. Overflow Pipe 14. Clip

Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness

Packing

Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness

Packaging design according to customer requirements.


NOTICE

1. Compare your radiator to the picture below
Custom Opel Astra G Radiator Of Autoparts small car radiator 16 / 26 / 32 / 36 mm Thickness
2. Flush the entire cooling system of the vehicle.
3. Use the astm-approved antifreeze and distilled or de-ionized water.
