Specifications
Place of Origin :
China
Brand Name :
Kinga
Certification :
ISO / TS16949
Model Number :
KJ-12111 / 1640011580 / 1640011581 / 1640015590
MOQ :
30PCS
Price :
Negotiation
Delivery Time :
40 DAYS
Payment Terms :
T/T L/C
Supply Ability :
600,000 PCS / Year
Packaging Details :
Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Price terms :
FOB ShenZhen / GuangZhou
Description

1640011580 / 1640011581 / 1640015590 , car toyota carina radiator 1992 , 1993 , 1994 AT 190

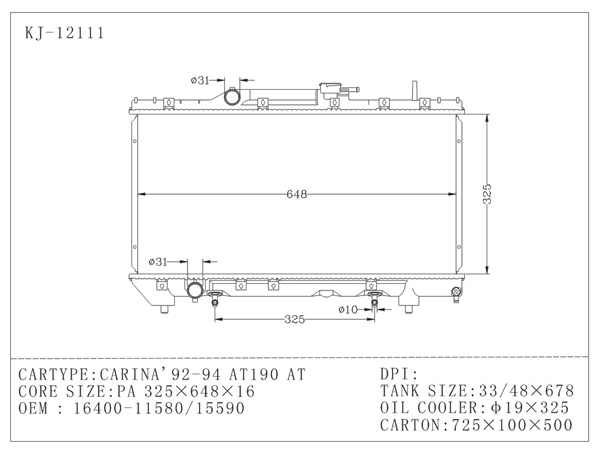

Item Specifications

Manufacturer Part Number KJ-12111
OEM 1640011580 / 1640011581 / 1640015590
Car Type TOYOTA CARINA 1992 , 1993 , 1994 AT 190
Tank Material Plastic
Core Material Aluminum
Transmission AT
Thickness 16mm
Carton Size 725×100×500mm
Core Size 325×648×16mm
Tank Size 33/48*678mm
Engine Oil Cooler: φ19×325mm

More Information

KJ-12111-PA16 CARINA'92-94 ST190 PA16/AT
KJ-12112-PA16 CARINA'92-94 ST190 PA16/MT
KJ-12113-PA16 CARINA'92-94 AT190 PA16/AT
KJ-12113-PA26 CARINA'92-94 AT190 PA26/AT
KJ-12114-PA16 CARINA'92-94 AT190 PA16/MT
KJ-12114-PA26 CARINA'92-94 AT190 PA26/MT


Question & Answer

20ft container about 500pcs
40HQ container about 1300pcs

Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck 8. Side Plate 15. KINGA Logo
2. Top Header Plate 9. Core Height 16. Bottom Header Plate
3. Inlet Pipe 10. Fin 17. Water switch
4. Top Tank 11. Tube 18. Bottom Tank
5. Top Mounting Pins 12. Core Width 19. Oil Cooler
6. Fan Mount 13. Core Thickness 20. Outlet Pipe
7. Overflow Pipe 14. Clip

1640011580 / 1640011581 / 1640015590 , car toyota carina radiator 1992 , 1993 , 1994 AT 190

Packing

1640011580 / 1640011581 / 1640015590 , car toyota carina radiator 1992 , 1993 , 1994 AT 190

Packaging design according to customer requirements.

NOTICE

1.Compare your radiator to the picture above

1640011580 / 1640011581 / 1640015590 , car toyota carina radiator 1992 , 1993 , 1994 AT 190

2.Flushed the entire cooling system of the vehicle.

3.Use the ASTM-approved antifreeze and Distilled or De-ionized water.
