Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280
Specifications
Place of Origin :
MADE IN CHINA
Brand Name :
KINGA
Certification :
ISO / TS 16949
Model Number :
KJ - 12037 - PA16 / 26
MOQ :
30PCS / Item
Price :
Negotiation
Packaging Details :
Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time :
45 Days
Payment Terms :
T/T L/C
Supply Ability :
600,000 PCS / Year
Car Type :
CAMRY 2003 , 2004 , 2005 , 2006 ACV30 AT
AT / MT :
AT
Oil cooler :
Φ 22 * 375 mm
Core Size :
400 * 728 * 16 / 26 mm
Tank Size :
48 / 48 * 756 mm
Material :
Aluminum
OEM :
16400 - 28280
DPI :
2437
Carton Size :
800 * 125 * 565 mm
P-lace of origin :
Guangzhou China
Description

Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400-28280

Item Specifications

Manufacturer Part Number KJ-12037
OEM 16400 - 28280
Car Type CAMRY 2003 , 2004 , 2005 , 2006 ACV30 AT
Carton Size 800 * 125 * 565 mm
Oil cooler Φ 22 * 375
Transmission AT
Thickness 16 / 26 mm
Core Size 400 * 728 * 16 / 26 mm
Tank Size 48 / 48 * 756 mm
DPI 2437
Core Material Aluminum
Tank Material Plastic

Reason for choosing us

High-speed Production :

About 2000pcs per day , we can garantee high - efficiency production capability .

Work Team :

More than 400 workers , including a professional technical team

Professional Factory :

Specializing in manufacturing heat transfer system for over 10 years .

Rapid Response :

We will reply within 24 hours after receive your letter.

Excellent quality :

Strict quality control through our quality control team and test machines .

Delivery :

Exact Delivery Time can be guaranteed after having confirmation with you .

More Information

KJ-12035A-PA16 CAMRY'03 ACV30 2.4 PA16/AT
KJ-12036A-PA16 CAMRY'03 ACV30 2.4 PA16/MT
KJ-12037-PA16 CAMRY'03 ACV30 2.4 PA16/AT
KJ-12037-PA26 CAMRY'03 ACV30 2.4 PA26/AT
KJ-12038-PA16 CAMRY'03 ACV30 2.4 PA16/MT
KJ-12038-PA26 CAMRY'03 ACV30 2.4 PA26/MT

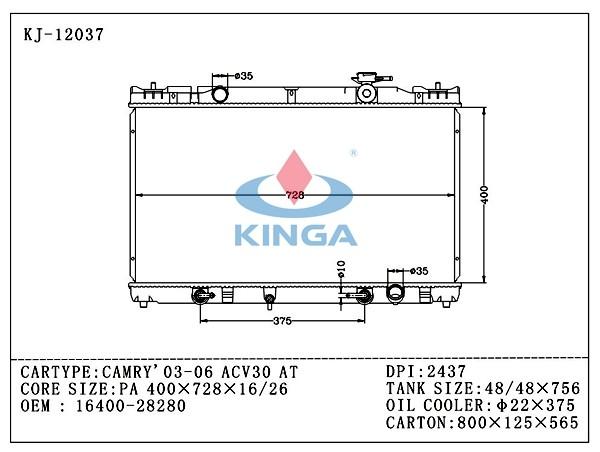

Structure Chart

Brazed Radiator Structure
1. Filler Neck 8. Side Plate 15. KINGA Logo
2. Top Header Plate 9. Core Height 16. Bottom Header Plate
3. Inlet Pipe 10. Fin 17. Water switch
4. Top Tank 11. Tube 18. Bottom Tank
5. Top Mounting Pins 12. Core Width 19. Oil Cooler
6. Fan Mount 13. Core Thickness 20. Outlet Pipe
7. Overflow Pipe 14. Clip


Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280

Packing

Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280

Package design according to customer requirements.

NOTICE

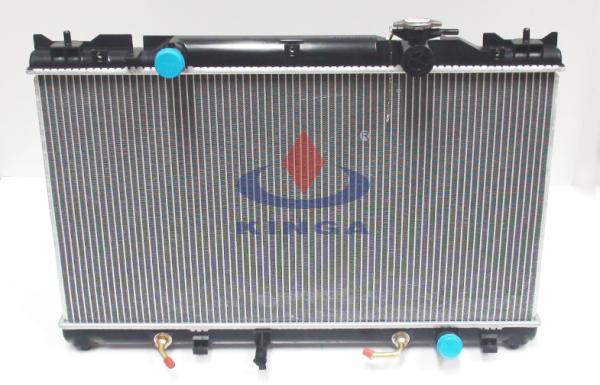

1. Compare your radiator to the picture below

Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280Vehicle Radiator For Aluminum Toyota Camry 2003 / 2006 ACV30 AT OEM 16400 - 28280

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.

More information about Kinga

Company name : Guangzhou Kinga Auto Parts Industry Manufacture Co.,Ltd

Factory address : Guangcong Road No.18 Conghua economic department area

Export department Tel : 86 - 20 - 87815083

Contact Person : Rachel Xu

E-mail : kj025@kj1688.com

Tel : 86-20-87815083
