ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle
ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle
ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle
ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle
ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle
ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle
ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle
ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle
Specifications
Place of Origin :
MADE IN CHINA
Brand Name :
KINGA
Certification :
ISO / TS 16949
Model Number :
KJ-12390-PA16 / PA22
MOQ :
30 PCS
Price :
Negotiation
Packaging Details :
Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time :
45 Days
Payment Terms :
T/T L/C
Supply Ability :
600,000 PCS / Year
Price Terms :
FOB ShenZhen / GuangZhou
Description

ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle

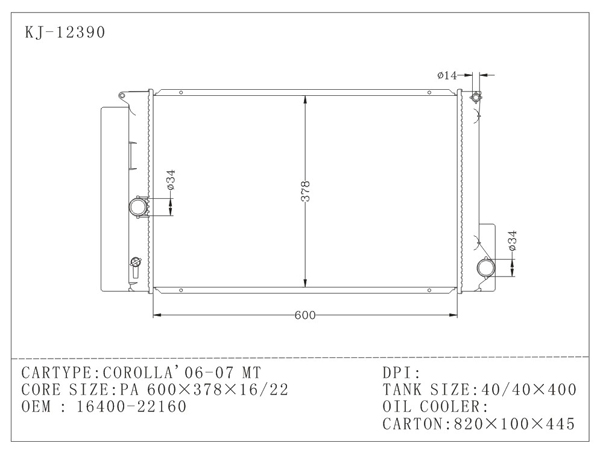

Item Specifications

Core Size Aluminum
Manufacturer Part Number KJ-12390
OEM 16400-22160
Car Type COROLLA ZRE152 2006 , 2007
Carton Size 820 * 100 * 445 mm
Thickness 16 mm
Core Size 600 * 378 * 16 / 22 mm
Tank Size 40 / 40 * 400 mm
Tank Material Plastic
Transmission MT

More Information

KJ-12390-PA16 COROLLAZRE152'06-07 PA16/MT
KJ-12390-PA22 COROLLAZRE152'06-07 PA22/MT

Question & Answer

20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck 8. Side Plate 15. KINGA Logo
2. Top Header Plate 9. Core Height 16. Bottom Header Plate
3. Inlet Pipe 10. Fin 17. Water switch
4. Top Tank 11. Tube 18. Bottom Tank
5. Top Mounting Pins 12. Core Width 19. Oil Cooler
6. Fan Mount 13. Core Thickness 20. Outlet Pipe
7. Overflow Pipe 14. Clip


ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle

Packing

ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle

Packaging design according to customer requirements.

NOTICE

1. Compare your radiator to the picture below

ZRE152 2006 , 2007 toyota corolla radiator for Japanese Vehicle

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
