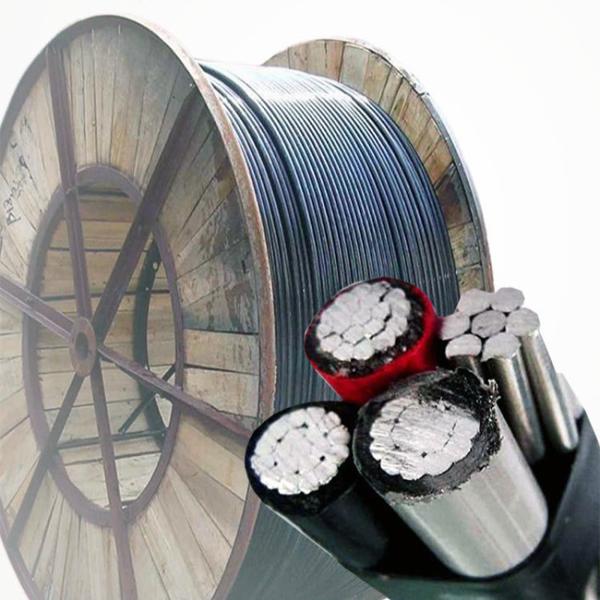

0.6/1kv Aerial Bundled 4 Core Abc Cable Aluminum Alloy 1350-H19 Conductor
0.6/1kv Aerial Bundled 4 Core Abc Cable Aluminum Alloy 1350-H19 Conductor
Specifications
Brand Name :
Sanwu
Model Number :
ABC cable
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
Treated wooden drum
Name :
0.6/1kv Aerial Bundled Cable
Material :
Aluminum Alloy 1350-H19
Cores :
1,2,3,4,3+1,
Carbon content :
2-3%
Conductor :
stranded
Insulation :
Xlpe Pvc Insulated
Description

0.6/1kv Aerial Bundled Cable Aluminum Alloy 1350-H19 Conductor

Construction

Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.

Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:

Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded

Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded

Aluminum alloy 6201-T81, concentric-lay-stranded
Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)

Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.

Standards / Testing Specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric- Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced(ACSR).
• Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-4

TECHNICAL PARAMETERS:

Code Name Phase Conductor Bare Neutral Approx.Weight Code Name Phase Conductor Bare Neutral Approx. Weight
Size Stranding Insulation Thickness Size Stranding XLPE PE Size Stranding Insulation Thickness Size Stranding XLPE PE
AWG - mil AWG - lbs/1000ft AWG - mil AWG - lbs/1000ft
6201 Alloy Neutral Messenger AAC Neutral Messenger
Bay 6 Solid 45 6 7 145 140.0 Clydesdale 4 Solid 45 4 7 208 201.8
French Coach 6 7/w 45 6 7 155 144.3 Pinto 4 7/w 45 4 7 223 207.9
German Coach 4 Solid 45 4 7 214 208.3 Mustang 2 7/w 45 2 7 333 312.6
Arabian 4 7/w 45 4 7 229 214.4 Criollo 1/0 19/w 60 1/0 7 529 504.5
Belgian 2 7/w 45 2 7 344 323.1 Percheron 2/0 19/w 60 2/0 7 649 620.5
Shetland 1/0 19/w 60 1/0 7 546 521.1 Hanoverian 3/0 19/w 60 3/0 19 799 765.6
Thoroughbred 2/0 19/w 60 2/0 7 670 641.5 Oldenburg 4/0 19/w 60 4/0 19 986 946.7
Trotter 3/0 19/w 60 3/0 7 825 791.8 Lippizaner 336.4 19/w 60 336.4 19 1,546 1,519.2
Walking 4/0 19/w 60 4/0 7 1019 979.7
ACSR Neutral Messenger
Morochuca 6 Solid 45 6 6/1 152 147.4 Grullo 2/0 19/w 60 2/0 6/1 707 678.7
Chola 6 7/w 45 6 6/1 162 151.7 Suffolk 3/0 19/w 60 3/0 6/1 872 838.9
Morgan 4 Solid 45 4 6/1 226 220 Appaloosa 4/0 19/w 60 4/0 6/1 1079 1039.2
Hackney 4 7/w 45 4 6/1 241 226.1 Bronco 336.4 19/w 60 336.4 18/1 1613 1568.2
Palomino 2 7/w 45 2 6/1 362 342.6 Gelding 336.4 19/w 60 4/0 6/1 1548 1494.3
Costena 1/0 19/w 60 1/0 6/1 575 550.6
