High Voltage HV AAC Aluminum Conductors For Power Transmission
High Voltage HV AAC Aluminum Conductors For Power Transmission
Specifications
Brand Name :
Sanwu
Model Number :
AAC
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer's request
Name :
AAC Aluminum Conductors
Voltage :
HV
Application :
Power Transmission
Standard :
ASTM,BS,DIN,AS/NZS,IEC, CSA
Packing :
Wooden drum
MOQ :
10KM
Type of Conductor: :
Stranded
Description

High Voltage HV AAC Aluminum Conductors For Power Transmission

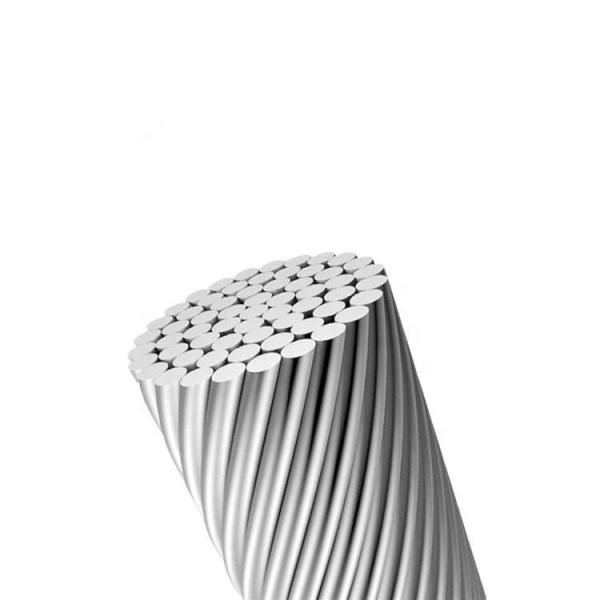

AAC Aluminum Conductors are made up of concentric-lay-stranded aluminium wires only.

The conductor may be made up of 7, 19, 37, 61 or more wires in 1, 2, 3, 4 or more layers arounda central wire. Each successive layer shall have six more wires than the layer immediately beneath.For a given crosssectional area, the conductor becomes more flexible as the number of wires is increased(with a corresponding decrease in size of each wire).

High Voltage HV AAC Aluminum Conductors For Power Transmission

High Voltage HV AAC Aluminum Conductors For Power Transmission

AAC Aluminum Conductors Specification

Nominal

area

 Stranding &wire diameter Approx Overall diameter Breaking Load DC Resistance at 20

Approx.

Weight
mm mm N Ω/km Kg/km
16 7/1.70 5.10 2840 1.802 43.5
25 7/2.15 6.45 4355 1.127 69.6
35 7/2.50 7.50 5760 0.8332 94.1
50 7/3.00 9.00 7930 0.5786 135..5
70 7/3.60 10.80 10950 0.4018 195.1
95 7/4.16 12.48 14450 0.3009 260.5
120 19/2.85 14.25 19420 0.2373 333.5
150 19/3.15 15.75 23310 0.1943 407.4
185 19/3.50 17.5 28440 0.1574 503.0
210 19/3.75 18.75 32260 0.1371 577.4
240 19/4.00 20.00 36260 0.1205 656.9
300 37/3.20 22.40 46850 0.09689 820.4
400 37/3.70 25.90 61150 0.07247 1097
500 37/4.16 29.12 76370 0.05733 1387
630 61/3.63 32.67 91940 0.04577 1744
800 61/4.10 36.90 115900 0.03588 2225

High Voltage HV AAC Aluminum Conductors For Power Transmission

High Voltage HV AAC Aluminum Conductors For Power Transmission
