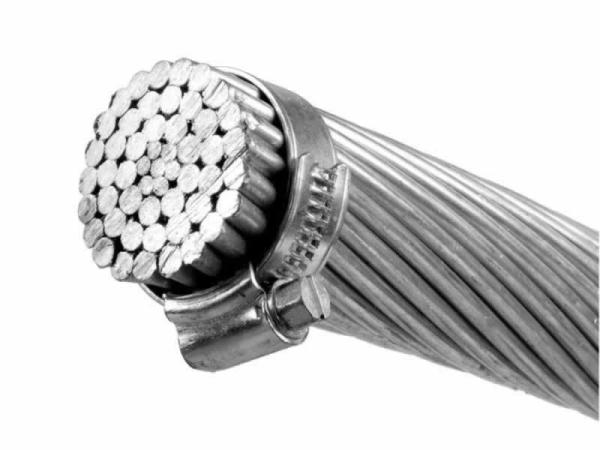

ASTM BS DIN Aac All Aluminum Conductor For Spans On Wood Poles
ASTM BS DIN Aac All Aluminum Conductor For Spans On Wood Poles
Specifications
Brand Name :
Sanwu
Model Number :
All Aluminium Conductor
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer's request
Name :
Aac All Aluminum Conductor
Standard :
ASTM BS DIN
Packing :
Spans On Wood Poles
Supplier by Area :
Asia,South America,South Africa
MOQ :
10KM
Sample :
Free
Description

ASTM BS DIN Aac All Aluminum Conductor For Spans On Wood Poles

When high tensile strength is not needed, this wire can be used in spans on wood poles, transmission towers, and other structures. Extra high voltage (EHV) transmission lines and sub-service spans at distribution or usage voltages on private property are examples of applications.

Because it is lighter than other bare overhead conductors, AAC (all aluminum conductor) is the most cost-effective option. It makes using simpler fittings and conducting installation tasks easier. Because of its uniform design, the wire resists corrosion.

Service Performance

(1). The permissible long-time operating temperature for aerial conductors is 70oC.

(2). Under the circumstance that rare climate occurs and high ice coverage rate, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

All Aluminium Conductor Specification

Nominal

area

 Stranding &wire diameter Approx Overall diameter Breaking Load DC Resistance at 20

Approx.

Weight
mm mm N Ω/km Kg/km
16 7/1.70 5.10 2840 1.802 43.5
25 7/2.15 6.45 4355 1.127 69.6
35 7/2.50 7.50 5760 0.8332 94.1
50 7/3.00 9.00 7930 0.5786 135..5
70 7/3.60 10.80 10950 0.4018 195.1
95 7/4.16 12.48 14450 0.3009 260.5
120 19/2.85 14.25 19420 0.2373 333.5
150 19/3.15 15.75 23310 0.1943 407.4
185 19/3.50 17.5 28440 0.1574 503.0
210 19/3.75 18.75 32260 0.1371 577.4
240 19/4.00 20.00 36260 0.1205 656.9
300 37/3.20 22.40 46850 0.09689 820.4
400 37/3.70 25.90 61150 0.07247 1097
500 37/4.16 29.12 76370 0.05733 1387
630 61/3.63 32.67 91940 0.04577 1744
800 61/4.10 36.90 115900 0.03588 2225

ASTM BS DIN Aac All Aluminum Conductor For Spans On Wood Poles

ASTM BS DIN Aac All Aluminum Conductor For Spans On Wood Poles
