Conductor AAC AAAC ACSR types of Overhead Transmission line Bare Aluminium Conductors

All-Aluminum Conductor AAC.

All-Aluminium Alloy Conductor AAAC.

Aluminium Conductor Steel Supported Conductor ACSR.

AAC GNAT

STANDARDS

AAC bare conductor meets or exceeds the following BS standards:

l BS 215-1 Aluminum Conductors, Concentric-Lay-Stranded.

Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC), BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN 50182, BS EN 50183(AAAC), GB/T 1179-2008. Also we accept the OEM and the new design cable as customers.

Specification

1. Aluminum conductor

2. Concentric-Lay-Stranded

3. Coated Steel Reinforced

4. ASTM,BS,CSA,DIN,IEC etc. Standards

Following the American Standards ( ASTM )

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes

B-231 Aluminum Conductors, Concentric-Lay-Stranded

B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)

B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

CONSTRUCTION

Aluminum 1350-H19 wires, concentrically stranded.

Application

The bare conductor:AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electricalpower transmission and distribution lines with various grade voltage.

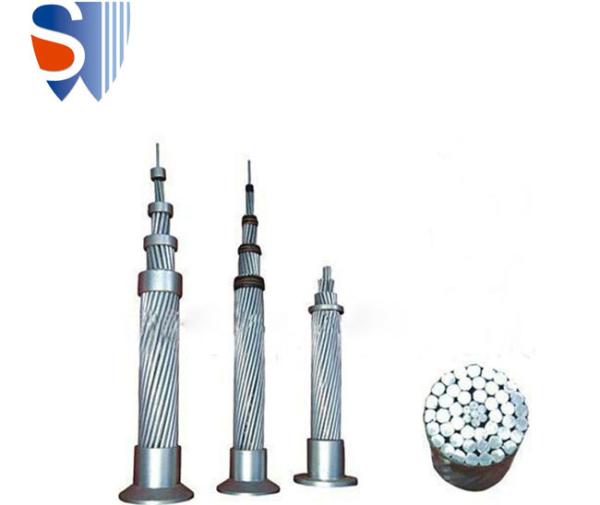

Construction: Bare aluminum alloy 1350-H19 wires, concentrically stranded around a Class A galvanized coated steel core wire. ACSR consists of a galvanized steel core of 1 wire, 7 wires, 19 wires etc. surrounded by concentric layers of aluminum wire.
