35KV ACAR Cable
35KV ACAR Cable
35KV ACAR Cable
35KV ACAR Cable
35KV ACAR Cable
35KV ACAR Cable
35KV ACAR Cable
35KV ACAR Cable
Specifications
Brand Name :
Sanwu
Model Number :
ACAR
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
USD 0.2-20 per meter
Delivery Time :
1-15days
Packaging Details :
7-15 working days
Conductor :
Aluminum
Core :
Aluminum alloy
Color :
Silver
Insulation :
Bare
Rated Voltage :
0.6-1kv
Application :
Aerial power distribution lines
Service Life :
70 years
Warranty :
1 year
Supply Ability :
200 tons per day
Description

0.6-1kv Bare Aluminum Conductor Alloy Reinforced Overhead Distribution Line

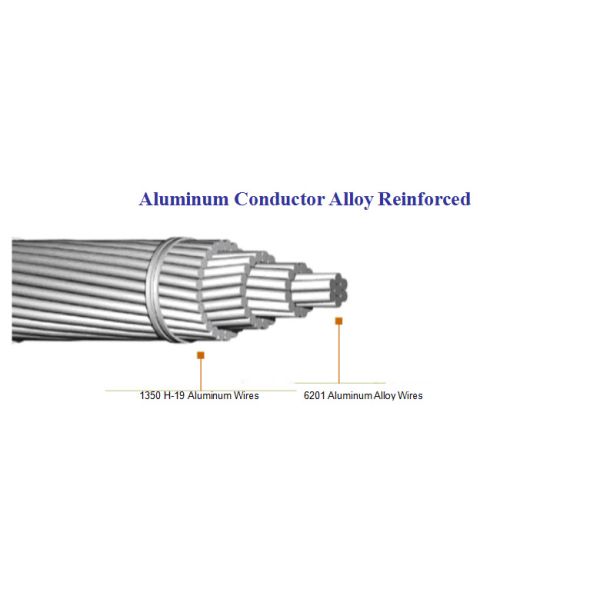

Product Name Aluminum Conductor Alloy Reinforced (ACAR)
Conductor Aluminum/Copper
Construction Aluminum Stranded & Aluminum Alloy Reinforce
Colors Assorted upon request
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

ACAR conductors application:

Conductor have been widely used in power transmission lines with various voltage levels, they have good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Producing Process:

35KV ACAR Cable

Part of ACAR(6201) conductors of ASTM sizes.

Size Kcmil Stranding No.& Dia.(In.) Cross Sectional Area(Square In.) Nominal Conductor Dia. (In.)

Nominal weight

(Lbs/1000FT)

 Rated Strength ( Lbs)
1350 6201 1350 6201 Total
503.6 15*0.1628 4*0.1628 0.3122 0.0833 0.3955 0.814 473 10500
587.2 15*0.1758 4*0.1758 0.3644 0.0971 0.4612 0.879 551 12200
649.5 18*0.1325 19*0.1325 0.2482 0.2620 0.5102 0.927 608 16600
653.1 12*0.1854 7*0.1854 0.3240 0.1890 0.5130 0.927 612 15400
739.8 18*0.1414 19*0.1414 0.2827 0.2983 0.5810 0.990 693 18800
853.7 30*0.1519 7*0.1519 0.5437 0.1268 0.6705 1.063 801 17500
853.7 24*0.1519 13*0.1519 0.4349 0.2356 0.6705 1.063 800 19300
927.2 24*0.1583 13*0.1583 0.4723 0.2559 0.7282 1.108 869 20900

Standards:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers’ requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.

35KV ACAR Cable

Packaging Details
Wooden package size:

0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2. 2*2.2*1.8m
Or suitable meters according to your needs

Delivery Time

G Generally it is 5-10 days if the goods are in stock, or it is 15.

35KV ACAR Cable
