Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable
Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable
Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable
Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable
Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable
Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable
Specifications
Brand Name :
Sanwu
Model Number :
Low Voltage Aerial Bundle Cable
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
exported wooden drum
Brand name :
Sanwu
Conductor material :
Al, Al alloy
Insulation material :
XLPE/PE/PVC
Delivey time :
2-6weeks
Delivery port :
Qingdao
Name :
Aerial Bundled Cable
Description

Low Voltage 0.6/1kv XLPE/PVC Insulated Aerial Bundle Specification Multi-Core Wire Overhead ABC Cable

Low-Maintenance Power Distribution with Self-Supporting ABC
Say goodbye to frequent line maintenance with our innovative self-supporting aerial bundled cables. The integrated design combines power conductors and supporting messenger in a single, cohesive unit that resists the common issues plaguing traditional overhead systems. Our cables maintain their performance characteristics over decades with minimal intervention, significantly reducing your operational costs. The special insulation formulation resists tracking and erosion, even in polluted environments. With our ABC solution, you'll spend less on vegetation management, fault repairs, and system inspections while enjoying superior reliability.

Low Voltage Aerial Bundled Cable For Overhead Line Power

Our Low Voltage Aerial Bundled Cable is manufactured in accordance with a range of national standards - British standard BS7870, French standard NF C33 209, Australasian standard AS/NZS 3560 Part 1, and IEC standards IEC 60502-1, TNB Specification, and HD 626 S1.

APPLICATION

The power cables with cross-linked polyethylene (XLPE) insulation for overhead lines are designed for electrical installations with alternating power networks with a nominal voltage of Uo/U 0.6/1 kV or in direct power networks with maximum voltage according to land 0.9 KV.

Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable

DIMENSIONS

Number of conductors and nominal cross section Thickness of insulation M/N/R Diamete r of bundle approx. Allowed current in power supply networks Allowed current in distribution networks Аl/R
Mass of Аl cores approx. Cable weight approx.
n х mm2 mm mm А А kg/km kg/km
walls/air/facades
2x16 1.2 15 - 72 / 93 / 83 91 125
2x25 1.4 18 - 95 / 122 / 111 142 165
4x16 1.2 18 - 63 / 83 / 75 183 260
4x25 1.4 22 - 83 / 111 / 99 285 395
3x25+54.6Alm 1.4/1.6 30 112 - 369 505
3x25+54.6Alm+Kx16 1.4/1.6/1.2 30 112 / 83 - 460 635
3x35+54.6Alm 1.6/1.6 33 138 - 455 615
3x35+54.6Alm+Kx16 1.6/1.6/1.4 33 138 / 83 - 546 745
3x50+54.6Alm 1.6/1.6 36 168 - 583 725
3x50+54.6Alm+Kx16 1.6/1.6/1.2 36 168 / 93 - 674 860
3x50+54.6Alm+Kx25 1.6/1.6/1.4 36 168 / 111 - 725 925
3x70+54.6Alm 1.8/1.6 37 213 - 754 950
3x70+54.6Alm+Kx16 1.8/1.6/1.2 40 213 / 83 - 845 1080
3x70+54.6Alm+Kx25 1.8/1.6/1.4 40 213 / 111 - 896 1150
3x70+70Alm 1.8/1.5 41 213 - 798 984
3x70+70Alm+Kx16 1.8/1.5/1.2 41 213 / 83 - 889 1115
3x70+70Alm+Kx25 1.8/1.5/1.4 41 213 / 111 - 940 1185
3x95+54.6Alm 1.8/1.6/ 44 258 - 967 1195
3x95+54.6Alm+Kx16 1.8/1.6/1.2 44 258 / 83 - 1059 1325
3x95+54.6Alm+Kx25 1.8/1.6/1.4 44 258 / 111 - 1110 1355
3x95+70Alm 1.8/1.5 44 258 - 1011 1355
3x95+70Alm+Kx16 1.8/1.5/1.2 44 258 / 83 - 1102 1615
3x95+70Alm+Kx25 1.8/1.5/1.4 44 258 / 111 - 1154 1485
3x120+70Alm 1.8/1.5 46 300 - 1225 1445
3x120+70Alm+Kx16 1.8/1.5/1.2 46 300 / 83 - 4828 1575
3x120+70Alm+Kx25 1.8/1.5/1.4 46 300 /111 - 1368 1610
3x120+95Alm 1.8/1.6 47 300 - 1296 1535
3x120+95Alm+Kx16 1.8/1.6/1.2 47 300 / 83 - 1387 1660
3x120+95Alm+Kx25 1.8/1.6/1.4 47 300 / 111 - 1439 1735

Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable

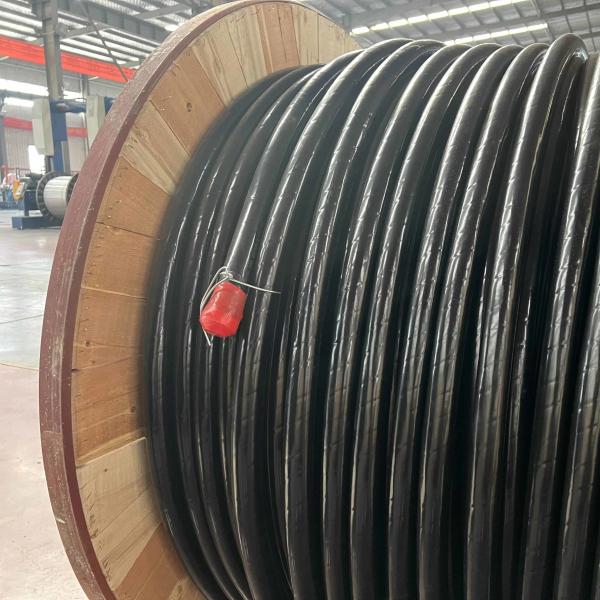

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable

Our Workshop:

Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable

Aerial Bundled Cables (ABC) are revolutionizing overhead power distribution across multiple sectors due to their safety, durability, and cost-efficiency. Designed to replace traditional bare overhead conductors, ABC systems consist of multiple insulated phase conductors bundled together with a neutral or messenger wire, offering superior performance in various challenging environments.

Customers Visit:

Low Voltage Overhead Aluminum Electrical Cable Twisted Cable Aerial Bundle Cable

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

Why Choose Our Aerial Bundled Cables?

✔ Enhanced Safety – Reduced risk of electrocution and short circuits
✔ Lower Maintenance – Resistant to weather, corrosion, and wildlife interference
✔ Cost-Effective – Long lifespan with minimal repair needs
✔ Easy Installation – Lightweight and flexible for faster deployment
✔ Customizable – Available in various configurations for different applications

Whether for urban electrification, rural expansion, industrial use, or smart grid development, our ABC cables provide a reliable, efficient, and safe power distribution solution. Contact us today to find the perfect ABC system for your project!
