Copper Pipe Water Cold Heat Sink Liquid Cooling Plate Heatsink For Solar Panel

Quick Details:

Precision Copper Pipe Heat SInk

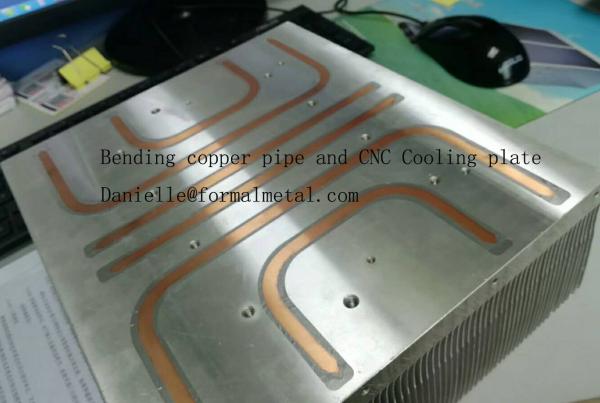

Large Image: Aluminum Fin Heat Sink with Copper Pipe
Materials: Pure Copper C1100 Strips, Purity over 99.5%
Depend on customer's requirements


Description:

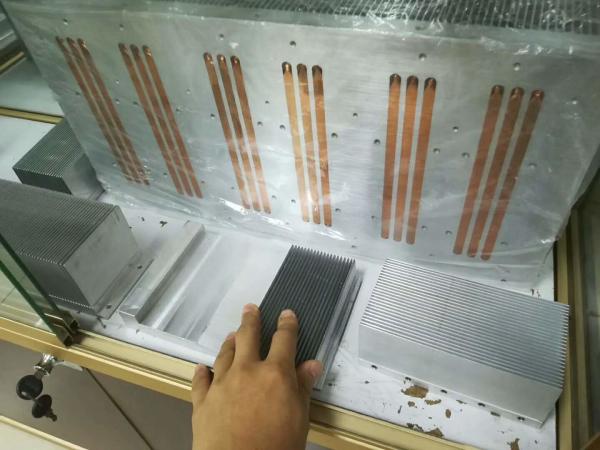

Large Image: Aluminum Fin Heat Sink with Copper Pipe
150W Big Power Copper Pipe Heat Sink
Copper Pipe Heat Sink for Projector
Heat Sink With Copper Pipe For Projector


Application: Projector, Computer, Server



Specification:

Our tubed water cold plates are cost-effective and offer good bulk heat removal for low-to-medium watt densities. Applications include IGBT modules, Lasers, Electric Vehicles, Industrial power converters, UPS, Medical appliance and so on. Water or water/glycol are the most common fluids used in liquid cooling, it can also be gasoline, oil, and refrigerant as other examples.

Copper processing:

Stamping


Automatic Tube Forming Machining



Overflow Welding/Drying Machine


Processing Technic:

1. Copper Fins: Progressive Die Stamping
2. Aluminum Board: Extrusion+ CNC Machining
3. Copper Tube Forming : Automatic Tube Bending+ Burn into Tip Ends.
4. Aluminum Board and Enclosure Nickle Plated, Copper Fin Passivate (Insulation,
Oxidation and Corrosion Resistance).
5. Assembly: Automatic Fin Wearing/Assembly, then Fixed by Overflow Soldering and
Screw/Rivet Combination.
6. Quality Check
7. Packing

How to cooperate ?

Please provide as many details as possible to aid in the design of your cold plates and submit to our email. If the heat load is not uniformly distributed, please supply a thermal map depicting the location and wattage of the heat sources

• Size: Length x Width x Height
• Heat Load, Power Dissipation: Total Watts: , Watts/Side: , Top: , Bottom:
• Coolant type:
• Flow rate:
• Inlet coolant temp:
• Maximum cold plate temperature at device mounting surface:
• Tube size:
• Annual Requirements:

Advantages:

1. Professional Research and Design Team, Strong & Automatic Equipments: Progressive Stamping, Automatic Tube Bending Machine, Automatic Fin Wearing Machining
2. Strict Quality Control in Each Process and Finish Product Quality Control
3. Short Delivery Lead Time: 15-30 Days
4. Optional For OEM or ODM
5. Comprehensive After-Sale Service, Quick Responses For Daily Communication
