Integrated driver built-in 1070 COLD FORGING aluminum balck or white COMMERCIAL LIGHT House ceiling led lights
Integrated driver built-in 1070 COLD FORGING aluminum balck or white COMMERCIAL LIGHT House ceiling led lights
Specifications
Brand Name :
LF
Model Number :
LF-T3503
Certification :
CE
Place of Origin :
China
MOQ :
50
Price :
US$26.8~28 per piece
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
30000pcs per month
Delivery Time :
7~15 working days
Packaging Details :
inner size 290*100*275mm, 18pcs/CTN, Carton size: 305*850*325, gross weight: 20.15kgs
Material :
1070 Aluminum+Reflector
Size :
Φ95*150mm
Light source :
Citizen COB
Input voltage :
AC220~240V 50/60Hz
Life span :
50000hours
Beam angle :
120 Degrees
CRI :
>80
Color temperature :
3000K (Warm), 4000K (Neutral), 6000K (Cool)
Lumen :
3000~3600LM
Power :
35W
Warranty :
3~5 years
Delivery time :
7~20 days
Driver :
adaptor with driver built-in
Emitting angles :
10° 24° 38° 60°
Certications :
CE, RoHS, EMC, LVD
Applications :
office, Residential, Indoor Lighting, shop, Hotel
Description

35W Integrated driver built-in 1070 COLD FORGING aluminum balck or white COMMERCIAL LIGHT House ceiling led lights

  • Driver built in track adaptor
  • No flicker
  • 3~5 years warranty
  • Cold forging aluminum body to make good heat dissipation

Integrated driver built-in 1070 COLD FORGING aluminum balck or white COMMERCIAL LIGHT House ceiling led lights

OPTICAL PARAMETERS: CCT:2700K, 3000K,4000K,5000K,6000K,CRI>90,R9>50/CRI>97,R9>95

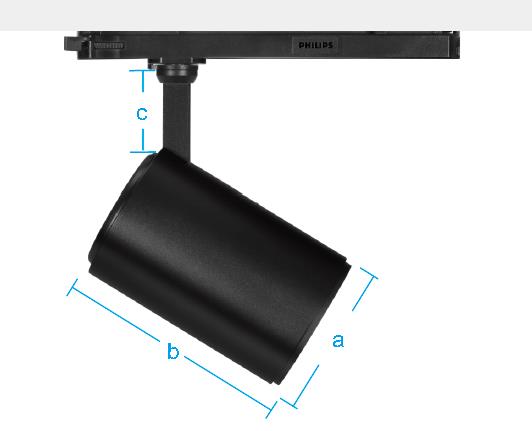

ITEM NO. POWER(W) SIZE(MM) ILLUMINATION 3000K>90 BEAM ANGLE N.W. INPUT VOLTAGE
T4503 45W a=Φ95,b=150.c=50 3800-4500lm 24°,38°,50° 1.1kg AC200-240V AC100-277V
T3503 35W a=Φ85,b=135.c=50 3000-3600lm 10°,24°,38°,60° 0.9kg
T2503 25W a=Φ75,b=125,c=50 2200-2600lm 10°,24°,38°,55° 0.7kg
T1503 15W a=Φ65,b=115,c=50 1200=1600lm 10°,24°,38°,60° 0.5kg


Flexible deisgn 3 CCT in one lamp

You could choose 3 different color temperature via dip switch, and the total power remains the same.

Integrated driver built-in 1070 COLD FORGING aluminum balck or white COMMERCIAL LIGHT House ceiling led lights

In-track type driver or Global

The driver is built into the track adapter, it not only has the mini elegant appearance lamp body, but also has the stability of independent heat dissipation of the external driver.

Flicker free & PF>0.9 and Global driver.

Integrated driver built-in 1070 COLD FORGING aluminum balck or white COMMERCIAL LIGHT House ceiling led lights

Top-level housing & heatsink


The lamp body is made of #1070 aluminium ingot by one time forming without secondary process like spl icing, riveting and soldering.

The No. ONE at heat cooling.
Cold forging aluminium (#1070): 226.w/m.k,
Profile aluminum (#6063): 180.w/m.k
Die casting aluminium (#ADC12): 98.w/m.k

Integrated driver built-in 1070 COLD FORGING aluminum balck or white COMMERCIAL LIGHT House ceiling led lights

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the delivery time?
A: Sample needs 7-15 days, mass production needs 35-40 days according to order quantity.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it ok to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Welcome to contact us!

Should you have any more questions, please feel free to contact us by email or call.

Thank you for your time. Look forward to next coversation.
