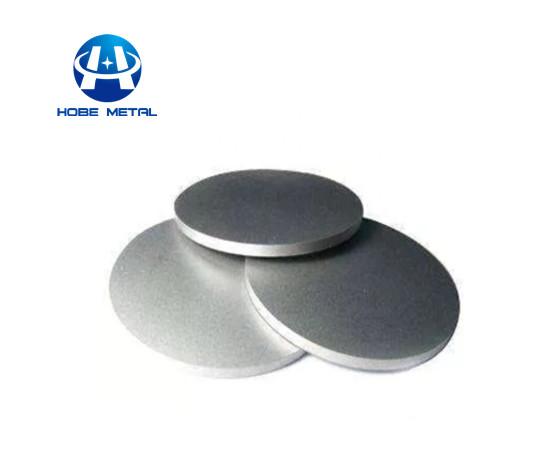

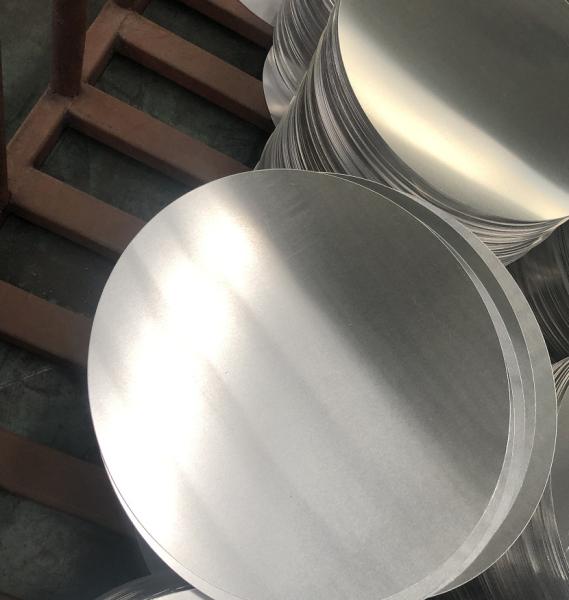

Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Specifications
Brand Name :
Hobe
Certification :
CO
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
1000Ton per Month
Delivery Time :
10-20 days
Packaging Details :
Pallet or Wooden Case
Material :
Aluminium
Alloy :
3000
Thickness :
1.2mm 2.0mm and Etc
Diameter :
4inch to 50inch
Surface :
Mill Finish
Temper :
O, H22 Etc
Description
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles



Quick Detal:

Alloy: 3000 seriers
Thickness: 0.5mm-6.0mm
Temper: O, H22, H14, H24, H16, H18, H32, H34 and Etc
Diameter: 4inch to 50inch
Quality control: We have the certificate of ISO and SGS and we have professional QC Dpat
The detail speciafication of the above products are all can customized by clients


Description:
Bakeware HO 3003 Grade Aluminum Round Plate , Deep Drawing Aluminium Circles
Henan Hobe Metal Material is a major manufacturer and supplier of aluminum circle based in China Alloy: 1000series,3000series.

Pure Aluminum Circle, like Alloy 1050, 1060, 1070, 1100 and Alloy Aluminum Circle, like Alloy 3003. Both hot treated and non-heat treated alloy can be used for aluminum
circle production.

Manufacturing Process

Aluminum Ingot/Master Alloys --- Aluminum Melting Furnace - --- Aluminum Slab --- Hot Rolling (Direct Cast) Or Cold Rolling (Cold Cast) – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery

Tolerance

Dimensions
Parameter Range Tolerance
Thickness for circles (mm) 0.71 _ 6.35 for 0.71 to 1.4 +/-0.08
for 1.41 to 2.5 +0.1, -0.13
for 2.51 to 4.0 +/-0.13
for 4.01 to 5.00 +/-0.15
for 5.01 to 6.35 +/-0.20
Thickness for ovals (mm) 1.75 _ 3.00 for 1.75 to 2.5 +0.1, -0.13
for 2.51 to 3.00 +/-0.13
Diameter (mm) 102 _ 1250 (a) sheared circles +2, -0
(b) punched circles +0.5, -0
Earing < 5% for ' O' temper
< 9% for H12, H14, H16, H18


Specification

Specification Name: 3000 series aluminum sheet
Alloy: 3003, 3004, 3005, 3105 etc.
Temper: O, H12, H22, H32, H14, H24, H26, H18 etc.
Thickness: 0.25-200mm
Width: Up to 1800mm
Length: Up to 6000mm
Surface treatment: mill finished, anodized, embossed, PVC coated
Feature Machinability: It is readily machined and is considered as having good machinability for the aluminum alloys,.
Forming: It is readily formed by either conventional cold working or hot working.
Welding: It is readily accomplished by means of conventional welding methods.
Heat Treatment: It is a non-heat treatable alloy.
Forging: It may be hot forged in the range of 950 F to 500 F.
Hot Working: The hot working range (as for forging) is 950 F to 500 F. In that range the alloy is easily hot worked.
Cold Working: It is readily cold worked by all conventional methods.
Annealing: Annealing, during or following cold working, is done at 775 F, allowing adequate time for thorough heating, followed by air cooling.
Hardening: Hardens as a result of cold working only.
Alloy Chemical Component %≤
Si Fe Cu Mn Mg Cr Ni Zn Ti others Al
single total
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.15 remainder
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 0.25 0.05 0.15 remainder
3005 0.6 0.7 0.3 1.0-1.5 0.2-0.6 0.1 0.25 0.1 0.05 0.15 remainder
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 0.4 0.1 0.05 0.15 remainder


Applications:

Chemical equipment, ductwork, and in general sheet metal work, cooking utensils, pressure vessels, builder's hardware, eyelet stock, ice cube trays, garage doors, awning slats, refrigerator panels, gas lines, gasoline tanks, heat exchangers, drawn and spun parts, and storage tanks etc.

Competitive Advantage:

1. Wide range of selection on circle’s size including customized shape and size.
2. Excellent surface quality for lighting reflectors.
3. Excellent deep drawing and spanning quality.
4. We provide heavy guage circles with thickness up to 6mm thick which is deal for cookware.
5. Anodized quality and deep drawing quality which is suitable for cookware as well.
6. Well- protected packing.
